500 Series
Load diagram
11
The diagram can be interpreted as follows:
If the load is 25 cm in front of the attachment coupling plate, the max. load of the DIESEL version is 400 kg
and the max. load of the PETROL version is 340 kg with a driver weighing 80 kg and with an extra weight
of 30 kg in the rear.
When using the telescopic boom remember that the load is extended an additional 50 cm away from the
attachment coupling plate, which means that in the case mentioned above the max. loads are reduced to
260 kg (diesel) and 170 kg (petrol).
With the load carried at low level max. loads of 650 kg and 550 kg can be transported in the above mentioned case.
Please note that the diagrams are based on the machine operating on a level even surface. Loads should be
significantly reduced when operating on gradients.
ALWAYS PUT DOWN THE LOAD BEFORE LEAVING THE MACHINE.

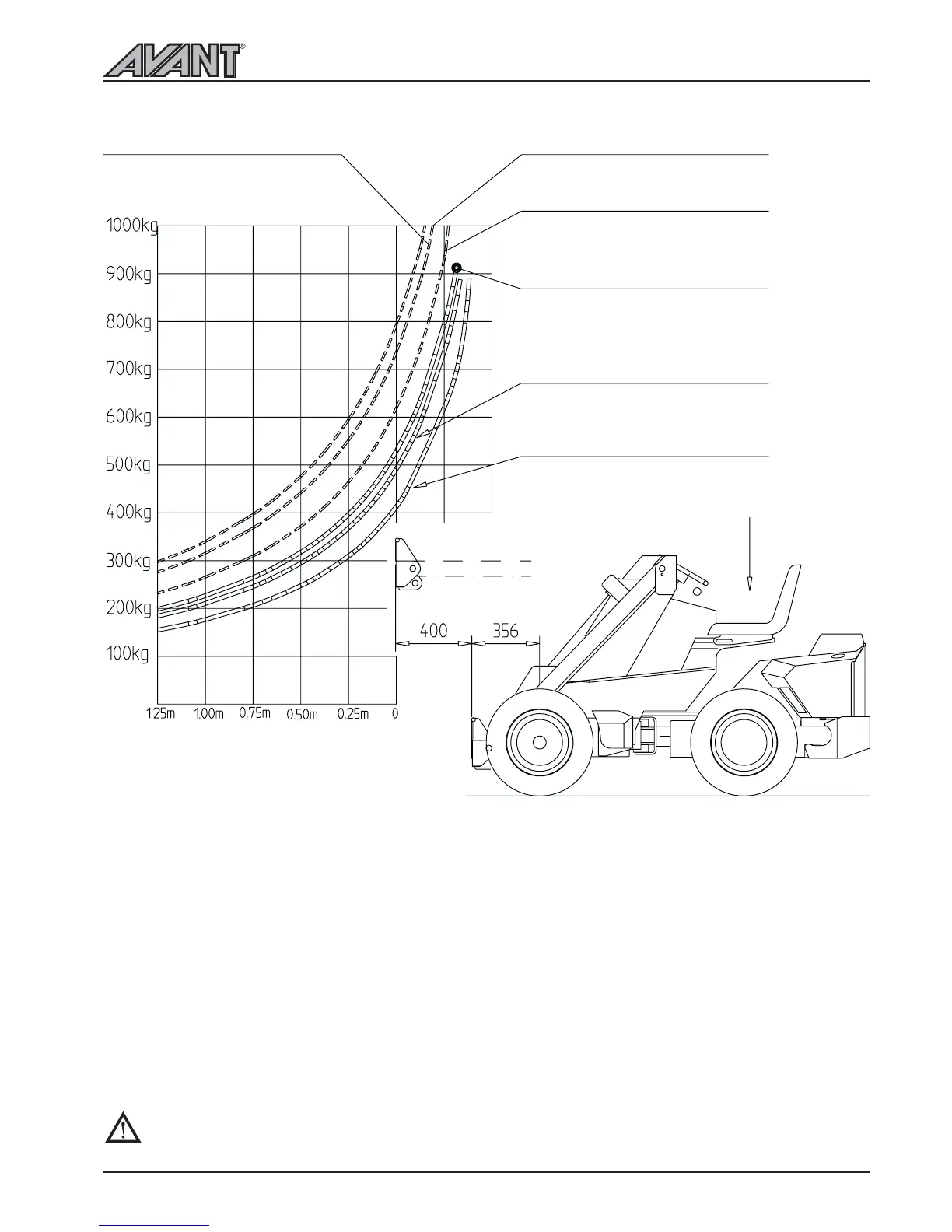

AVANT 500 series DIESEL : Load diagram
Tipping load
(80 kg driver, 30 kg extra weight)
Tipping load
(80 kg driver, no extra weight)
Tipping load
(no driver, no extra weight)
Max. load
(n=1.5 80 kg driver, 30 kg extra weight)
Max. load
(n=1.5 80 kg driver, no extra weight)
Max. load
(n=1.5 no driver, no extra weight)
