Gauges and switches on the dashboard
Ref
14 Charge indicator
15 Drive release valve switch
16 Front light switch
17 Boom floating switch
18 Seat heater switch
19 Ignition switch
20 Signal horn
21 12 V outlet (max 15 A) in cab LX/DLX, for others see
page 14.
22 Hour meter
23 Tachometer
24 Thermometer
25 Fuel level gauge
Operating instructions
Controls in the footwell

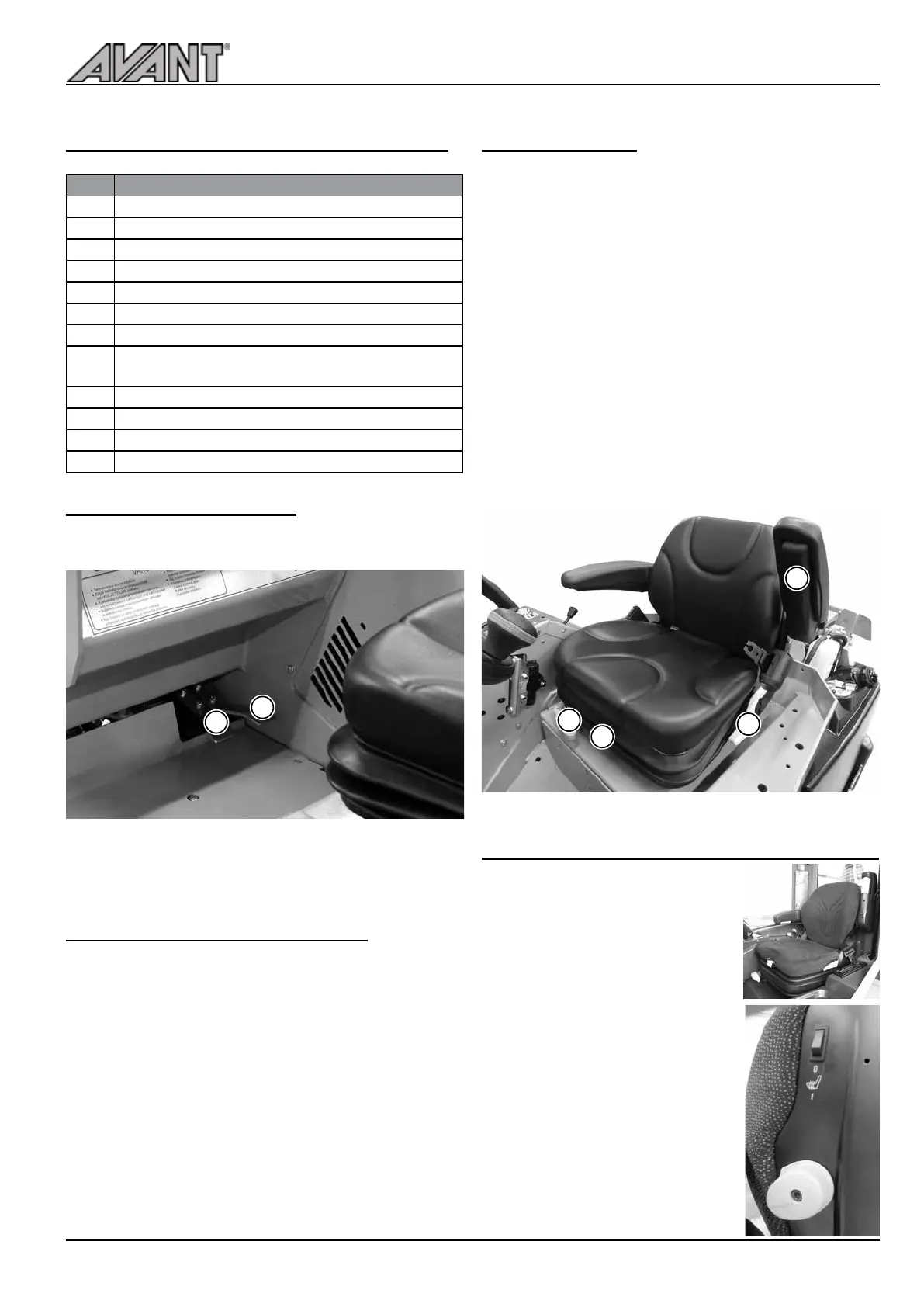

Following picture shows the controls located in the footwell
2
1
1. Drive pedal, left: drive backward
2. Drive pedal, right: drive forward
See correct operation of the drive pedals on page 22.
Suspension seat
The suspension seat is equipped with a seat belt and has
the following adjustments:
1. Suspension adjustment
• by turning the knob counterclockwise suspension
gets harder, by turning it clockwise the suspension
gets softer
2. Angle of the back rest
• the angle of the back rest can be adjusted by pulling
the lever
3. Seat position
• the distance of the seat from the steering wheel can
be adjusted with the lever which is located u n d e r
the front edge of the seat
4. Arm rest angle adjustment
• The angle of the arm rest can be adjusted by turning
the roller under the arm rest
Air suspension seat (option for cab DLX)
To adjust the air suspension seat, sit
on the seat and switch the ignition
switch to “ON”. Check the indicator
on front of the seat. Pull the handle up
or push it down, so that the indicator
points the marker in the middle.
The seat is equipped with heater.
Heater switch is located of the back
rest on the left. Below it is located
the lumbar support adjustment.
NOTICE: If the loader is equipped
with the air suspension seat, the seat
heater switch and indicator light on
the dashboard are disabled
2
1
3
4
Seat belt and seat adjustments
Always use seat belt while driving. Make sure that the
seat is properly adjusted to keep vibrations transmitted
by the seat at minimum. Long term exposure to vibrations
may cause health effects. Also, as far as possible, keep the
operating terrain in good condition to minimize vibrations
