E NTREE F RYERS SERVICE
ENTREE OPERATOR’S MANUAL #400024 PAGE 15

CHECKING AND ADJUSTING AUTO SAFETY PILOT
The pilot flame should surround the thermopile for 1/2". It must be large and sharp enough to cause the
thermopile to glow a dull red, or sufficient to hold the safety valve open.
1. Remove pilot adjustment cap

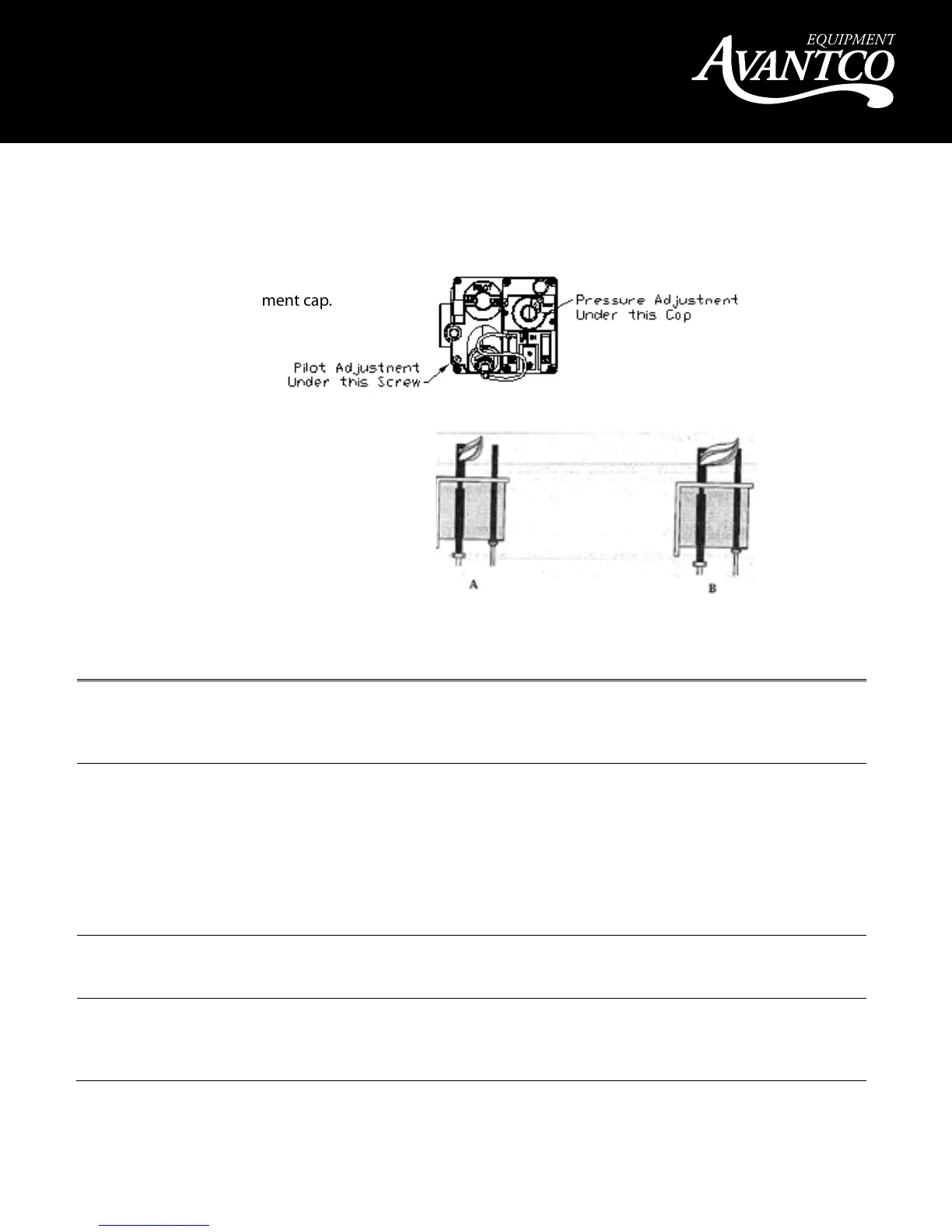

2. Adjust pilot key to provide properly
sized flame shown in diagram B.
Diagram A shows an improperly
adjusted pilot
3. Replace pilot adjustment cap.
TROUBLESHOOTING
 
























NOTE: Vibrations or shock caused by shaking or pounding baskets on top surface or by slamming door may
cause Hi-Limit Control Switch to open. If this condition persists, additional cushioning may be added to the
rubber grommets supporting this control to absorb these shocks.
CHECKING AND ADJUSTING AUTO SAFETY PILOT
The pilot ame should surround the thermopile for 1/2". It must be large and sharp enough to cause the thermopile
to glow a dull red, or sucient to hold the safety valve open.
1. Remove pilot adjustment cap.
2. Adjust pilot key to provide properly
sized ame as shown in diagram B.
Diagram A shows improperly adjusted
pilot.
3. Release pilot adjustment cap.
