COOKTOP
CONTROL PANEL

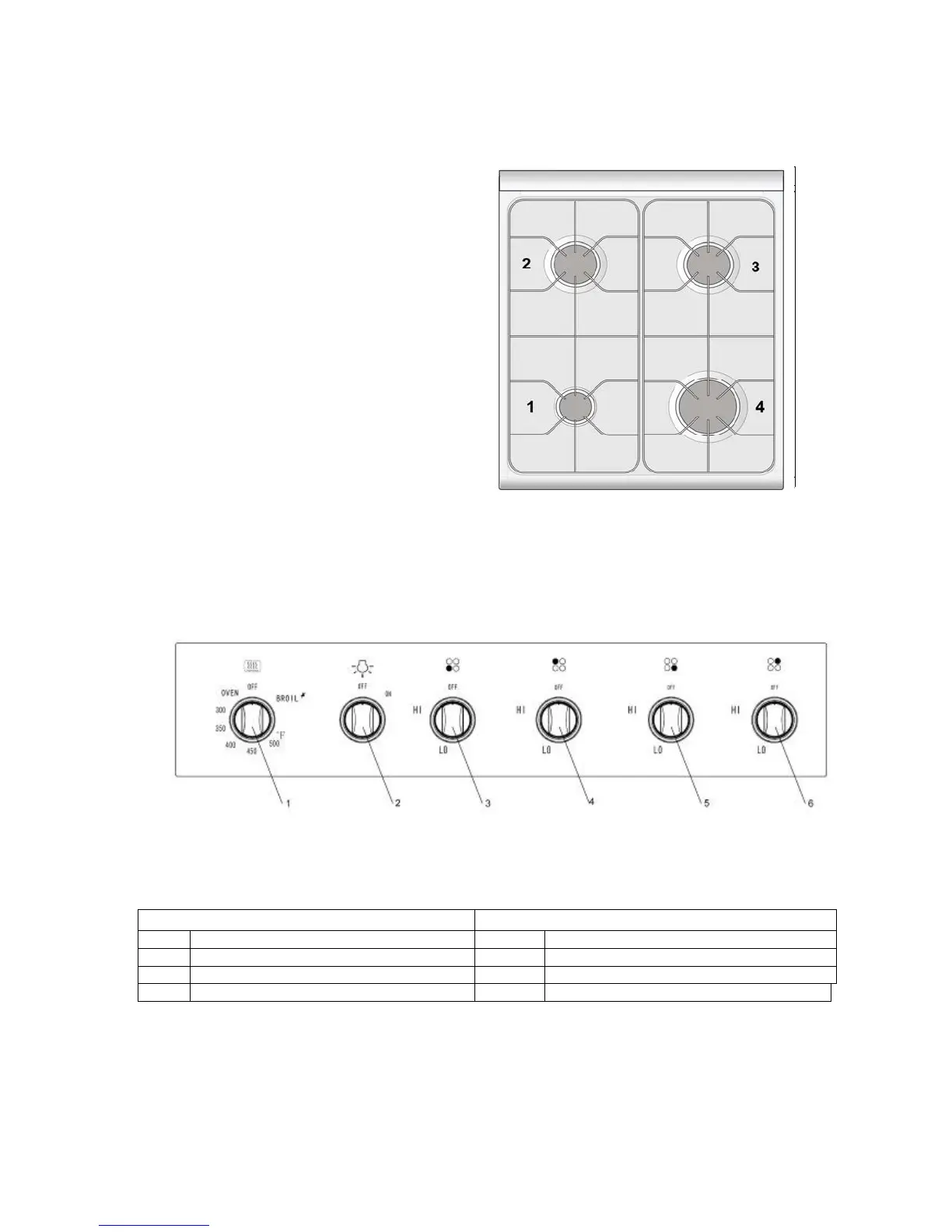

CONTROLS DESCRIPTION
Oven Controls Cooktop Control
1 Oven Temperature Control Knob 3 Front Left Burner Control Knob
2 Oven Light ON / OFF Switch 4 Rear Left Burner Control Knob
5 Front Right Burner Control Knob
6 Rear Right Burner Control Knob
1. Auxiliary burner (AUX) - 3200 BTU/hr
2. Right semi-rapid burner (SR) - 4800 BTU/hr
3. Left semi-rapid burner (SR) - 4800 BTU/hr
4. Rapid burner (R) – 10000 BTU/hr
Note:
-The electric gas-lighting device is incorporated
into the knobs.
1
4
2
3
CAUTION:
If the burner is accidentally extinguished,
turn the gas off at the control knob and wait
at least 1 minute before attempting to
relight.
CAUTION:
Gas appliances produce heat and humidity
in the environment in which they are
installed.
Ensure that the cooking area is well
ventilated following national/local codes.
