05/08 Rev. AB OPERATOR’S HANDBOOK Setup
9844/9854
2-4
9854 Printer with Dispenser (Peel)

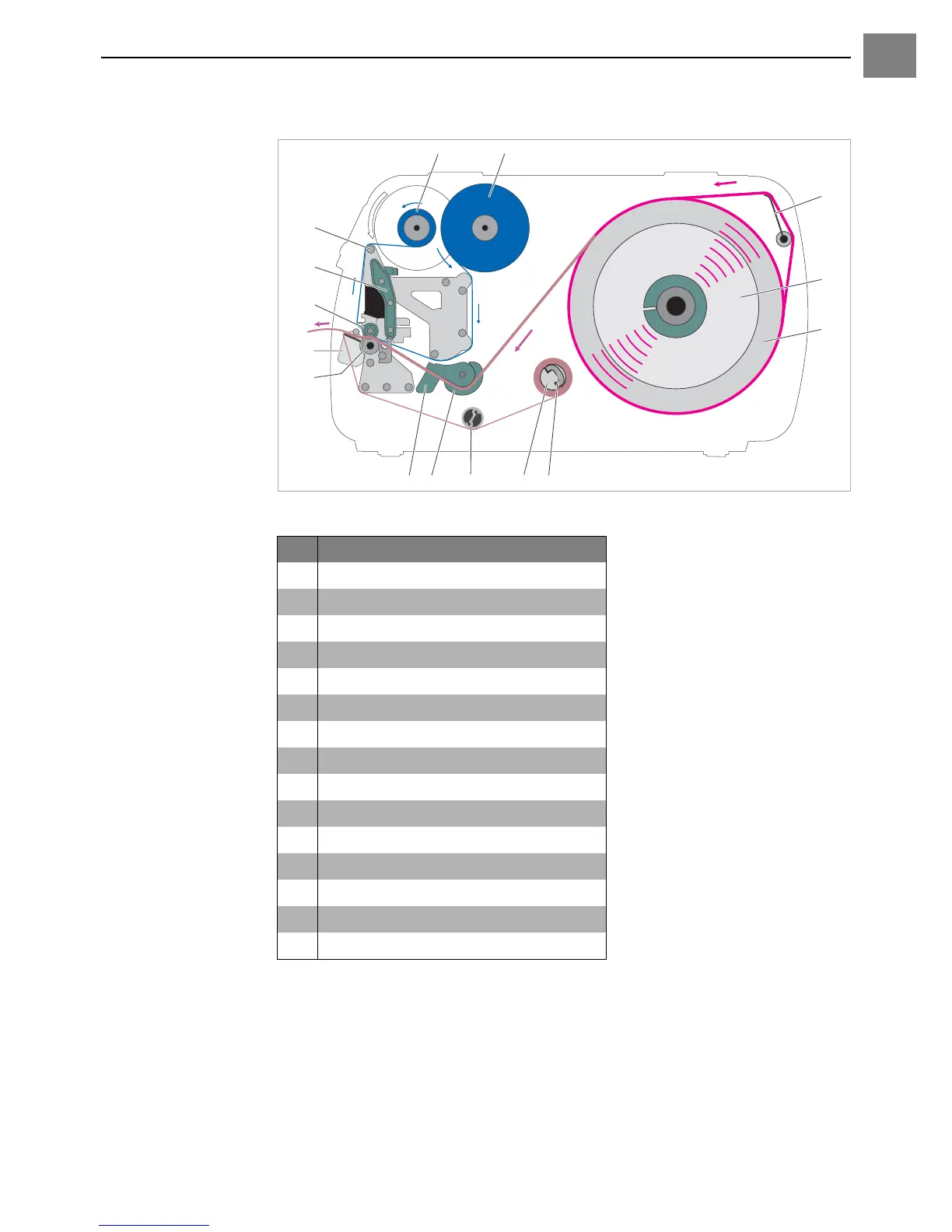

Fig. 3: Material and ribbon path through printer with dispenser (peel).
No. Description
1 Ribbon rewinding reel
2 Ribbon unwinding reel
3 Material tension roller
4 Guide disk
5 Material roll
6 Clip
7 Internal liner takeup reel
8 Deflection roller
9 Material guide
10 Light barrier fitting
11 Deflection plate
12 Dispensing edge (peel)
13 Adjusting wheel for printhead support
14 Pressure lever
15 Ribbon deflection roller
Tab. 3: Operating parts of the printer with dispenser (peel).
Bild_3/Z0194.cdr
1
2
3
4
5
6
0
3
4
5
6
7
8
910
11
12
12
13
14
15
