05/08 Rev. AB OPERATOR’S HANDBOOK Setup
9844/9854
2-9
Loading the 9854 with the
Internal Liner Takeup Reel
1. Follow the steps for loading material from
the previous section. Then, follow these
steps.

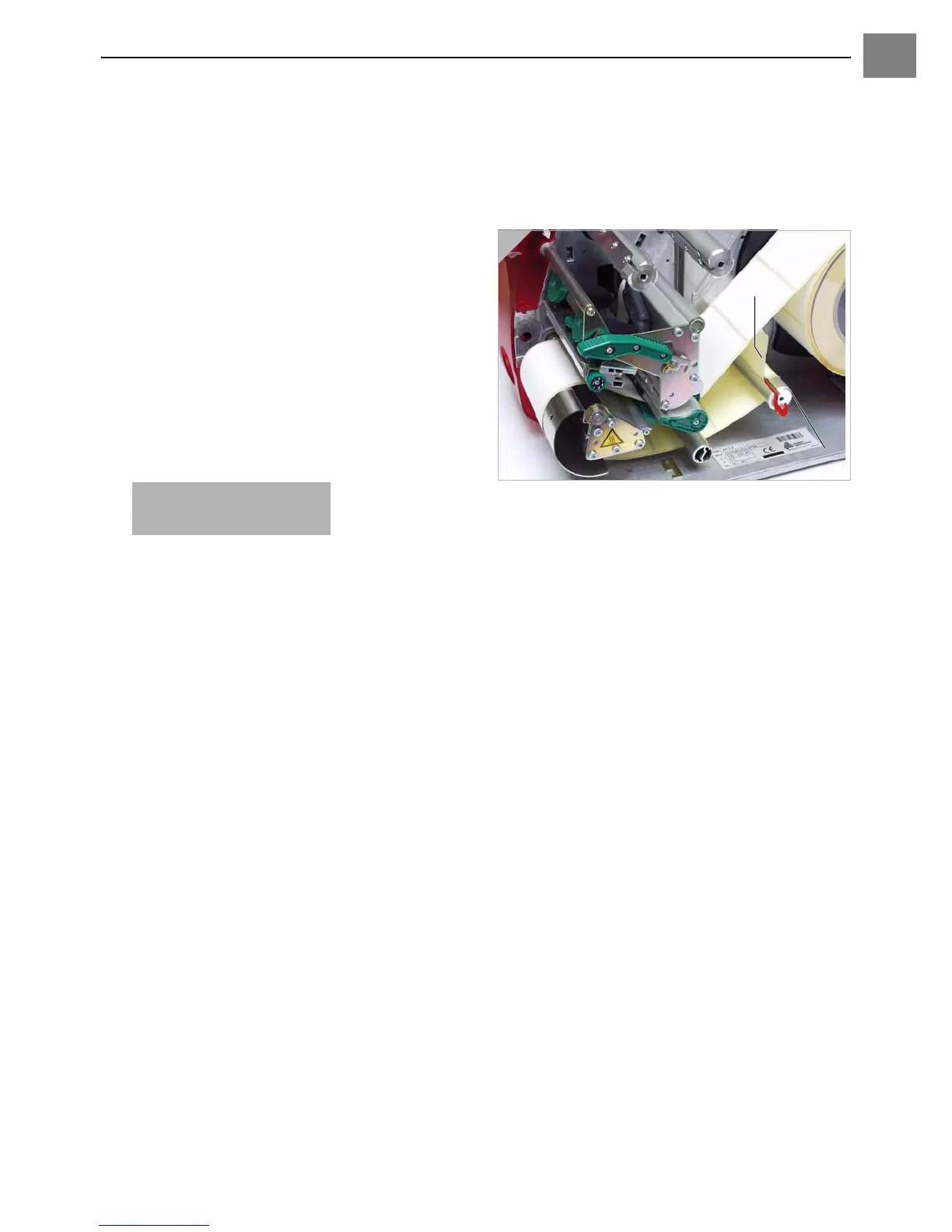

2. Thread the end of the material to the
internal liner takeup reel (1) as shown and
secure it with the clip (2) (Fig. 1).
3. Choose the rotation direction of the takeup
reel (face inside or outside): Select
parameter REWINDER PARA > Rewind
direction.
After turning on the printer, the takeup reel
rotates slowly until the material is pulled
tight.
You may see
before the material is pulled tight.
« If this happens, press Online to clear the
message. You may have to press it several
times.
Status 5004
Rewinder mat. tear
1
