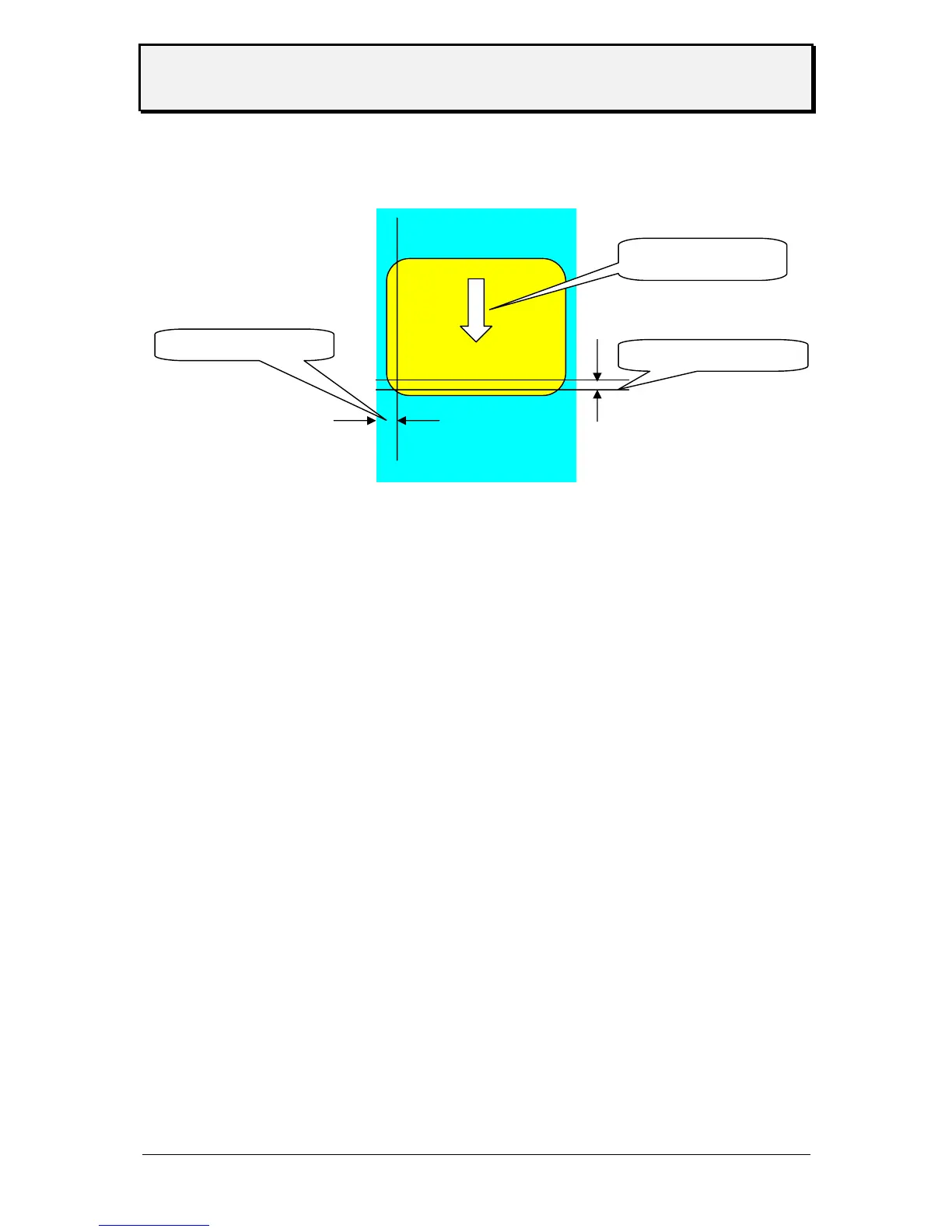

Feed direction
Output mode 1:1 at 100% imprintable label area with or without cut.
Not imprintable area: 2 mm from lower side and 1 mm from left
(inner) side (fig.)!
Gap sensor Self initializing infrared gap sensor with adjustment range 2-17mm,
correction of gap offset possible; length of gap: 0,8 up to 14mm,
width: min. 4mm; optional reflex mark sensor
Interpreter Easy Plug, Line Printer, Hex Dump
Label Stock Specifications
Label stock Fan folded, single sheet or strip
Width 25.4 up to 154 mm (standard device)
50.0 up to 154 mm (Short Tag option)
¯
Special case for Short Tag Option: Suitable tag stock can be used
without the outer material guiding. In those cases, the minimum width
is 30.0 mm.
Type of stock Self-adhesive, tag or plastic label material
Thickness 0.1 to 0.5 mm
Weight 100 to 240 g/m
2
¯
Not suitable is:
•
Label stock with static charging surface
•
Label stock with adhesive surface
Crucial for the function is also the separability of the label stock:
¯
The label stock must generally be easy to separate, what means:
•
it must not be talcum-powdered.
•
it must be free of punching burrs.
¯
Label stock with sharp cutting edges must be processed so that the
cutting edge faces the print roller! (otherwise printhead service life will
be decreased considerably)
