72
95-5015-016-000 Rev F

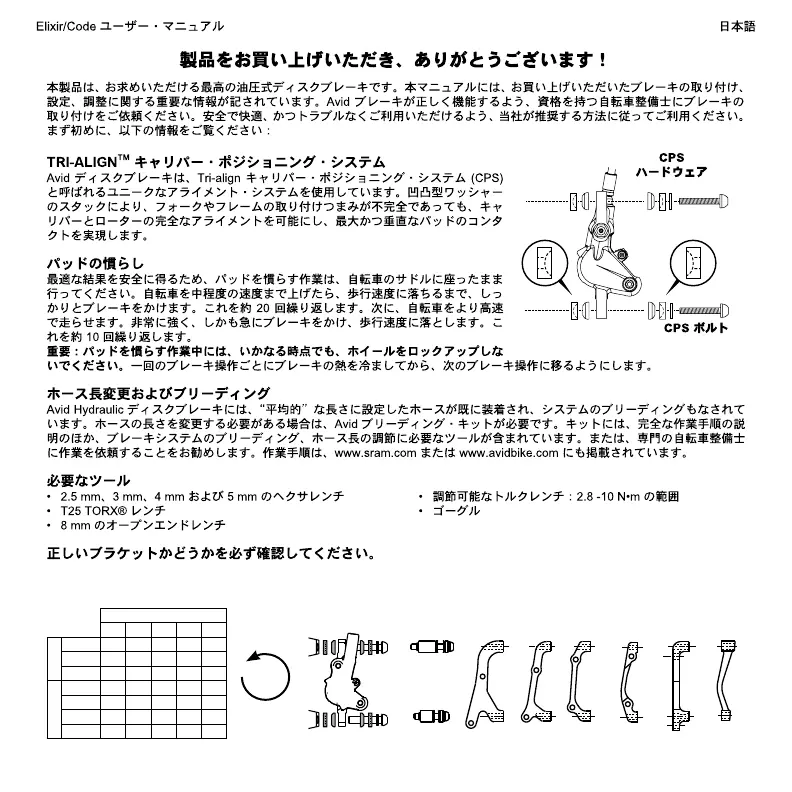

60 mm I.S. Bracket (60I)
Direct Mount (DIR)
40 mm I.S. Bracket (40I)
20 mm I.S. Bracket (20I)
40 mm Post Bracket (40P)
20 mm Post Bracket (20P)
20 mm Offset (20W)
0 mm I.S. Bracket (0IS)
Rotor Sizes (mm)
140 160 180 200 203
FRONT
IS --- 0IS 20I 40I ---
PM --- DIR 20P 40P ---
TOTEM --- --- --- --- DIR
REAR
IS 0IS 20I 40I 60I ---
140PM DIR 20P 40P --- ---
160PM --- DIR 20P 40P ---
180PM --- --- DIR 20P ---
