System Details
5

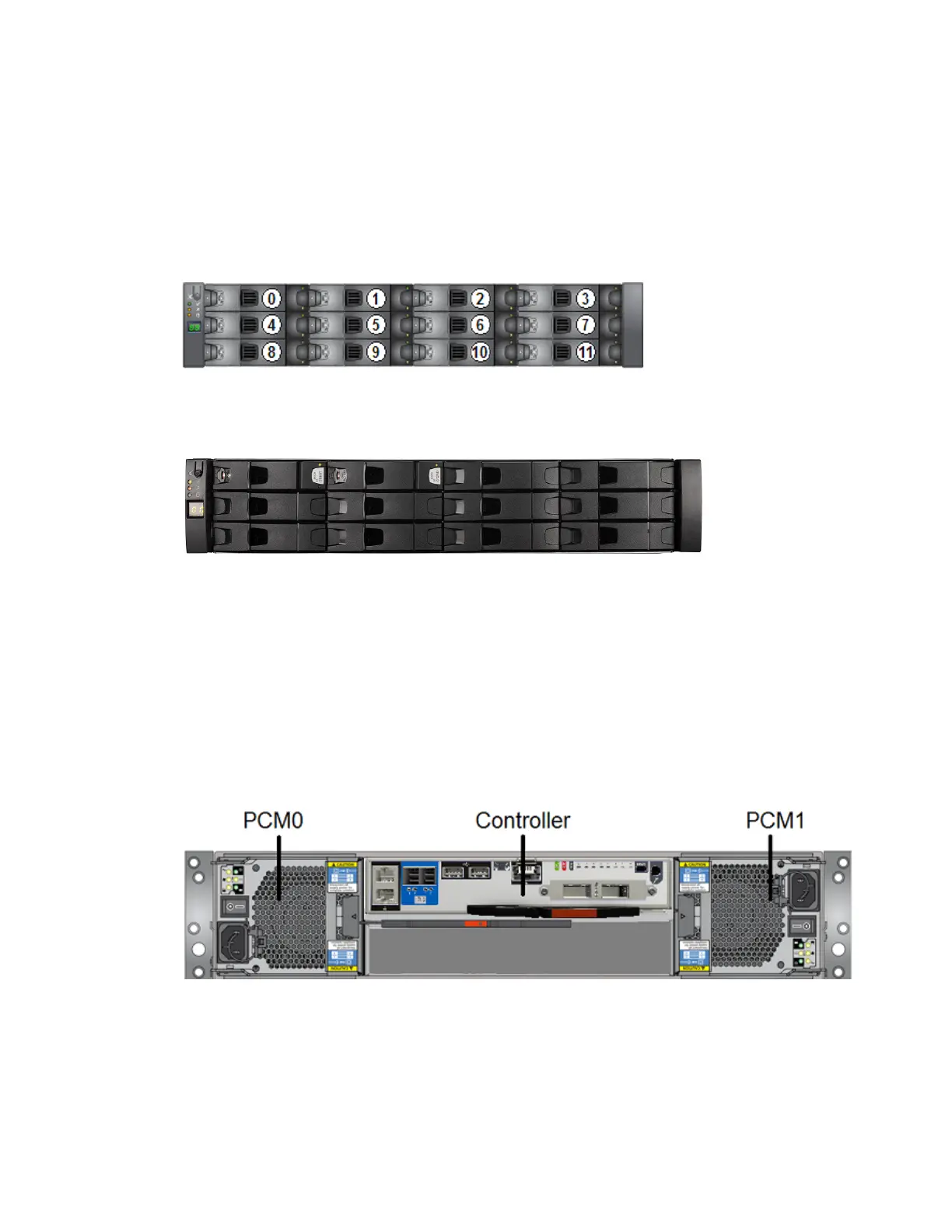

2U Chassis Front Views and Details
The front of all 2U chassis has a removable bezel (not shown). Removing the bezel allows access to
the drive slots. The Avid NEXIS | E2, Avid NEXIS | E2 SSD, and Avid NEXIS | PRO systems
support one Media Pack (10 drives) for media storage and two system drives. The System Director
Appliance supports two system drives.
As shipped from Avid, the system drives occupy the first two slots (0 and 1). Drive slot numbering
for storage engines is shown below.
In the System Director Appliance, the empty slots are covered with blank plates for proper airflow
and cooling.
2U Chassis Rear Views and Details
The rear of the chassis provides access to the Controller and PCMs.
• 2TB SAS drives, Controller in slot 0 (top)
• 4TB SATA drives, Controller upside down in slot 1 (bottom)—can be one of two types of
Controller
Avid NEXIS | E2 and System Director Appliance
In Avid NEXIS | E2 and the System Director Appliance the Controller is in slot 0 (top).
Avid NEXIS | E2 SSD
In Avid NEXIS | E2 SSD the Controller is upside-down in slot 1 (bottom).
