System Details
10
5U Chassis Front View and Details

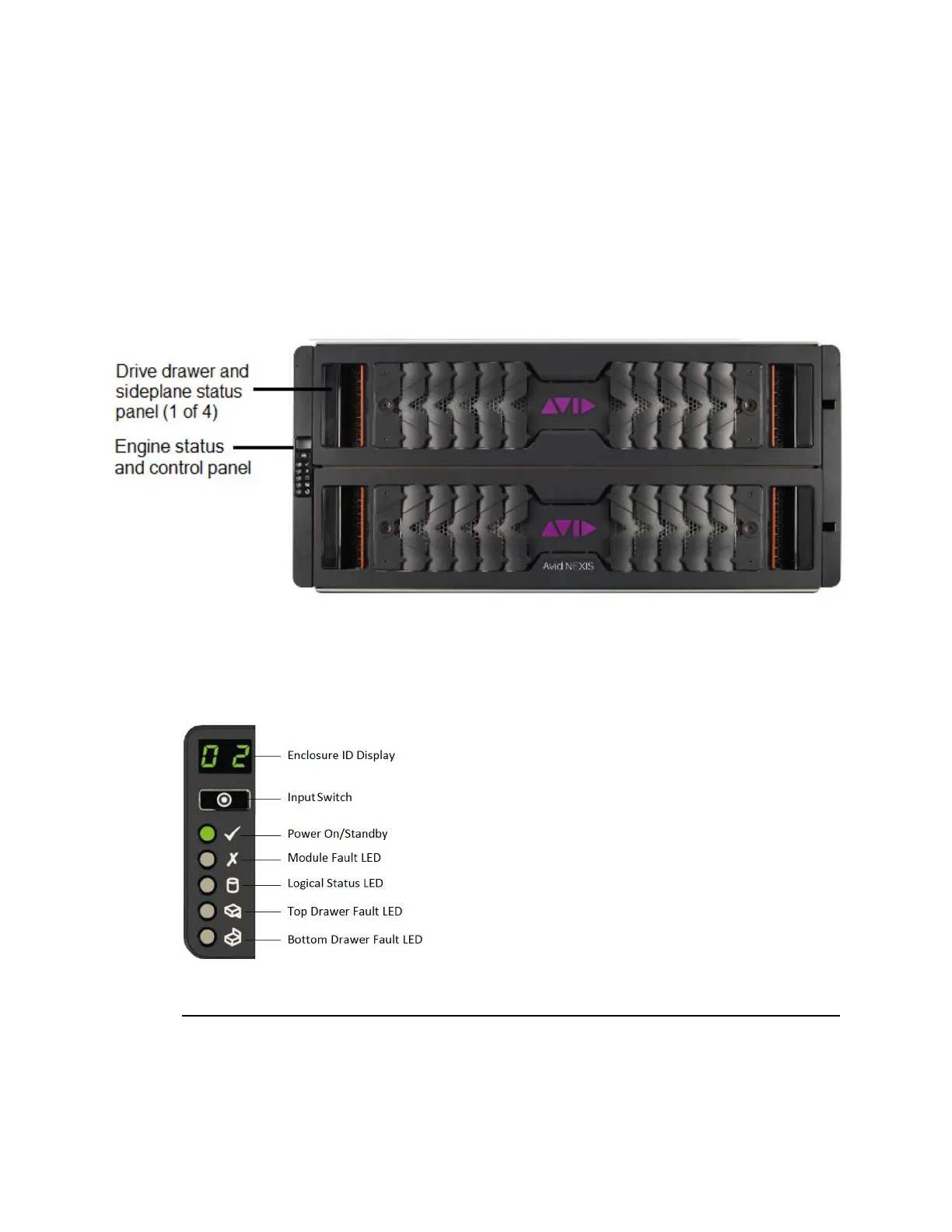

On 5U chassis, the bezels are attached at the factory and do not need to be removed for any system
maintenance procedures. The 5U chassis has two drive drawers, each holding 42 drives. The front of
the chassis has two status panels, as described below and shown in the following figure:
• Drive drawer and sideplane status panel (two on each drive drawer)
The LED lights when a drive has failed, indicating the drawer and slot of the drive. For details,
see “5U Chassis Drive Drawer and Sideplane Status Panel” on page 11.
• Engine status and control panel
Indicates the overall status and fault conditions of the Engine.
Engine Status and Control Panel
The Engine Status and Control panel indicates the overall status of the engine and has the following
features.
Description Status/Purpose
Enclosure ID display Displays the enclosure identification number (optional; helps you locate the
engine in a high-density rack or cabinet populated with several other similar
systems).
Input Switch Sets the Enclosure ID display.
