5U Chassis Drive Drawer and Sideplane Status Panel
The drive drawer and sideplane status panel indicates the health of the drives, and shows drive
activity.
Power On/Standby Green when system is on (operational).
Amber when system is in standby mode (not operational).
Module Fault indicator Amber when there is a system hardware fault. In that case, another LED on the
faulty component may be lit.
Logical Status indicator When lit, indicates that a drive has failed. To determine the location of the failed
drive, see the drive status indicator panels on the Engine.
Top Drawer fault indicator When amber, indicates a fault in the top drawer (drive, cable, or fan).
Bottom Drawer fault
indicator
When amber, indicates a fault in the bottom drawer (drive, cable, or fan)
Description Status/Purpose
Description Status/Purpose

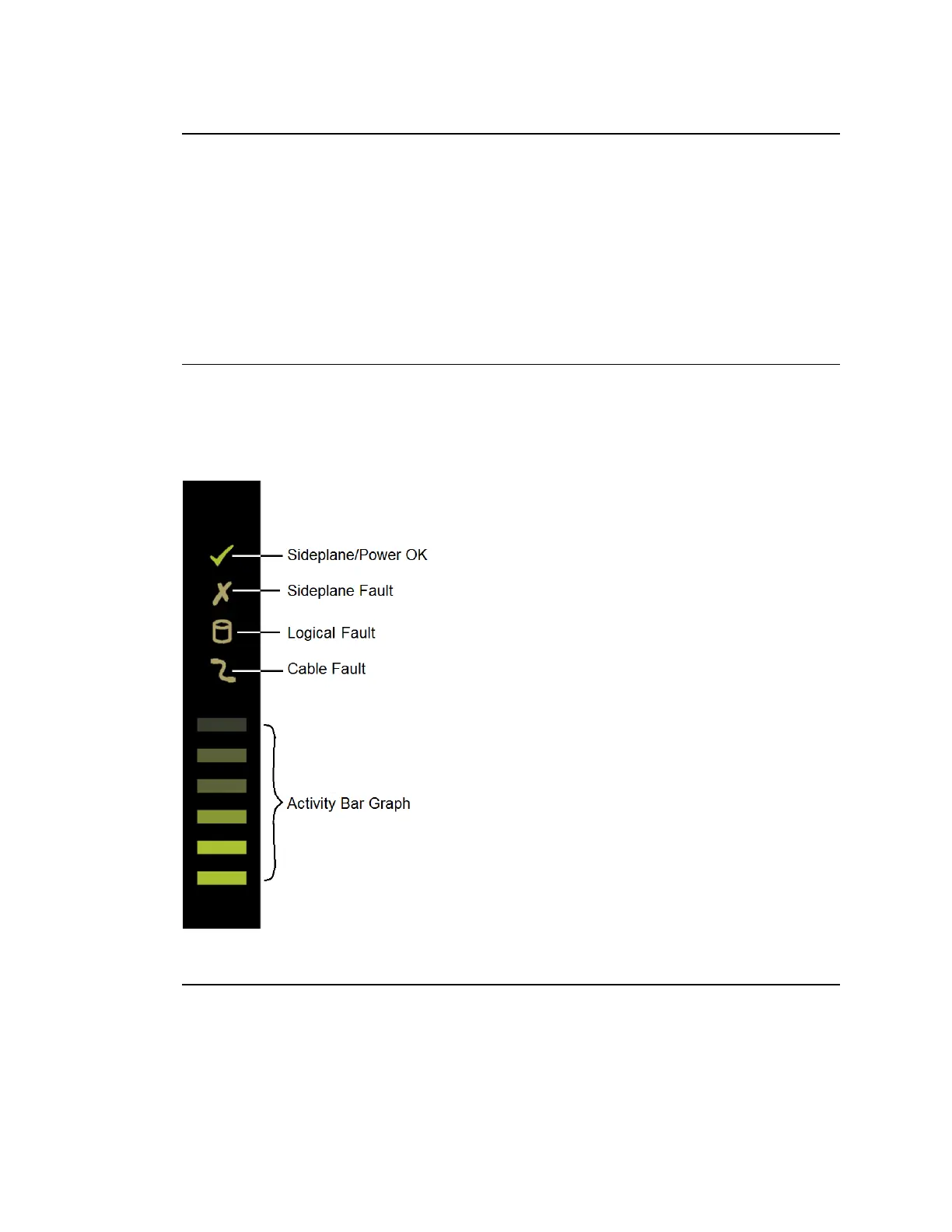

Sideplane and Power OK Green when the sideplane card is working and there are no power problems
Sideplane Fault Amber if a drive has failed
Logical Fault Flashes amber if one or more RAID sets have failed drives
Cable Fault Amber if the cable between the drawer and the back of the enclosure has failed
