Overview
Camera Module

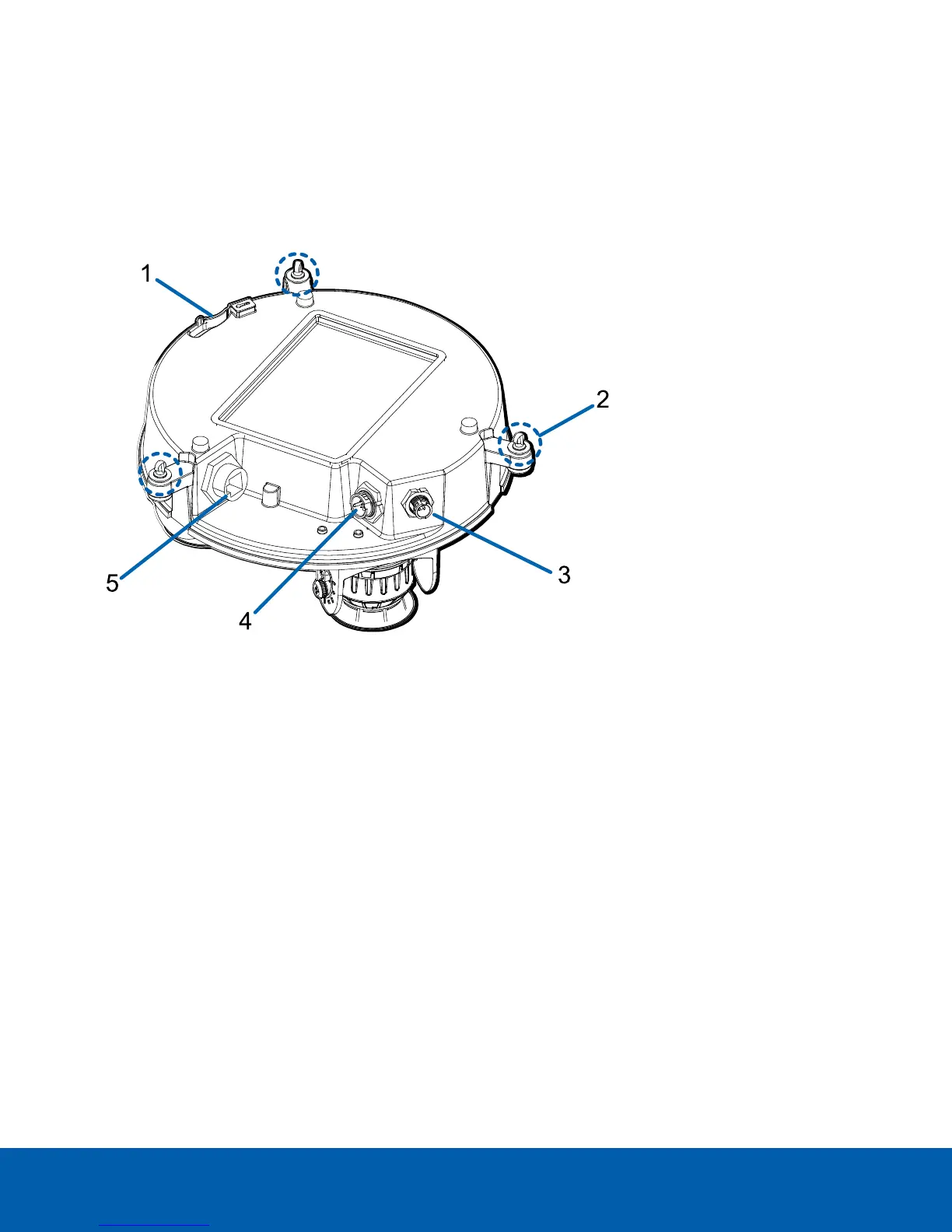

Camera Back View
1.1.
Lanyard anchor
The safety lanyard attaches to the anchor to prevent the camera from falling during installation.
2.
Camera mounting screws
Captive screws to fix the camera to the mounting adapter.
3.
IR ring cable connector
Accepts IR cable connection to power and control the IR illuminator ring.
4.
Audio, I/O, Aux power connector
Accepts connection of the audio, I/O, and Aux power pigtail connector.
5.
Ethernet port
Accepts an Ethernet connection to a network. Server communication and image data transmission occurs
over this connection. Also receives power when it is connected to a network that provides Power over
Ethernet.
Overview 7
