11

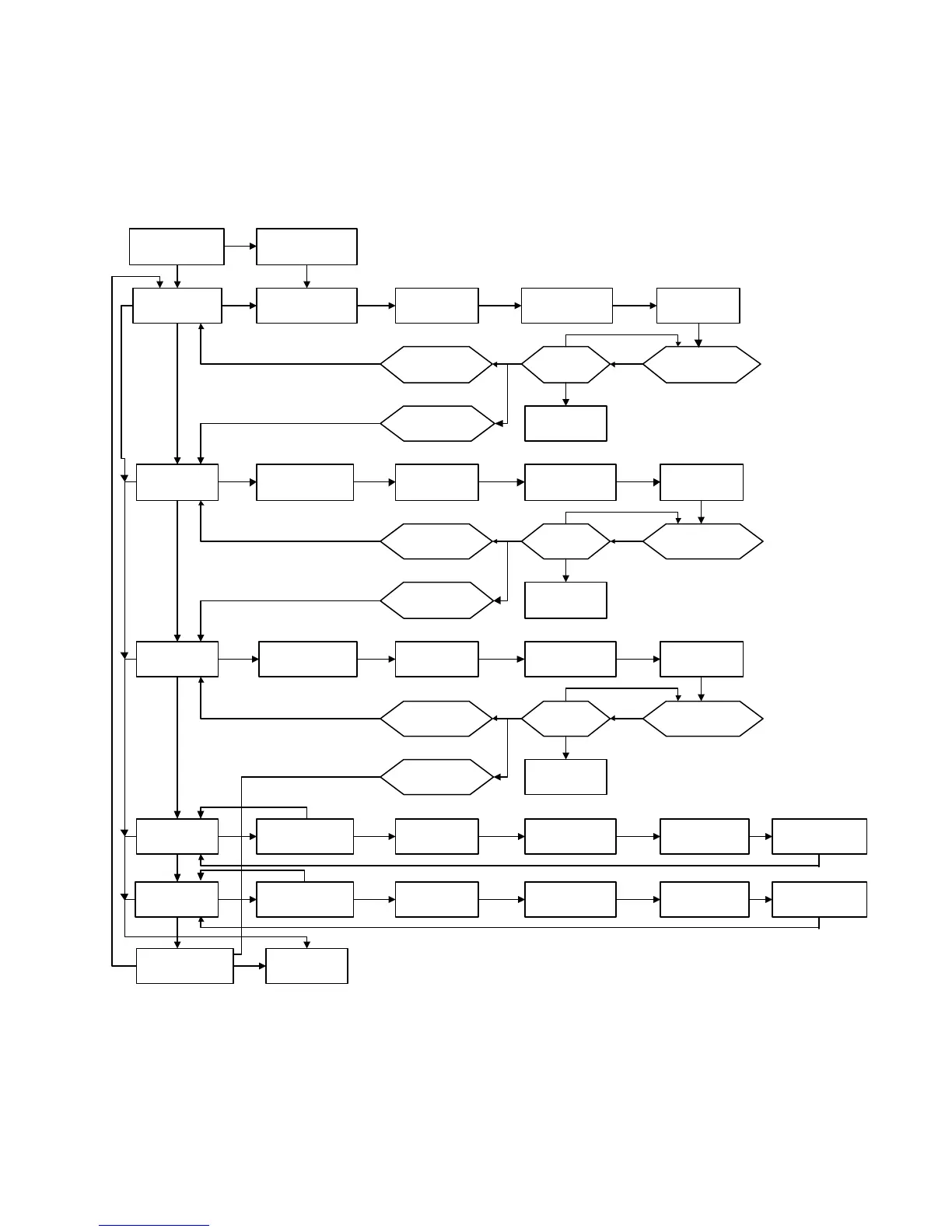

5 QC/Standard/Urine Sample Menu - 9120, 30, 40
QC/STANDARD/
URINE SAMPLE?
DAILY
MAINTENANCE?
YES
NO
QC Level 1
Sample?
Open Sample Door
Introduce Sample
Introduce
Sample
Wipe Probe/Close
Sample Door
QC Level 1
in Process 49
READY 12:45
Na K Cl
99.65.34 88.2
Store
Values?
VALUES
REJECTED!
VALUES
ACCEPTED!
YES
OPEN
SAMPLE
IN
CLOSED
2s
2s
2 min
2s
2s
YES
NO
QC Level 2
Sample?
Open Sample Door
Introduce Sample
Introduce
Sample
Wipe Probe/Close
Sample Door
QC Level 2
in Process 49
READY 12:45
Na K Cl
99.6 5.34 88.2
Store
Values?
VALUES
REJECTED!
VALUES
ACCEPTED!
YES
OPEN
SAMPLE
IN
CLOSED
2s
2s
2 min
2s
2s
YES
NO
QC Level 3
Sample?
Open Sample Door
Introduce Sample
Introduce
Sample
Wipe Probe/Close
Sample Door
QC Level 3
in Process 49
READY 12:45
Na K Cl
99.6 5.34 88.2
Store
Values?
VALUES
REJECTED!
VALUES
ACCEPTED!
YES
OPEN
SAMPLE
IN
CLOSED
2s
2s
2 min
2s
2s
YES
NO
NO
NO
NO
Standard
Sample?
Open Sample Door
Introduce Sample
Introduce
Sample
Wipe Probe/Close
Sample Door
Standard Sample
in Process 49
YES
OPEN
SAMPLE
IN
CLOSED
Na K Cl
158.8 5.82 113.2
1 min.
NO/
YES
NO
Urine
Sample?
Open Sample Door
Introduce Sample
Introduce
Sample
Wipe Probe/Close
Sample Door
Urine Sample
in Process 49
YES
OPEN
SAMPLE
IN
CLOSED
Na K Cl
238 18.8 198
1 min.
NO/
YES
NO
Remain in QC/
Std/Urine Sample?
READY 12:45
NO/
2 min.
5s
5s
YES
2 min.
2 min.
2 min.
2 min.
2 min.
16
18
Table of Contents
Default Chapter
5
Table of Contents
5
1 Introduction
7
2 General Description
8
Reported Parameters
8
Operating Parameters
8
3 Software
11
System Software Flow Charts 9120, 30, 40
13
System Software Flow Charts 9180
23
System Software Flow Charts 9181
35
Service Functions
48
4 Description of Modules
54
Mechanical Assemblies
54
Fluidic Module
58
Electronics
62
5 Maintenance and Troubleshooting
65
Maintenance Procedures
65
Error Messages and Troubleshooting
66
6 Adjustments
77
Sample Sensor Adjustment
77
Temperature Adjustment
77
7 Electronic Diagrams
78
System Block Diagram 9120, 30, 40, 80
80
Display Board
80
System Block Diagram 9181
81
System Interconnect 9120, 30, 40
82
SBC PCB - Power Supply 9120, 30, 40
83
SBC PCB - Valve Drivers 9120, 30, 40
84
SBC PCB - Pump Motor Driver/Door Detect 9120, 30, 40
85
SBC PCB - Input Amplifiers 9120, 30, 40
86
SBC PCB - Temperature Circuit 9120, 30, 40
87
SBC PCB - Analog Selector and A/D Converter 9120, 30, 40
88
SBC PCB - Microprocessor 9120, 30, 40
89
SBC PCB - Printer/Display Drivers 9120, 30, 40
90
Printer Daughter PCB 9120, 30, 40, 80, 81
91
Lamp PCB 9120, 30, 40
92
Display Daughter PCB 9120, 30, 40
93
System Interconnect 9180/9181
94
SBC PCB - Power Supply 9180/9181
95
SBC PCB - Valve Drivers 9180/9181
96
SBC PCB - Pump Motor Driver/Door Detect 9180/9181
97
SBC PCB - Input Amplifiers 9180/9181
98
SBC PCB - Temperature Circuit 9180/9181
99
SBC PCB - Analog Selector and A/D Converter 9180/9181
100
SBC PCB - Microprocessor 9180/9181
101
SBC PCB - Printer/Display Drivers 9180/9181
102
SBC PCB - Fluid Pack Detector 9180/9181
103
Lamp PCB 9180/9181
104
Display Daughter PCB 9180
105
8 Parts List
106
Main Assembly Front
107
Main Assembly Rear
108
Electrode Holder Assembly
109
Needle Unit Assembly
110
Rear Panel Assembly
111
Front Door Assembly
112
9 Interface Specifications
113
Interface Information
113
Example Data String Information
114
Data Link Information
114
