Opacity Measuring Chamber Type A AVL 4000

6-8 Service Manual

11 x

Fig. 6-9

Housing cover 2 RM0115

Label ZB1384

Silicon seal RM0121

Detail: Rubber pads

You do not need to remove the rubber pads to dismantle the measuring

chamber.

Detail: Probe connection plate

You do not need to remove the probe connection plate to dismantle the

measuring chamber.

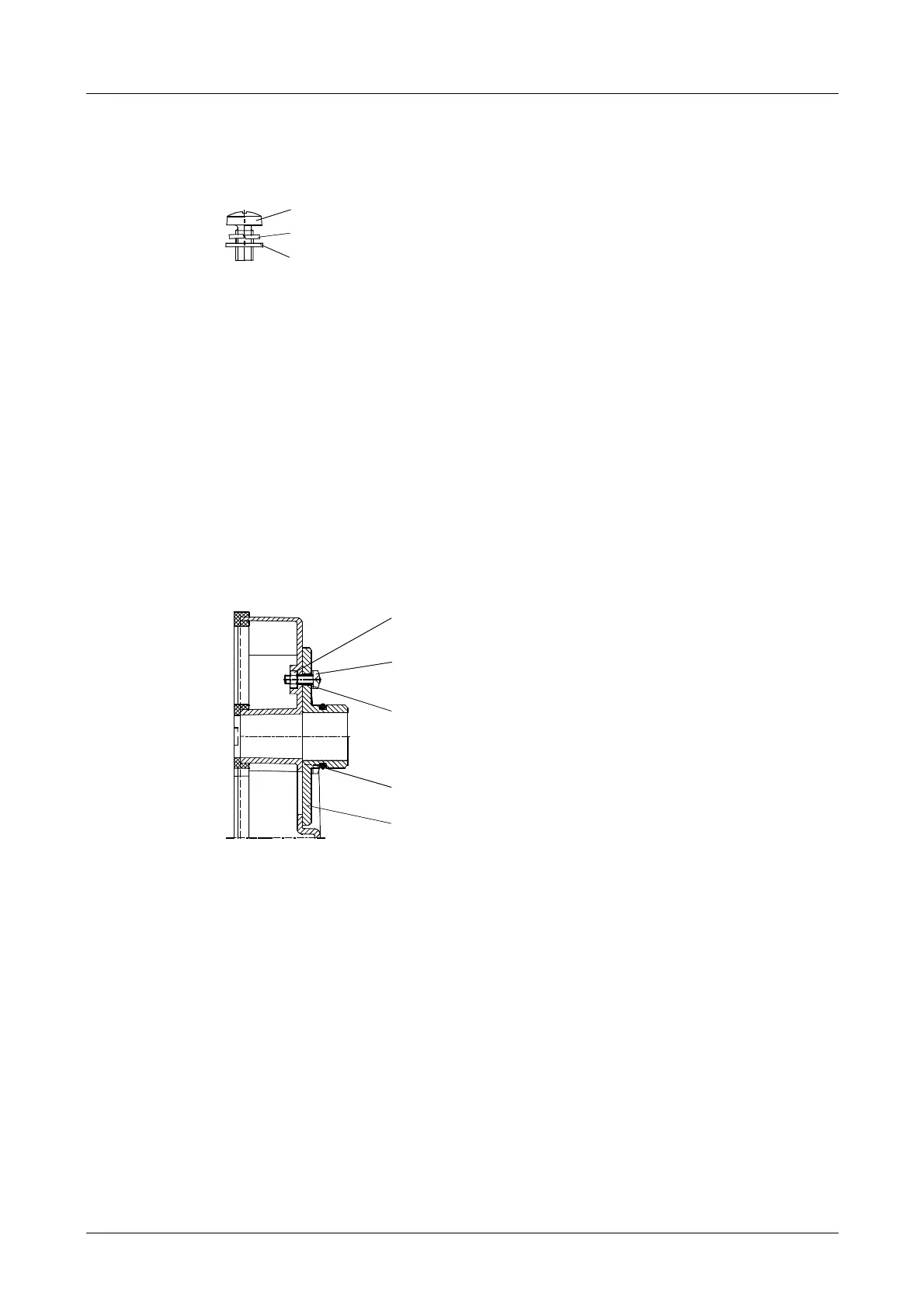

Cross-section A-A (Fig. 6-8)

Fig. 6-10

DS1172 Oval-head screw M5x10

DZ0567

DZ0253

Hexagonal nut DM0089 (3 pcs.)

Oval-head screw M5x16 DS0947 (3 pcs.)

Washers DZ0253 (3 pcs.)

Spring washer DZ0567 (3 pcs.)

O-ring DA0288

Probe connection plate YM2761
