AVL DiCom 4000 - Purging Air Panels (YM2691)

4000 Opacity Measuring Chamber Type A
Service Manual 6-23
6.11 Purging Air Panels (YM2691)
There are two purging air panels, one either side of the measuring chamber.

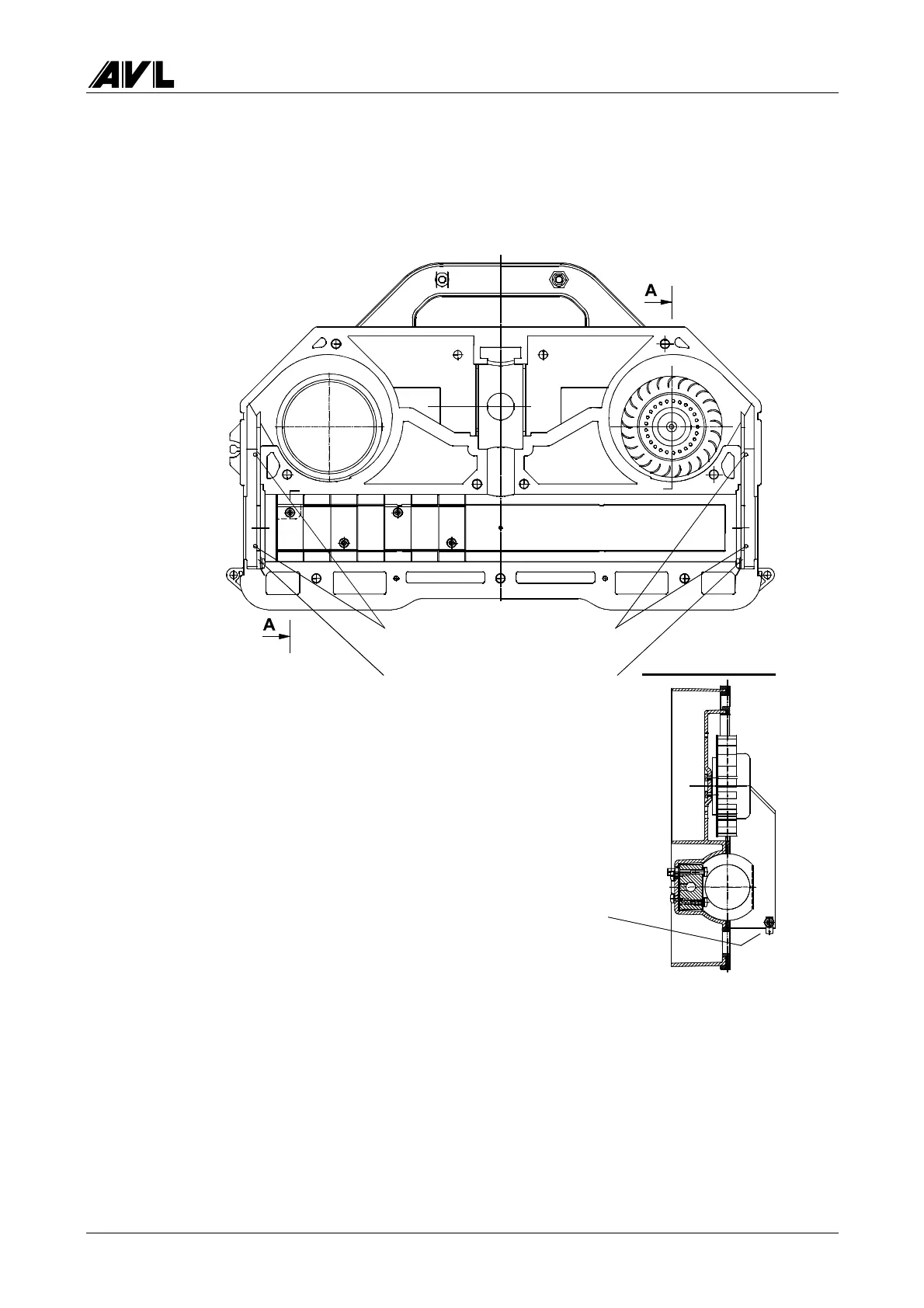

Fig. 6-29
The purging air panels are connected to the protective conductor.
Purging air panel
YM2691
Fixing bolts Fixing bolts
Purging air panel
YM2691
Cross-section A-A
2 oval-head screws M4x6
DS1041
2 contact discs
DZ0549
2 Faston connectors
EU0520
