2. Control elements and connectors
The numbers in the drawings below mark the control elements. They refer to the numbers in the text, where
the operation is described.

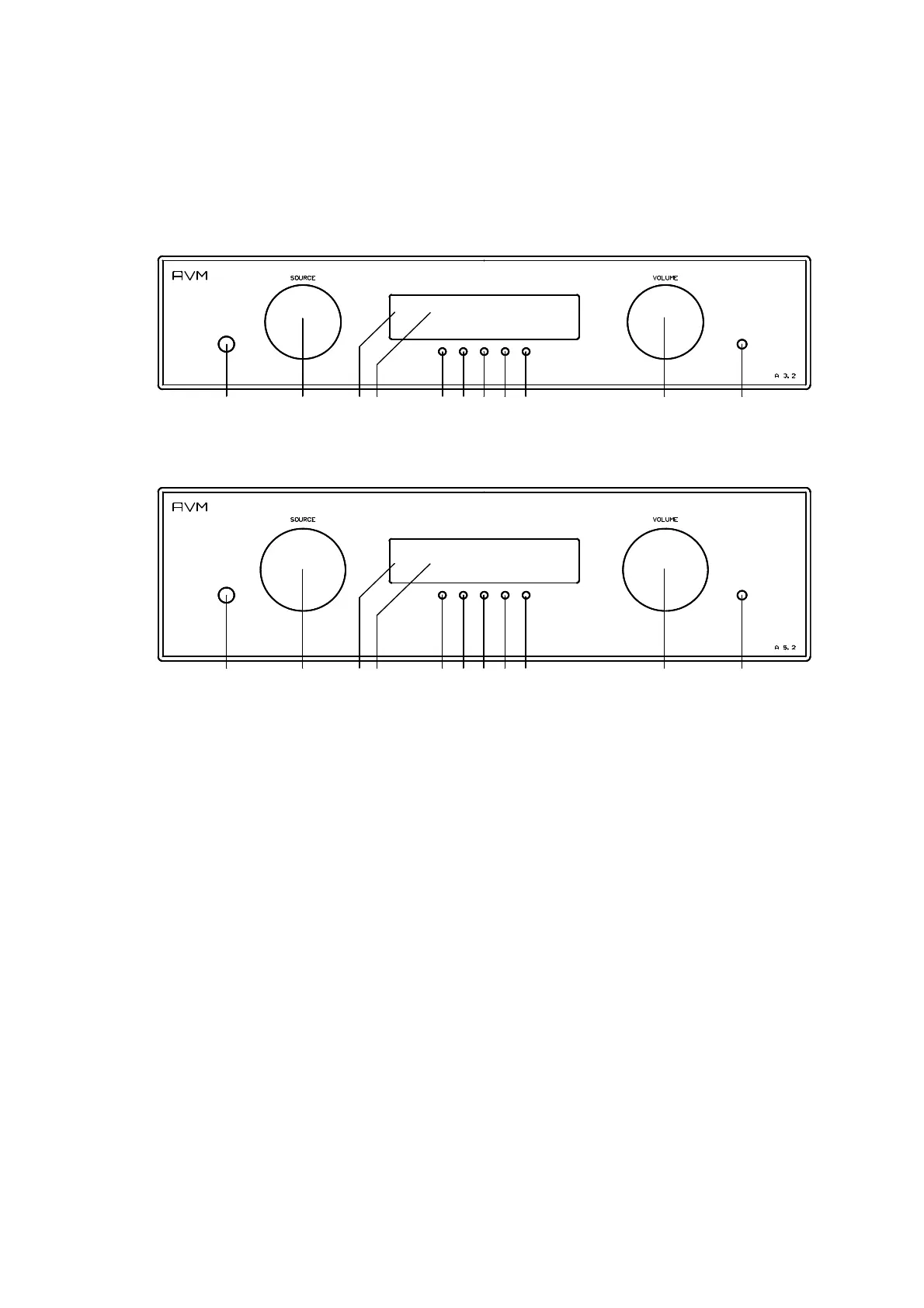

2.1.1 Front panel PA3.2, A3.2
1121098765431
2.1.2 Front panel PA5.2, A5.2 /T
1121098765431
1 Power button (on / off)
2 Source selector
3 Control LED
4 Display
5 - 9Multifunctional buttons (soft keys)
10 Volume knob
11 Phones output / Front input
