2.5 Setting of the phono card (option)
To ensure that the phono card works in an optimal way, it must be set according to the requirements of the
cartridge. Please refer to the operating manual / technical data of your cartridge to find out the correct

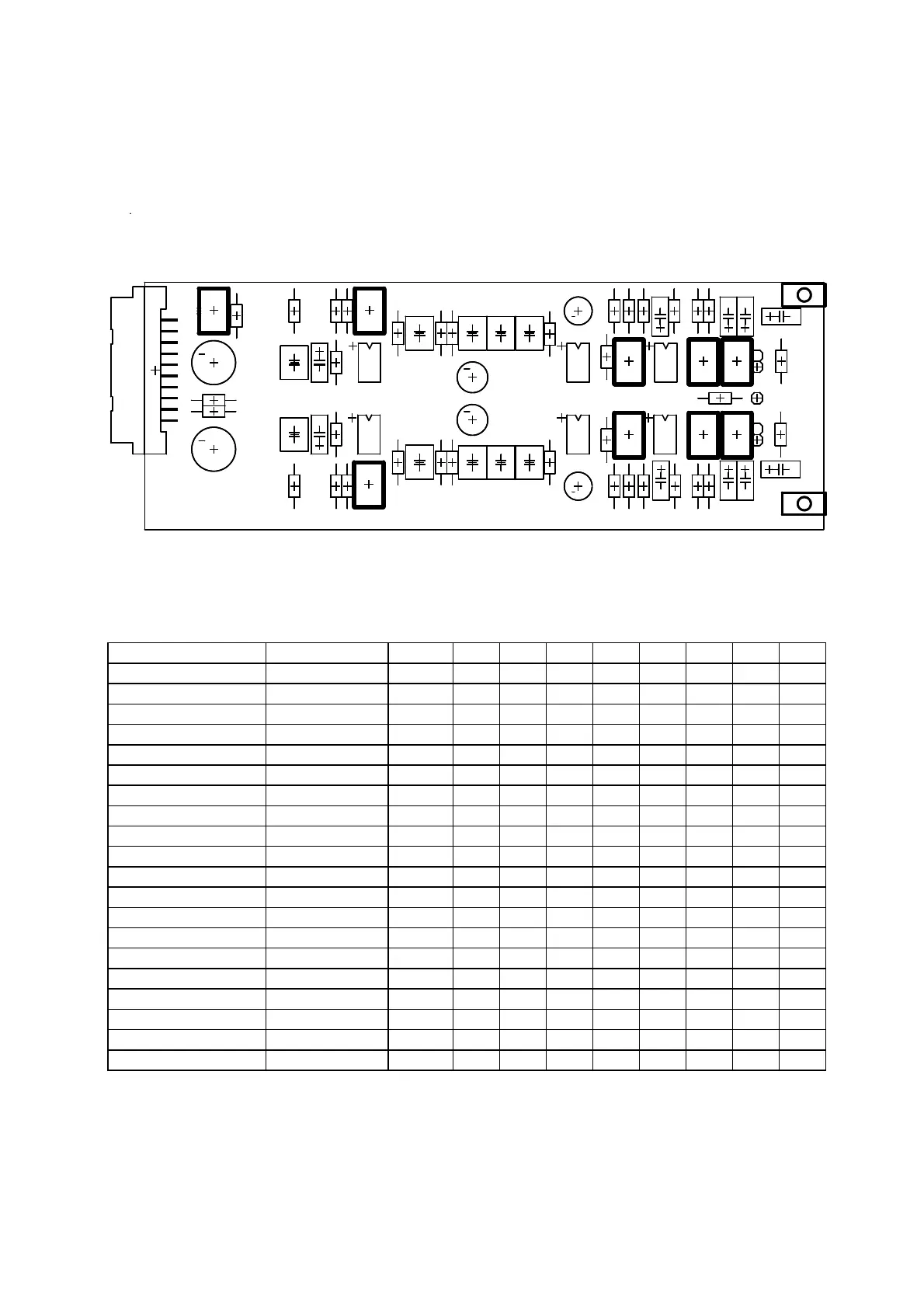

settings. The setting is done by switches on the pcb. The upper switches are for the right channel, the lower
for the left channel. The switches for both channels must be set identically.
S2r S3r S4r S5r
S5lS4lS3lS2lS1
S1/1+2 S2/1 S2/2 S3/1 S3/2 S4/1 S4/2 S5/1 S5/2
MM-cartridges
OFF OFF OFF OFF OFF
Output voltage
< 1 mV ON ON
1 mV – 2,5 mV OFF ON
2,5 mV - 5 mV ON OFF
> 5 mV OFF OFF
Load capacitance
up to 200 pF OFF OFF
200 - 350 pF ON OFF
350 - 450 pF OFF ON
450 - 600 pF ON ON
S1/1+2 S2/1 S2/2 S3/1 S3/2 S4/1 S4/2 S5/1 S5/2
MC-cartridges
ON ON ON OFF OFF
Output voltage
< 100 µV ON ON
100 µV - 250 µV OFF ON
250 µV - 500 µV ON OFF
> 500 µV OFF OFF
Load resistance
25 - 75 Ohms ON ON
75 - 150 Ohms ON OFF
150 - 500 Ohms OFF ON
> 500 Ohms OFF OFF
