AVMATRIX HVS0401E User Manual

1
1.BRIEF INTRODUCTION
1.1 Overview

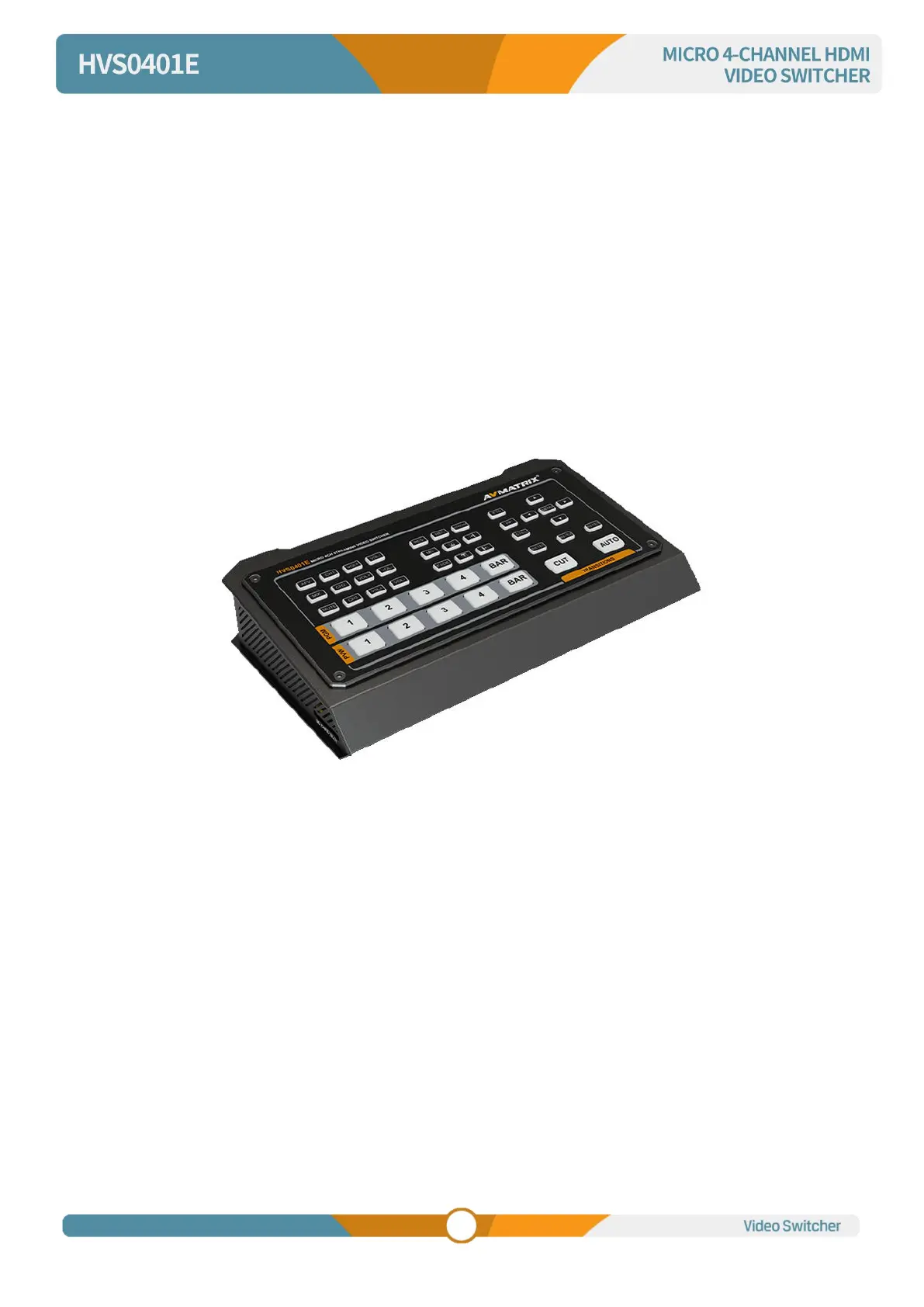

HVS0401E is a 4-channel HDMI/DP multi-format video switcher with a compact and rugged metal
housing design that allows for video switching, audio mixing and different transition effects.Inputs support
multi-format, PGM output can be scaled, compatible with a variety of equipment. The switcher supports
capture to a PC for performance and presentation via the USB Type-C port and can be directly pushed for
streaming via the LAN port. A built-in video recorder allows direct recording via USB disk and SD card.
User can also customize different settings and import or export the configuration quickly for various
scenarios. It’s a powerful and professional video switcher for your choices.
1.2 Main Features
 Inputs 1~3: HDMI, Input 4: HDMI/DP

Outputs: HDMI PGM×2, HDMI multiview×1, USB type-C×1, LAN×1
 LAN port for RTMP streaming and upgrade
 USB disk/ SD card for PGM recording

USB Type-C for video capturing (UVC)
 PIP function, adjustable size and position

Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
 AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
 GPIO interface for live tally system
 FTB for emergency situation

AVMATRIX HVS0401E Specifications

General

Brand	AVMATRIX
Model	HVS0401E
Category	Switch
Language	English
