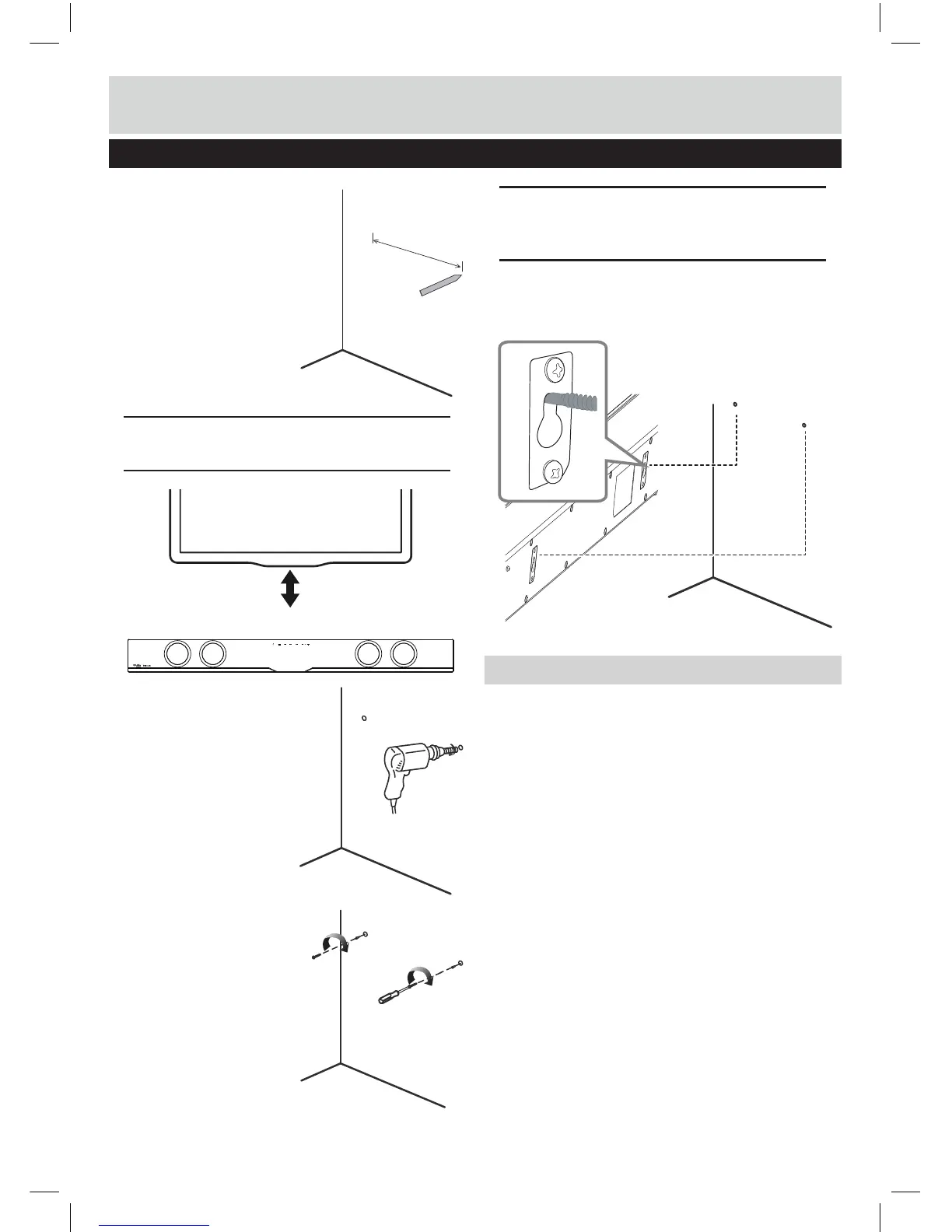

Wall mounting the sound bar
1: Align the Sound bar in the
chosen location. Use a
pencil to mark the drilling
positions 630mm (24.8”)
apart.
NOTE: The Sound bar should be located at least
7.5cm (3”) below the bottom of the TV.
3 inches (7.5 cm) or more
2: Drill holes as marked in
step 1.
3: Insert 2 screws (not
supplied) into the holes
and tighten . Take care to
leave 5mm between the
screw heads and the wall.
NOTE: You will need to ensure the screws are long
enough to sufficiently grip the wall while allowing
5mm between screw head & wall.
4: Hook the Sound bar into the screws. For secure
mounting ensure the screw heads slide firmly into the
narrow part of the brackets .
Wall mounting advice
TV
• In order to avoid damage to the equipment and
personal injury you should get a qualified person to
drill the fixing surface and fit the appropriate wall
fixings.
• Take care not to allow the main unit to fall while
attempting to hook onto the wall mount brackets.
• Before mounting, check the wall strength, if it is not
clear then consult relevant qualified personnel.
• When drilling into walls, always check that there a
re no
hidden wires or pipes etc.
• Make sure the screws & wall plugs are suitable for
supporting the unit.
