Windows PC Software
4.9.1.3 Audio Level Settings
The nominal level of the system can be set separately for the input, Level In as
well as for the output, Level Out.
One of the following values can be set as the nominal level.
0 dBu, 3 dBu, 6 dBu, 9 dBu
The head room is always 6 dB so that, with a nominal level of 9 dBu a maxi-
mum level of 15 dBu can be achieved.

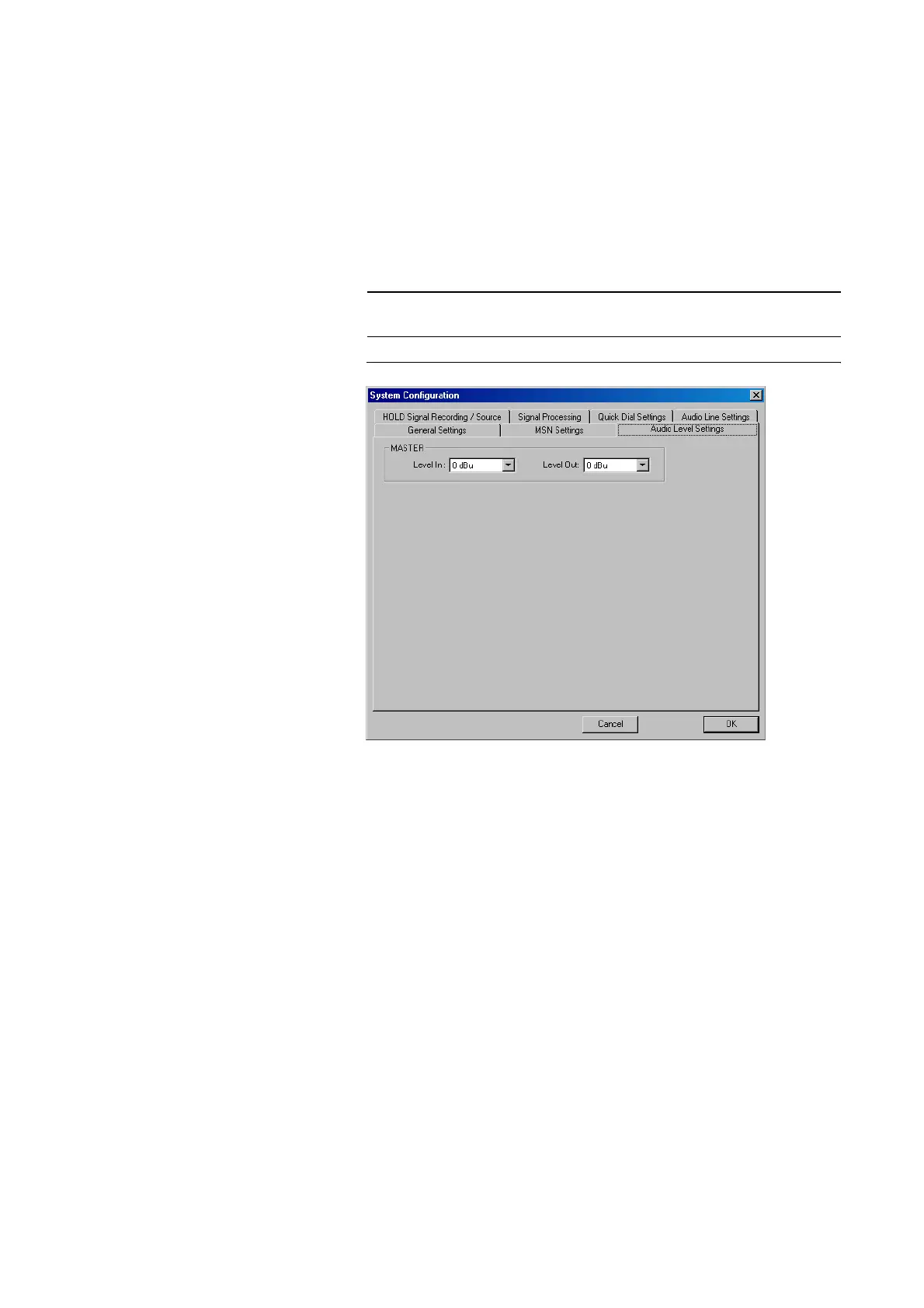

FIG. 16 SETTING OF THE AUDIO LEVEL
NOTE If the nominal Level In level is raised at the input, the level at the receiver will
be correspondingly lowered.
