AVT MAGIC - A4.2 LCD Display; A4.3 Mains Power Supply Unit

PAGE 72
Technical Data MAGIC Hybrid Keypad

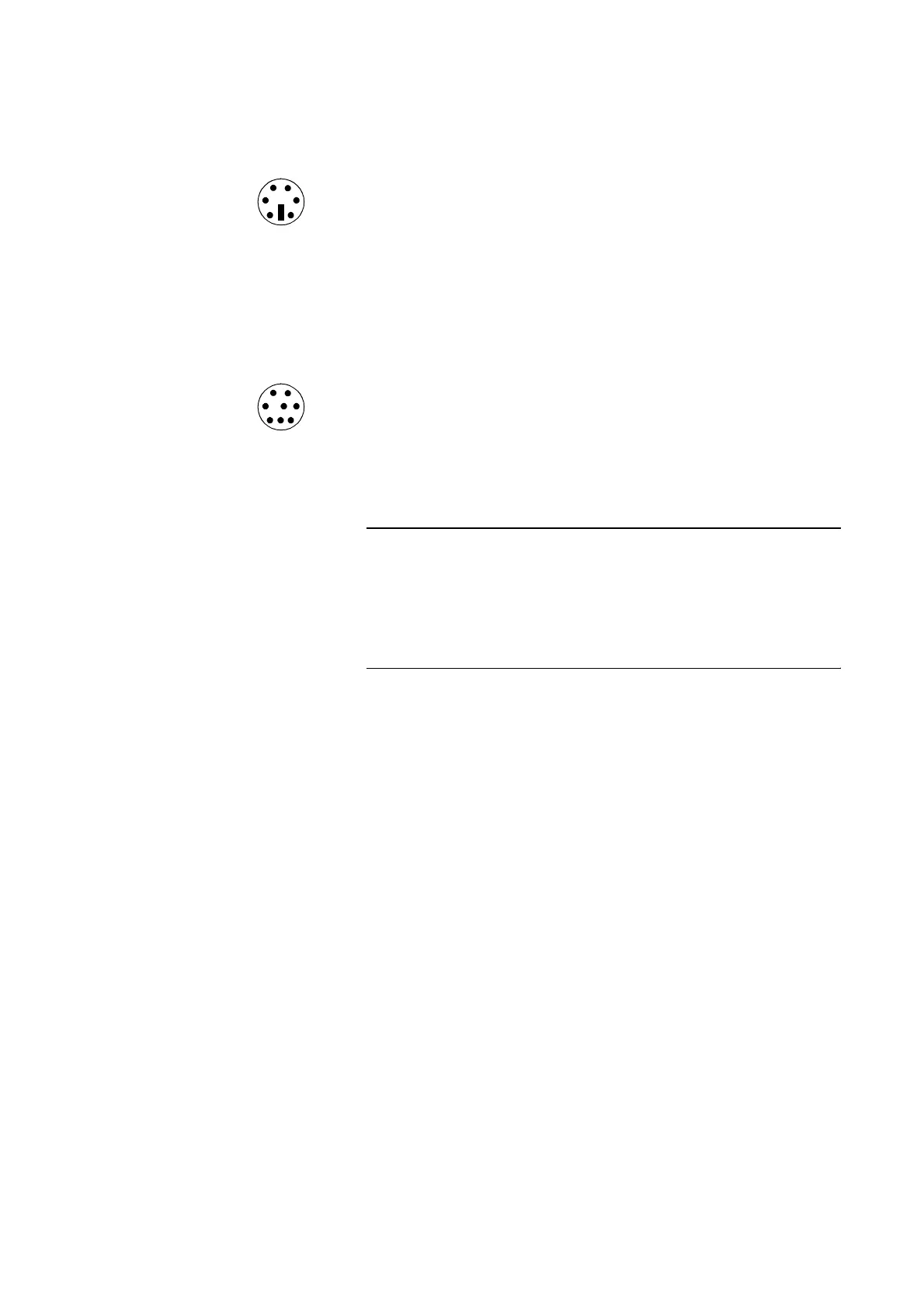

Power supply connector:
6-pole PS/2 connector, male
Assignment:
Pin 2: GND
Pin 5: +5V
Keypad connector:
8-pole MINI DIN connector, male
Assignment:
Pin 2: RX Data
Pin 3: GND
Pin 5: +5V
Pin 8: TX Data
A4.2 LCD Display
2 x 20 characters
illuminated
A4.3 Mains power supply unit:
5V, max. 1500 mA
Connector:
6-pole PS/2 connector, female
Pin Assignment:
Pin 2: GND
Pin 5: +5V
