APPENDIX 3 HARD DISK INSTALLATION
Note: It’s necessary to install a hard disk first before firmware upgrade to ensure the upgrade process
works properly.

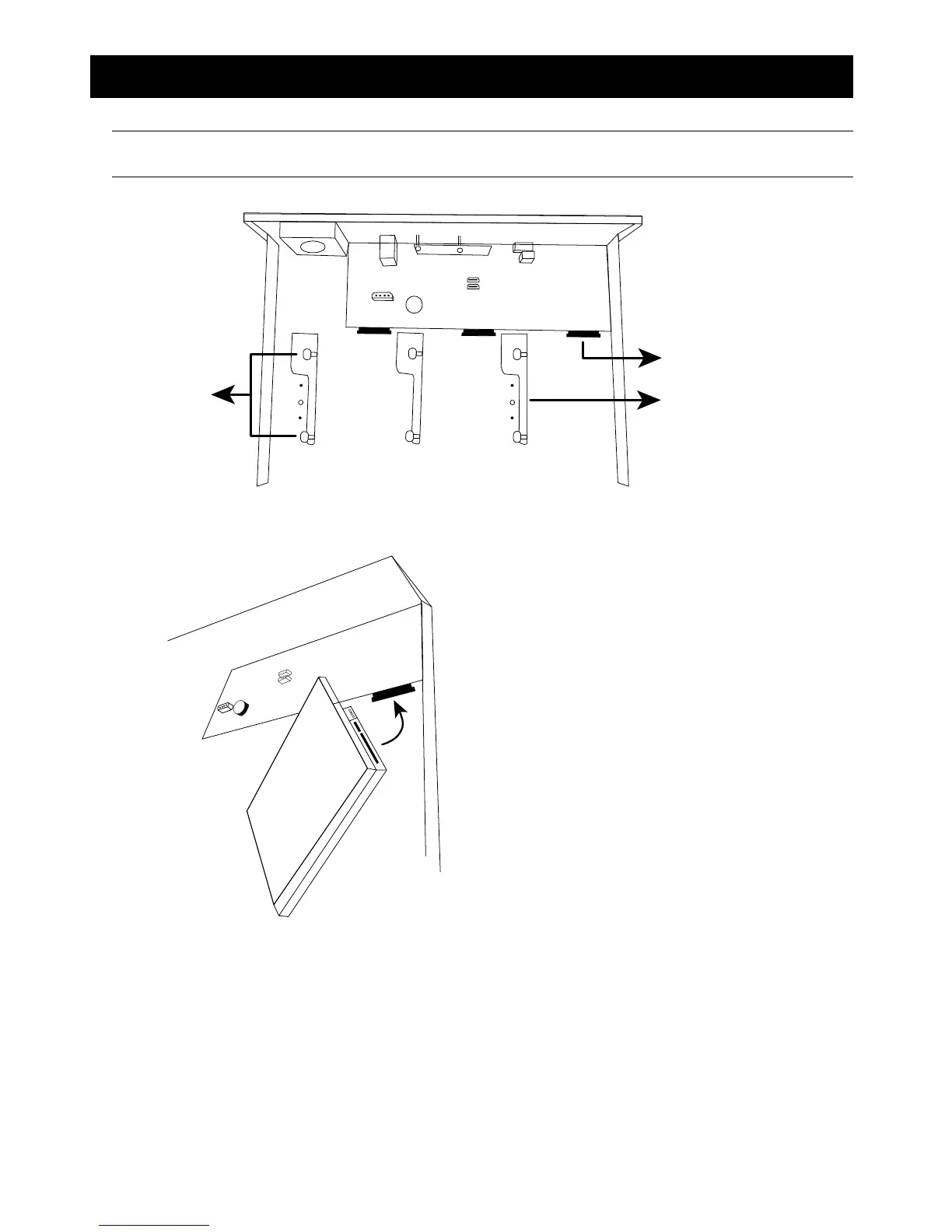

Step1: Remove the top cover, and find the hard disk connector and bracket in the device.
CR2032
Bracket
Hard Disk
Connecto
r
Bracket
Screws
Step2: Get a compatible hard disk. With the PCB side facing down, insert the hard disk to one of the hard disk
connector.
