XF40-Q2901Explosion-ProtectedTemperatureAlarmCamera

Aboutdetectors

4.IfdetectiontypeAbove(A)orBelow(B)isselected:EnteraDelayTime(D)inseconds.

Note

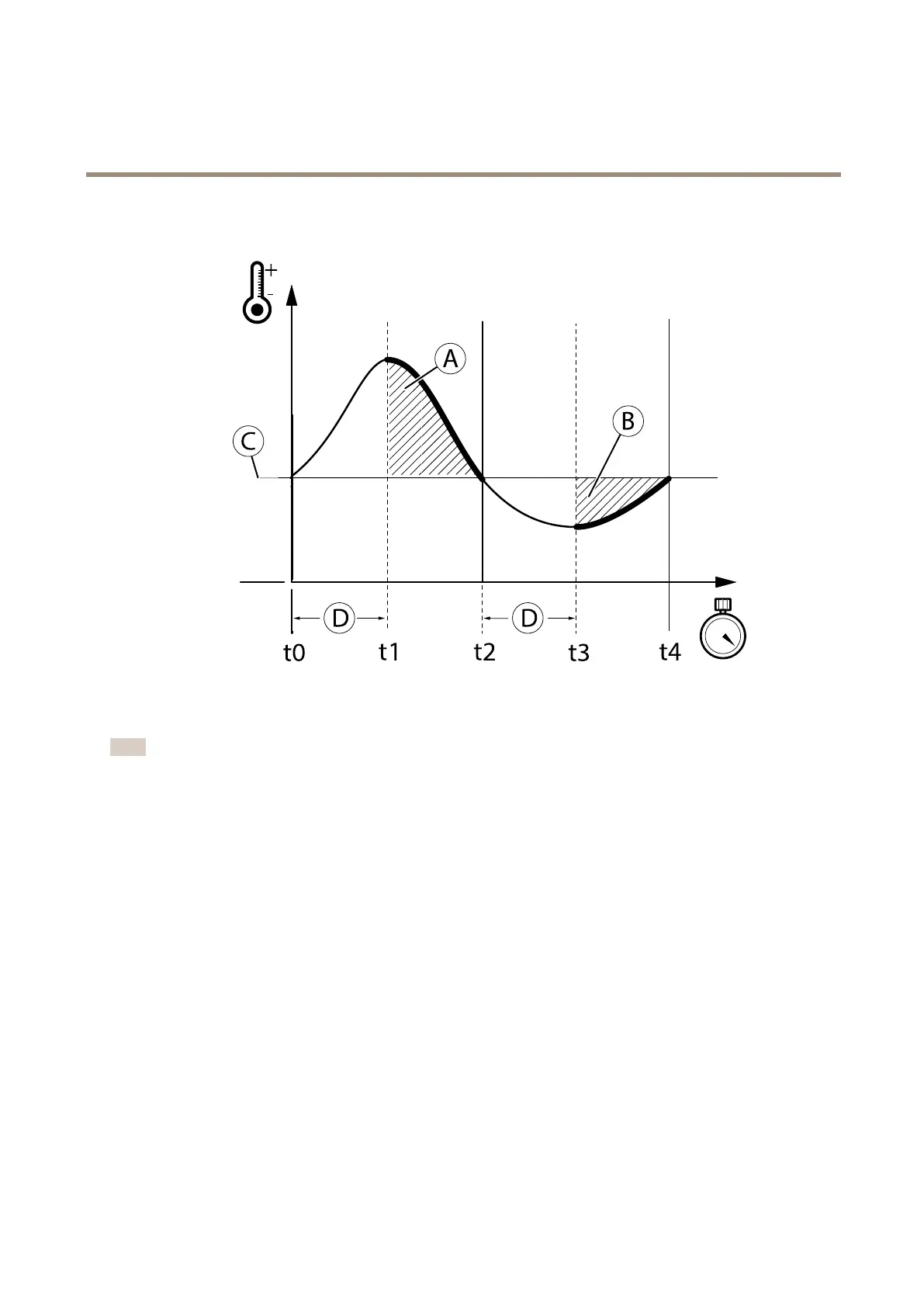

AlarmsaretriggeredaftertheDelaytime(D)haselapsed.Intheexample,anAbovealarmistriggeredbetweent1andt2.A

Belowalarmistriggeredbetweent3andt4.

5.ClickSavetosaveyoursettings.

ShowandHideDetectionZones-

•Toviewallthedetectionzones,selectViewAllZones.

•Toviewonlyonedetectionzone,selectthezoneunderZoneNameandclickViewSelectedZone.

DetectionZoneColors-

•Thebluerectangleimpliesthatyouhaveselectedadetectionzoneforediting.

•Thegreenrectangleimpliesthatnotemperaturealarmhastriggeredinthezone.

•Theredrectangleimpliesthatatemperaturealarmhastriggeredinthezone.

MaterialEmissivityTable

Thefollowingtablelistsapproximatedemissivityvaluesforanumberofcommonmaterialtypes.

Formoreinformationaboutemissivity,seetheAXISWhitepaperRemotetemperaturemonitoringavailableatwww.axis.com
