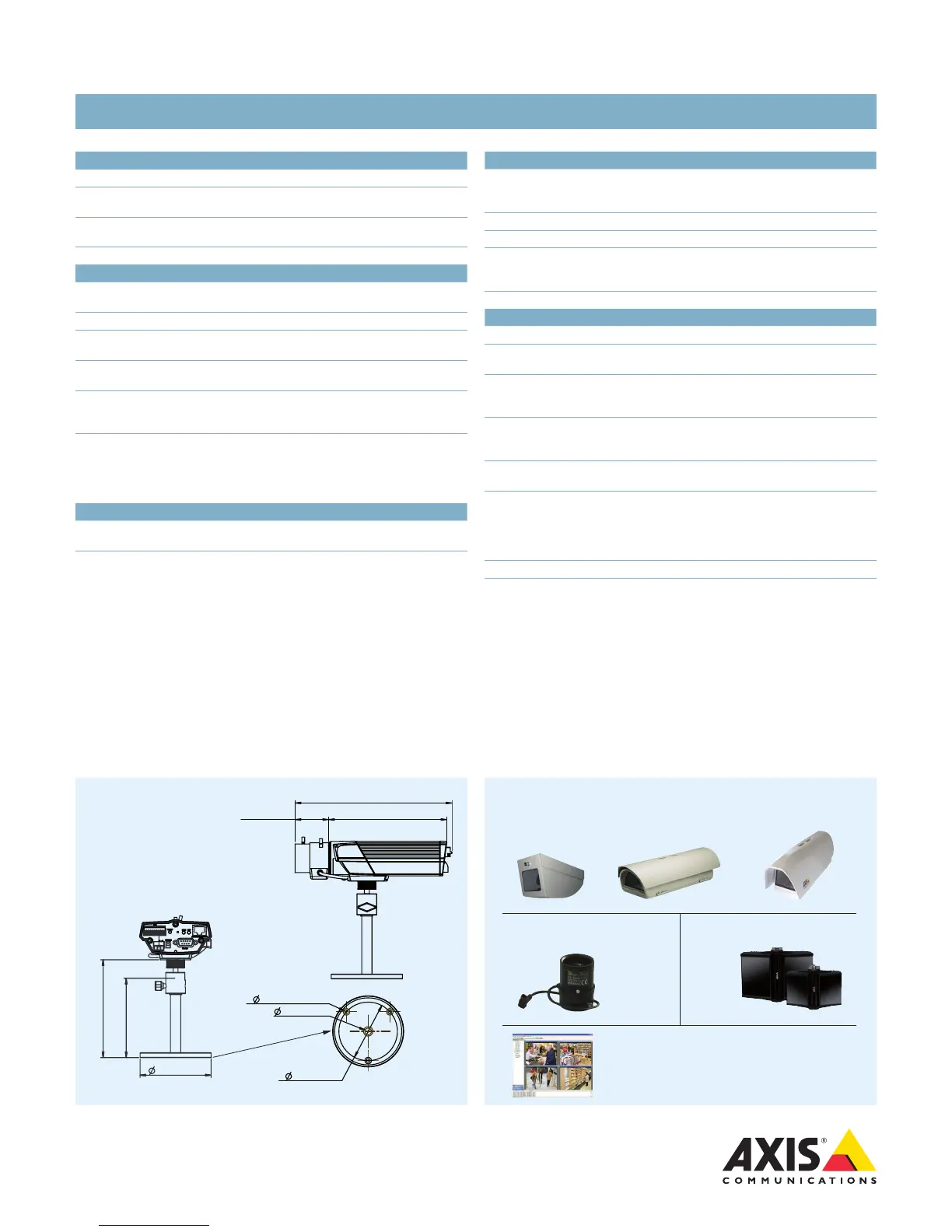

Axis 221 Datasheet

Technical specifications – AXIS 221 Network Camera
www.axis.com
©2008 Axis Communications AB. AXIS COMMUNICATIONS, AXIS, ETRAX, ARTPEC and VAPIX are registered trademarks or trademark applications of Axis AB
in various jurisdictions. All other company names and products are trademarks or registered trademarks of their respective companies. We reserve the right
to introduce modifications without notice.
32847/EN/R1/0810
Camera
Image sensor
1/3” Progressive scan RGB CCD
Lens
Varifocal 3.0 – 8.0 mm, F1.0, DC-iris, CS mount
Angle of view, horizontal: 35° – 93°
Minimum
illumination
Color: 0.65 lux, F1.0
B/W: 0.08 lux, F1.0
Shutter time
1/25000 s to 2 s
Video
Video
compression
MPEG-4 Part 2 (ISO/IEC 14496-2)
Motion JPEG
Resolutions
160x120 – 640x480
Frame rate
MPEG-4
Up to 30 fps at 640x480, 60 fps at 320x240
Frame rate
Motion JPEG
Up to 45 fps at 640x480, 60 fps at 480x360
Video streaming
Simultaneous MPEG-4 and Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR MPEG-4
Image settings
Compression, rotation, color, brightness, sharpness, contrast,
white balance, exposure control, exposure area, backlight
compensation, fine tuning of behavior at low light
Text and image overlay
Privacy mask
Network
Security
Password protection, IP address filtering, HTTPS encryption,
IEEE 802.1X network access control, user access log
Supported
protocols
IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour,
UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX®
from Axis Communications available at www.axis.com
Intelligent video
Video motion detection, active tampering alarm
Alarm triggers
Intelligent video, IR-cut filter, temperature and external input
Alarm events
File upload via FTP, HTTP and email
Notification via email, HTTP and TCP
External output activation
Video buffer
9 MB pre-and post alarm
General
Casing
Metal (aluminum)
Processors and
memory
ETRAX 100LX, ARTPEC-2, 32 MB RAM, 8 MB Flash
Power
7 – 24 V DC, max 5.5 W
10 – 24 V AC, max 7.5 VA
Power over Ethernet IEEE 802.3a, Class 2
Connectors
RJ-45 for 10BASE-T/100BASE-TX, DC jack
Terminal block for 2 alarm inputs, 1 output and RS485
D-sub for RS-232
Operating
conditions
0 – 50 °C (32 – 122 °F)
Humidity 20 – 80% RH (non-condensing)
Approvals
EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B,
VCCI Class B, C-tick AS/NZS CISPR22, ICES-003 Class B,
EN 60950-1
Power supply: EN 60950-1, UL, cUL
Weight
550 g (1.2 lb.)
Included
accessories
Installation Guide, CD with User’s Manual, recording software,
installation and management tools, mounting and connector kits,
power supply, Windows decoder 1-user license
Dimensions Optional accessories
Lenses T90A IR Illuminators
Various housings
More information is available at www.axis.com
For information on AXIS Camera Station and
video management software from
Axis’ Application Development Partners, see
www.axis.com/products/video/software/
192 mm (7.6”)
145 mm (5.7”)41 mm (1.6”)
120 mm (4.7”)
97 mm (3.8”)
87 mm (3.4”)
4.5 mm (0.2”)
8 mm (0.3”)
72 mm (2.8”)
192 mm (7.6”)
145 mm (5.7”)41 mm (1.6”)
120 mm (4.7”)
97 mm (3.8”)
87 mm (3.4”)
4.5 mm (0.2”)
8 mm (0.3”)
72 mm (2.8”)
192 mm (7.6”)
145 mm (5.7”)41 mm (1.6”)
120 mm (4.7”)
97 mm (3.8”)
87 mm (3.4”)
4.5 mm (0.2”)
8 mm (0.3”)
72 mm (2.8”)

Axis 221 Specifications

General

Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	MPEG4
Camera shutter speed	1/25000 - 2 s
Minimum illumination	0.08 lx
Sensor type	CCD
Progressive scan	Yes
Optical sensor size	1/3 \
Optical zoom	- x
Focus adjustment	1.0
Focal length range	3 - 8 mm
Built-in HDD	No
Flash memory	8 MB
Internal memory	32 MB
Type	IP security camera
Certification	EN 55022 B, EN 55024, EN 61000-3-2, EN 61000-3-3, \\r EN 61000-6-1, EN 61000-6-2, FCC 5 B B, \\r VCCI B, C-tick AS/NZS CISPR22, ICES-003 B, \\r EN 60950-1
Placement supported	Indoor
Connectivity technology	Wired
Form factor	Bullet
Product color	Gray
Housing material	Aluminum
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T(X)
Supported network protocols	IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
AC input voltage	24 V
Power source type	PoE
Power consumption (typical)	7.5 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Compliance industry standards	IEEE 802.3a

Weight and Dimensions

Weight	550 g
