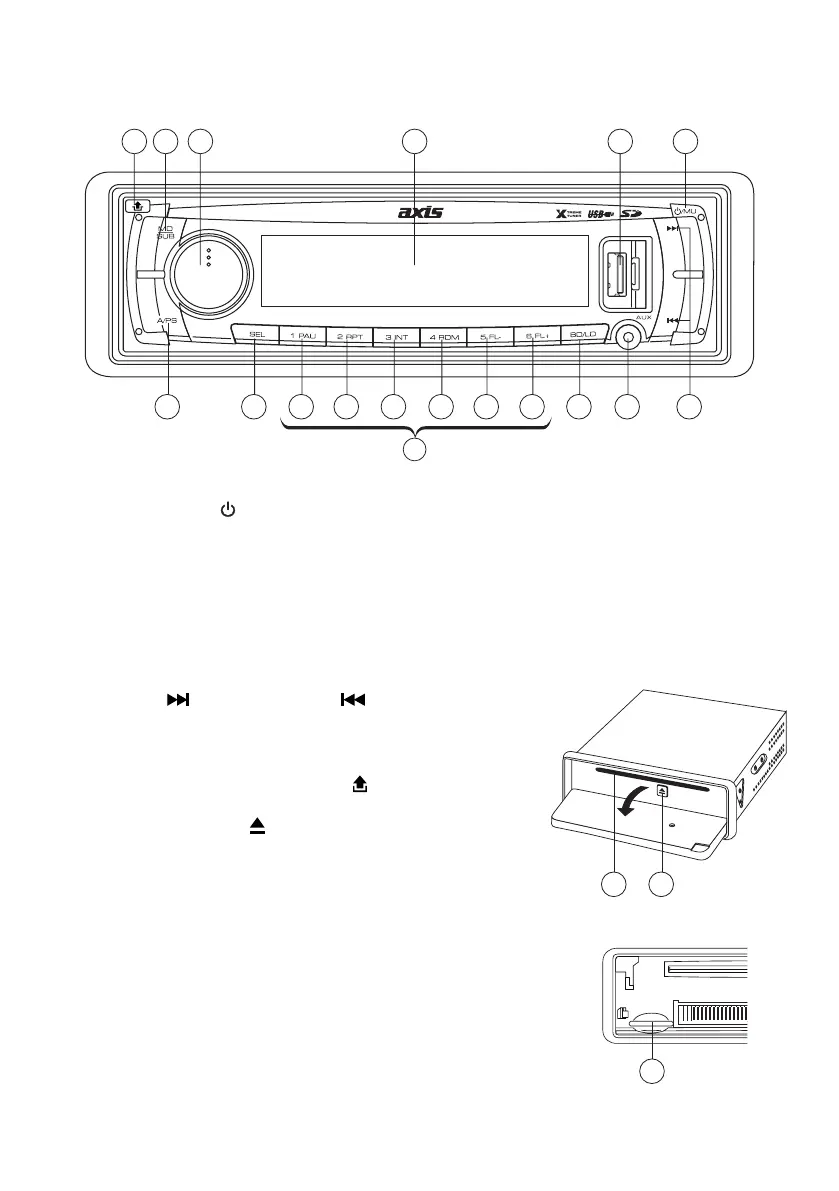

LOCATION OF PARTS AND CONTROLS
1. POWER ON/OFF ( ) / MUTE (MU)
2. FUNCTION SELECT BUTTON: BASS/TREBLE/BALANCE/FADER /
DISP/LOCAL/STEREO/BEEP/ADJ TIME/AUDIO DSP (SEL)
3. VOL UP/VOL DOWN FOR BASS/TREBLE/BALANCE/FADER /
DISP/LOCAL/STEREO/BEEP/ADJ TIME/AUDIO DSP
4. PRESETSTATIONS(1,2,3,4,5,6)
5. MODE / SUBWOOFER BUTTON (MD/SUB)
6. BAND / LOUDNESS BUTTON (BD/LD)
7. AUTOMATIC OR MANUAL TUNING
(FREQ UP OR FREQ DOWN /
CD TRACK/SEARCH BUTTON
8. AUTO SEEK SEARCH TUNING (A/PS)
9. LCD DISPLAY
10. OPEN PANEL RELEASE BUTTON ( )
11. CD SLOT
12. CD EJECT BUTTON ( )
13. PAUSE BUTTON (PAU)
14. REPEAT BUTTON (RPT)
15. INTRO BUTTON (Preview all Tracks) (INT)
16. RANDOM BUTTON (RDM)
17,18.SEARCHPREVIOUS/NEXTFOLDER(FL-/FL+)
19. USB PORT
20. SD/MMC CARD SLOT
21. AUX IN
