20. Serial port parameters setting (F..-rS)
The function enables to set the
following transmission parameters
(standard parameters underlined):
- transmission speed (bAud: 1200,
4800, 9600),
- the number of bits in a byte (bit: 7,
8),
- parity control (PArItY: 0, 1; Odd: 0,
1),
- network number when working in
multistand computer system (when
working as a single scale the value
should be “0”)
- continuous transmission – without
using key, approx. 10 results per
second (SEnd: 0, 1).
Default parameters underlined.

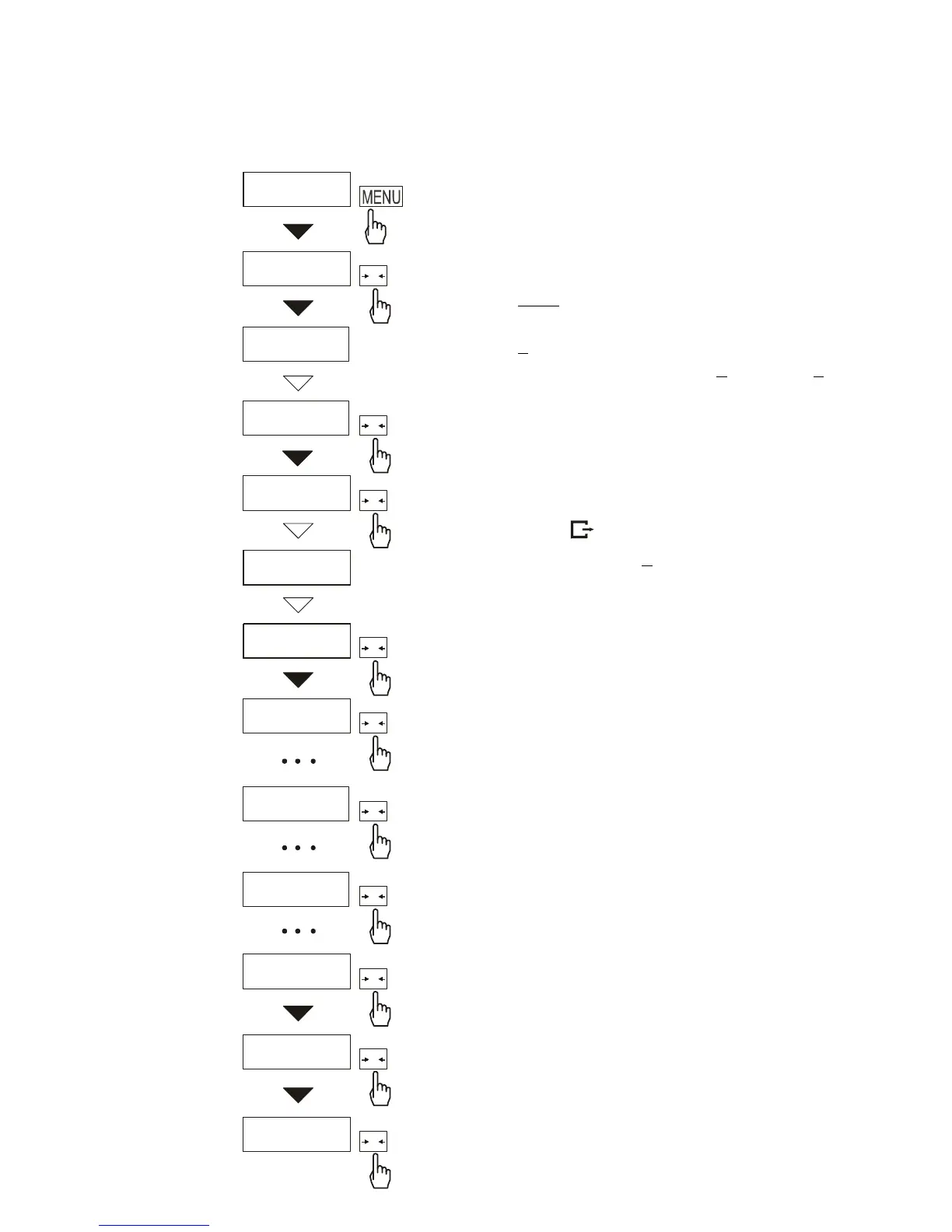

To set desired transmission
parameters activate F.._rS function,
choose appropriate parameter and
press → T ← key to accept needed
parameter value. The example at the
left presents how to set transmission
speed value to 9600bps.
To leave the function choose out
option.
