Axis I8016-LVE - 12 V Fail-Secure Lock Powered by Poe from Intercom; 12 V Fail-Secure Lock Powered by External Power Supply

AXISI8016-LVENetworkVideoIntercom
Connectequipment
12VFail-securelockpoweredbyPoEfromintercom

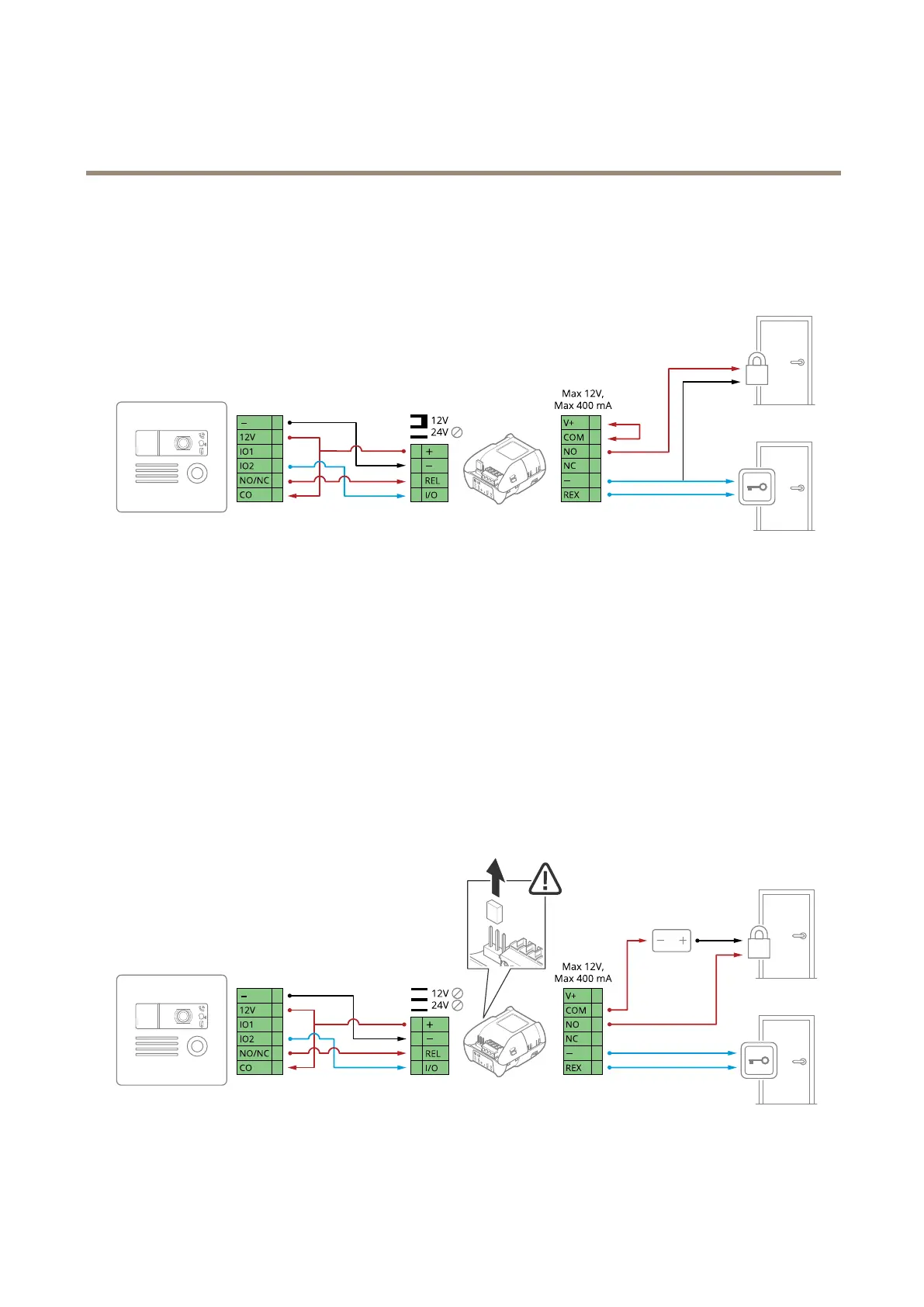

Wiringdiagram
Conguration
1.Tocheckrelaystate,gotoHardware>I/Oports>Relays.
2.ClickEdit.
3.Dependingonyourlocktype,setNormalstateto:
-Opencircuitforafail-securelock
-Closedcircuitforafail-safelock
4.ClickSave.
12VFail-securelockpoweredbyexternalpowersupply
Wiringdiagram
