Axis M1034-W User Manual

AXISM1034-WNetworkCamera

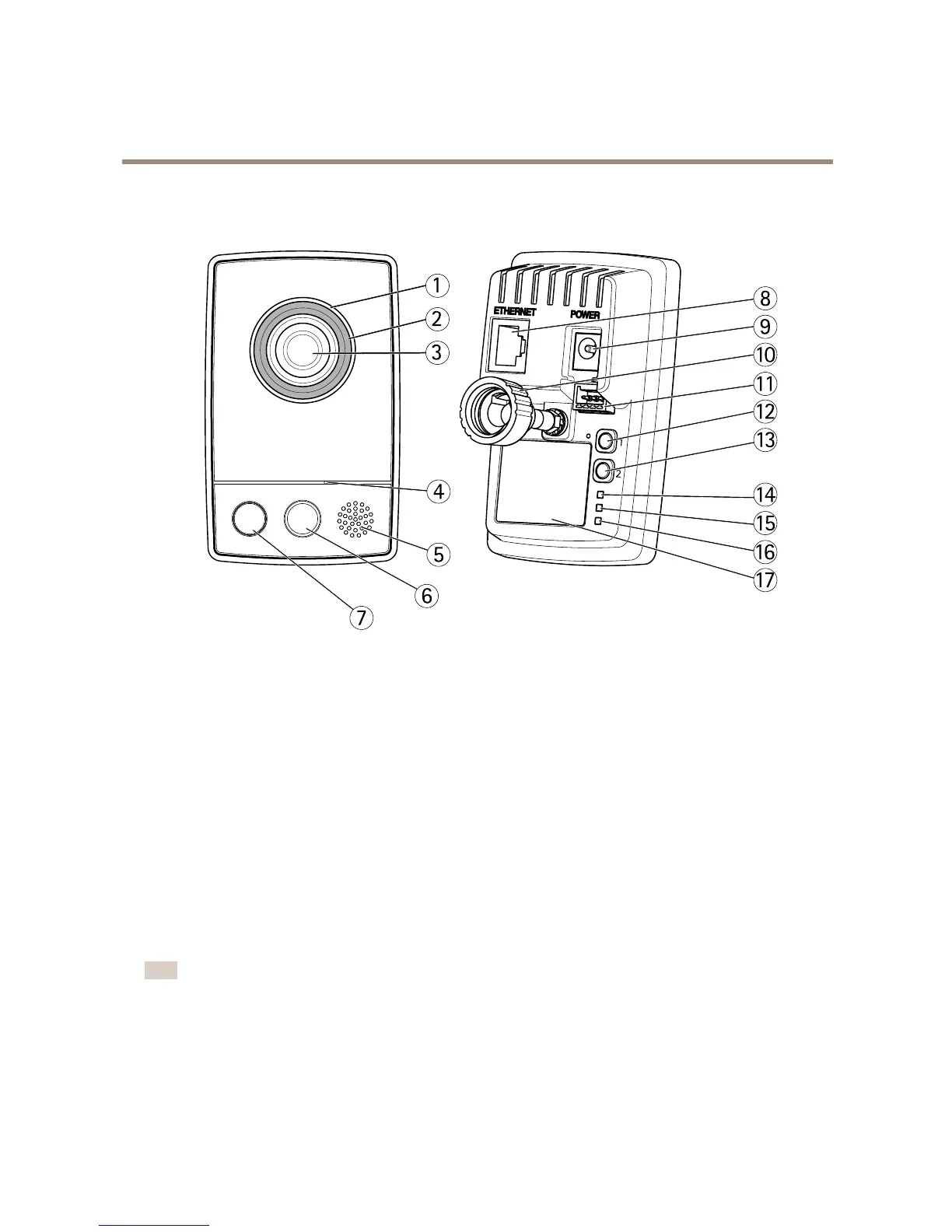

HardwareOverview
HardwareOverview
1
StatusLEDindicator
2
Focusring
3
Lens
4
Microphone
5
Speaker
6
PIRsensor
7
Light(whiteilluminationLED)
8
Networkconnector(RJ-45)
9
Powerconnector
10
Lockring
11
I/Oterminalconnector
12
Controlbutton
13
WLANpairingbutton
14
PowerLEDindicator
15
NetworkLEDindicator
16
WirelessLEDindicator
17
Partnumber(P/N)&Serialnumber(S/N)
TheAxisproductisequippedwithalenswithmanualfocus.Itisdeliveredwiththelensprefocusedandmanualfocusingis
usuallynotrequired.
Note
Onlychangethefocusifrequired,forexampleiftheimageisblurry.
ConnectorsandButtons
Fortechnicalspecications,seepage61.
8

Axis M1034-W Specifications

General

Brand	Axis
Model	M1034-W
Category	Security Camera
Language	English
