Axis P12 User Manual

AXISP1204NetworkCamera

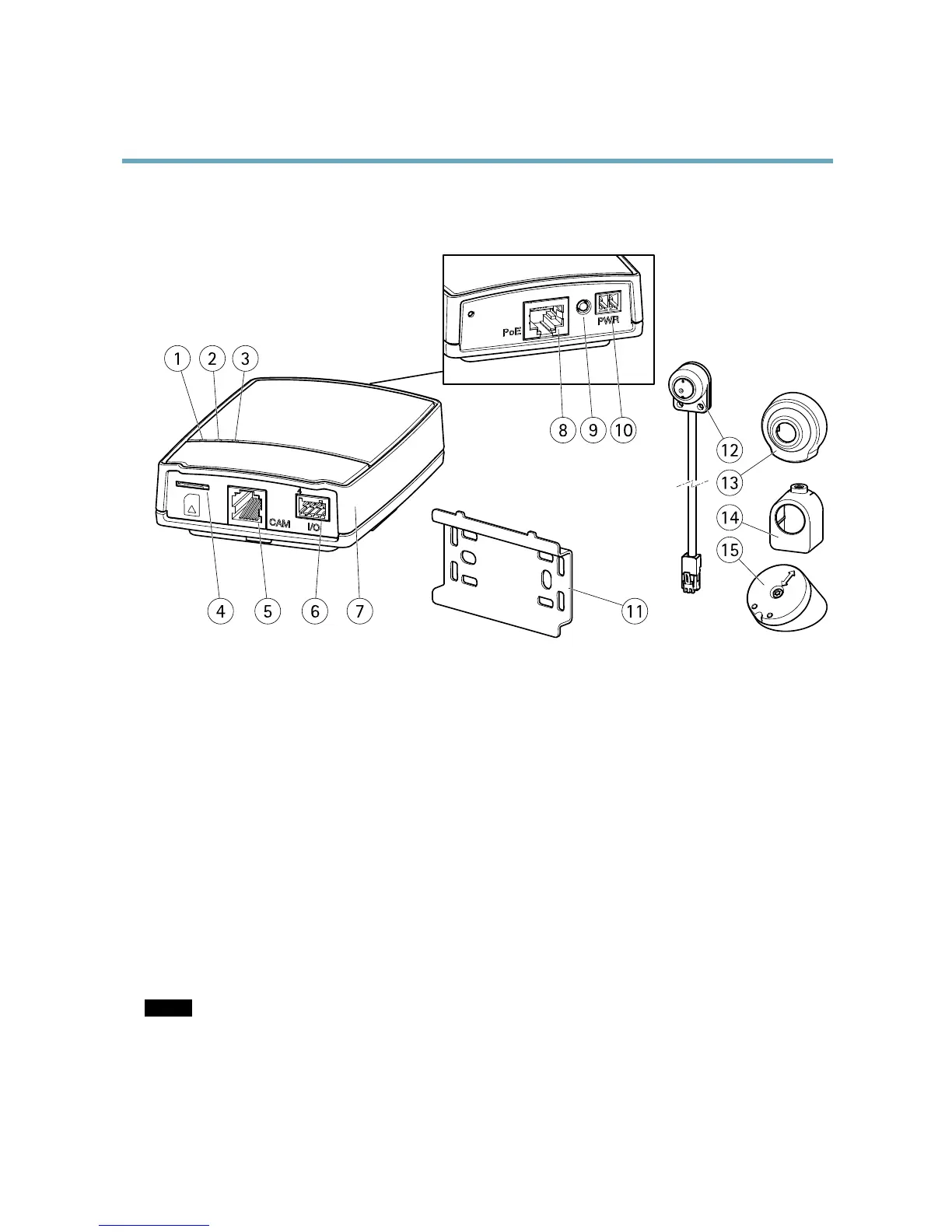

HardwareOverview
HardwareOverview
10
11
98
7
321
654
12
13
14
15
1
PowerindicatorLED
2
StatusindicatorLED
3
NetworkindicatorLED
4
SDcardslot(microSDcard)
5
Cameraconnector
6
I/Oterminalconnector
7
Mainunit
8
Networkconnector
9
Controlbutton
10
Powerconnector
11
Mountingrail
12
Sensorunit
13
Cover
14
Straightmountingbracket
15
Angledmountingbracket
Connectors
Fortechnicalspecications,seepage45.
Networkconnector-RJ45Ethernetconnector.SupportsPoweroverEthernet(PoE).
NOTICE NOTICE
NOTICE
Theproductshallbeconnectedusingashieldednetworkcable(STP).Allcablesconnectingtheproducttothenetworkswitch
shallbeshielded(STP)andintendedfortheirspecicuse.Makesurethatthenetworkswitchisproperlygrounded.For
informationaboutregulatoryrequirements,see.
SDcardslot-Astandardorhigh-capacitymicroSDcard(notincluded)canbeusedforlocalrecordingwithremovablestorage.
4

Axis P12 Specifications

General

Lens	Fixed
Day/Night Function	Yes
Power over Ethernet (PoE)	Yes
Sensor Type	CMOS
Minimum Illumination	0.05 lux at F1.4 (B/W)
Video Compression	H.264, Motion JPEG
Audio Support	Yes
Audio Compression	AAC, G.711, G.726
Ethernet	10/100 Mbps
Ethernet Ports	1
Power over Ethernet	IEEE 802.3af
Operating Temperature	-10°C to 50°C (14°F to 122°F)
