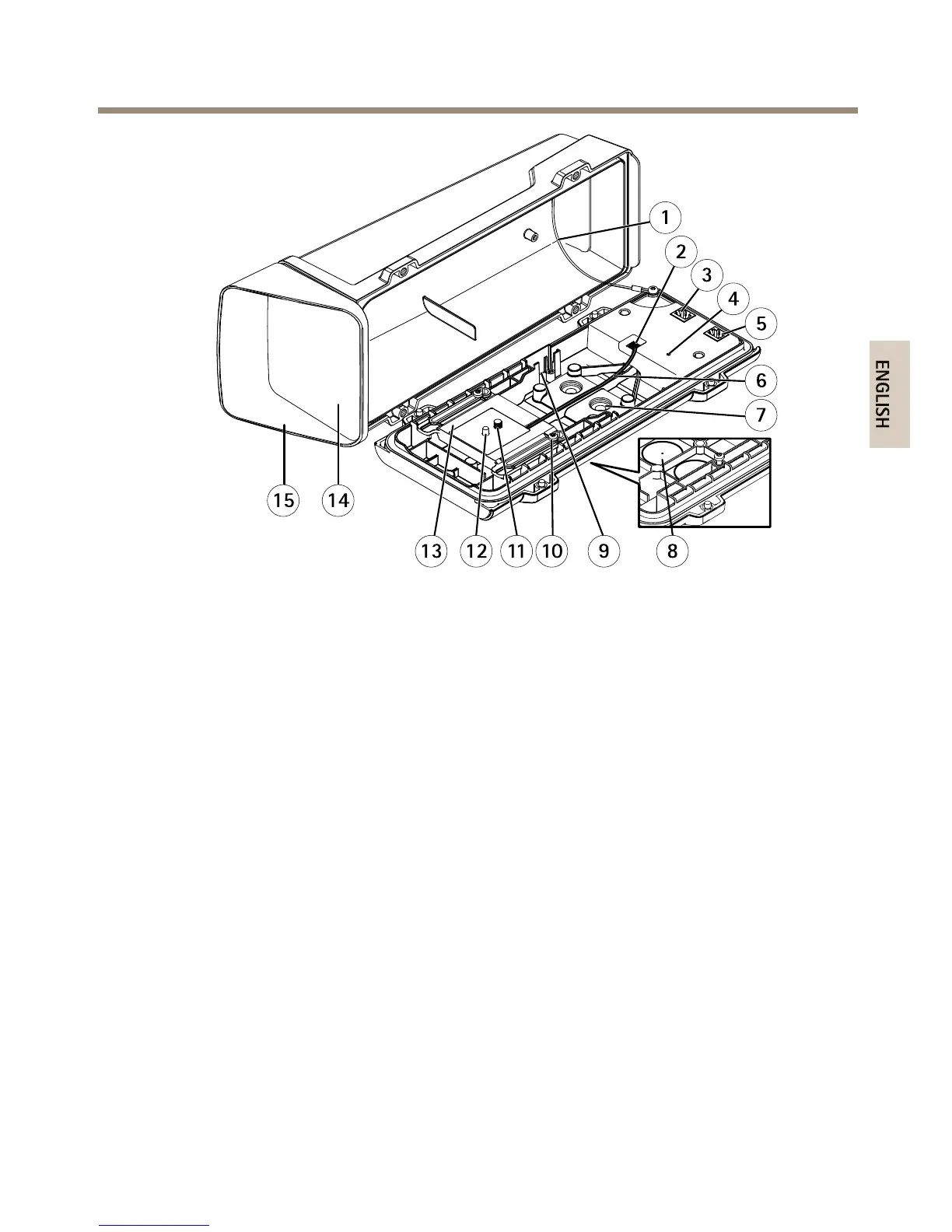

AXISP1365-ENetworkCamera
15 14
13 12 11 10 9
5
4
3
6
8
7
2
1
1
Safetywire
2
Heaterconnector
3
Networkconnector(PoEOUT)
4
StatusLEDindicator
5
Networkconnector(PoEIN)
6
Heatercable
7
CablegasketM20(2x)
8
Drill-out(2x)
9
Slotforintrusionalarmswitch–supportsAXISDoorSwitchA(soldseparately)
10
HolderscrewT20(2x)
11
CamerascrewT20
12
Pin
13
Holder
14
Window
15
Topcover
11
