AXISP5624-EMkIIPTZDomeNetworkCamera
HardwareOverview
HardwareOverview
Forspecicationsofthehardwarecomponents,seeTechnicalSpecicationsonpage62.
NO NO
NO
TICE TICE
TICE
Makesurethedomeisattachedinoperationmode,otherwisefocusmaybeaffected.

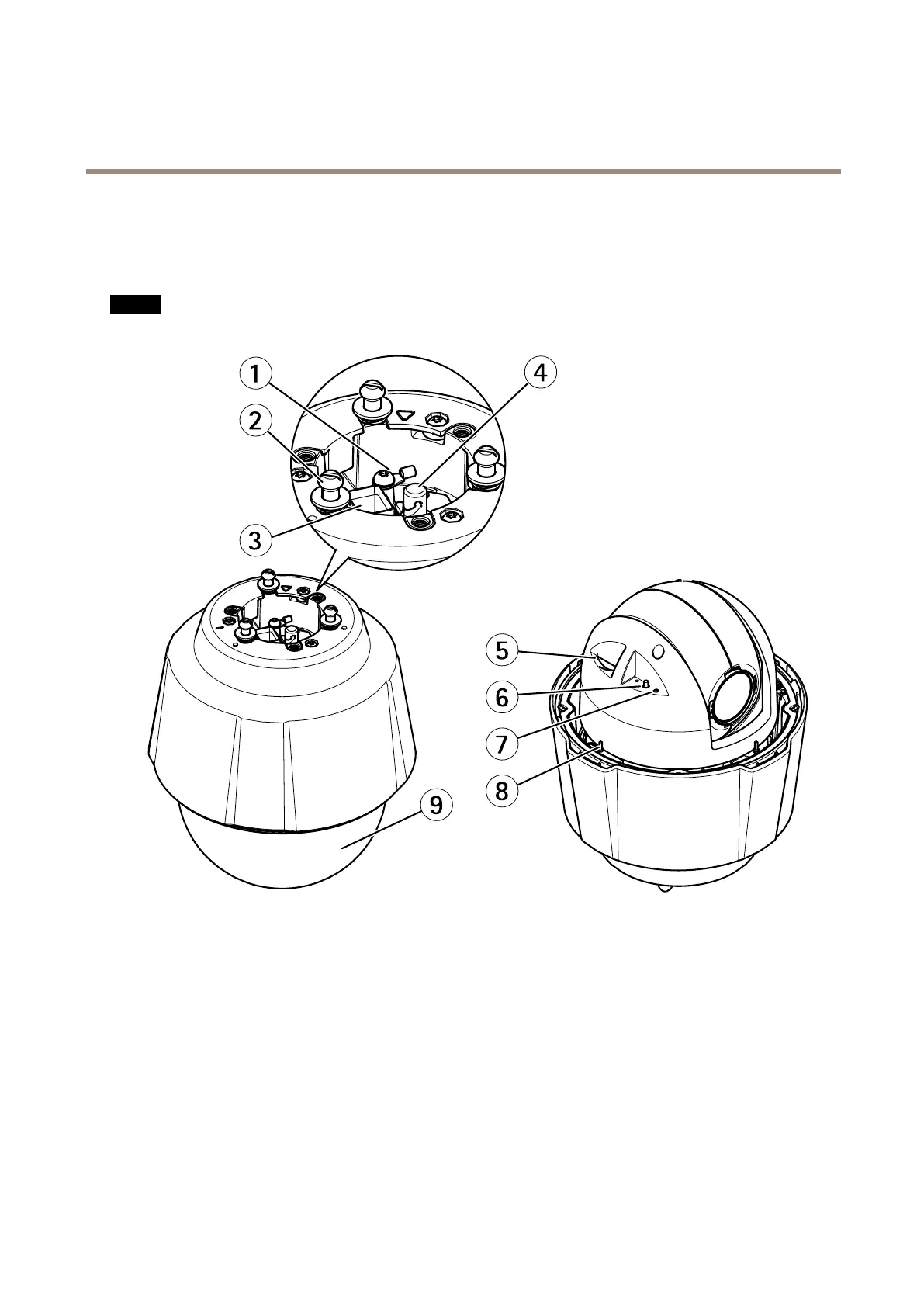

1
Groundscrew
2
Mountingscrews(3)
3
Networkconnector(PoE+)
4
Hookforsafetywire
5
SDmemorycardslot
6
Controlbutton
7
StatusLEDindicator
8
Powerbutton
9
Dome
ConnectorsandButtons
NetworkConnector
RJ45EthernetconnectorwithPoweroverEthernetPlus(PoE+).
