AXISP5635–EPTZDomeNetworkCamera
RepaintingtheCamera
RepaintingtheCamera
Thetopcovercanberepaintedtomatchtheinstallationenvironment.
ThematerialusedinthecoversisASA+PC.Usepaintsuitableforthismaterial.
1.Removethethreemountingscrews.
2.Removethethreetopcoverscrews(T20)andremovethetopcover.
3.Repaintthetopcover.
4.Assemblethetopcover.Usethetriangularmarking(4)topositionitcorrectly.
5.Fastenthetopcoverscrews(3)withatorqueof2.5Nm(T20).
6.Fasteneachofthemountingscrews(1)equally,withatorqueof2.5Nmatthepositionsmarkedwithdots.Itisvery
importanttotightenallthescrewscarefullytopreventthecamerafromvibratingduringoperation.
3
1
3
4
1
2
3
1
1

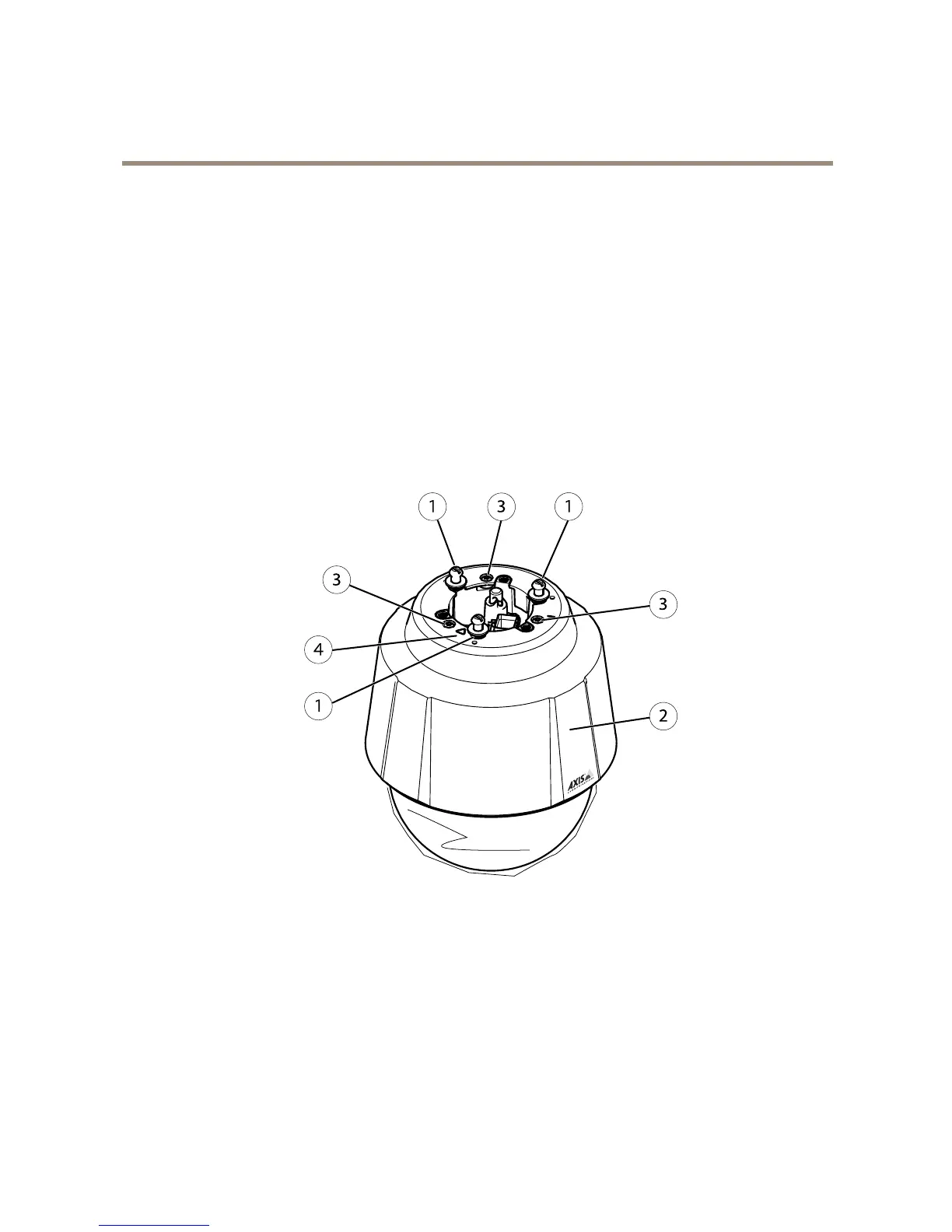

Mountingscrews(3)
2
Topcover
3
Topcoverscrews(3)
4
Guidekey
