Axis P5635-E - Hardware Overview and Components; Connectors and Buttons

AXISP5635–EPTZDomeNetworkCamera
HardwareOverview
HardwareOverview
NO NO
NO
TICE TICE
TICE
Makesurethedomeisattachedinoperationmode,otherwisefocusmaybeaffected.
1
2
4
5
6
7
8
9
10
3

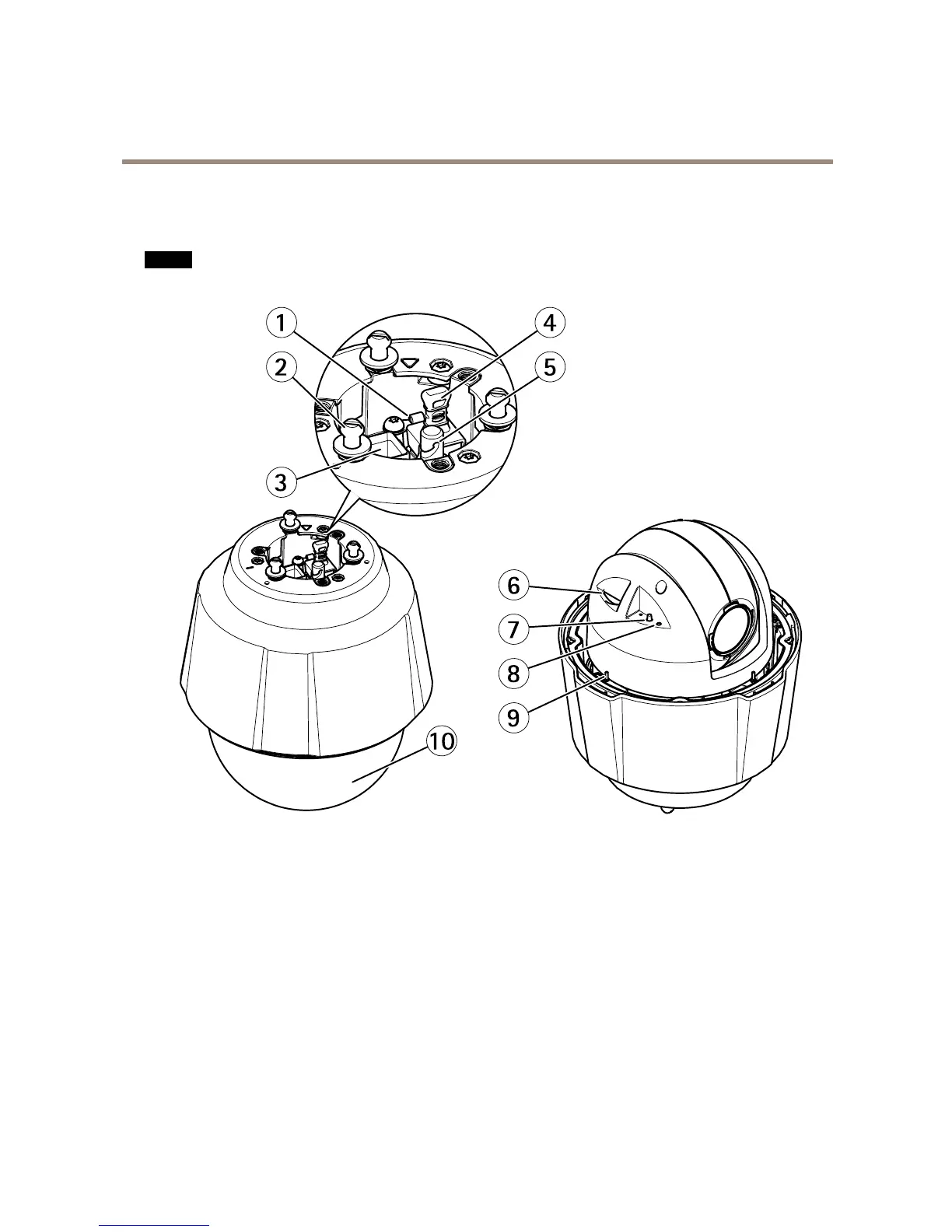

1
Groundscrew
2
Mountingscrews(3)
3
Networkconnector(PoE+)
4
Multi-connectorwithcover(DonotremovethecoverunlessanI/O-cableisconnected)
5
Hookforsafetywire
6
SDmemorycardslot
7
Controlbutton
8
StatusLEDindicator
9
Powerbutton
10
Dome
ConnectorsandButtons
Fortechnicalspecications,seepage64.
