Page 16 AXIS P8221 Installation Guide

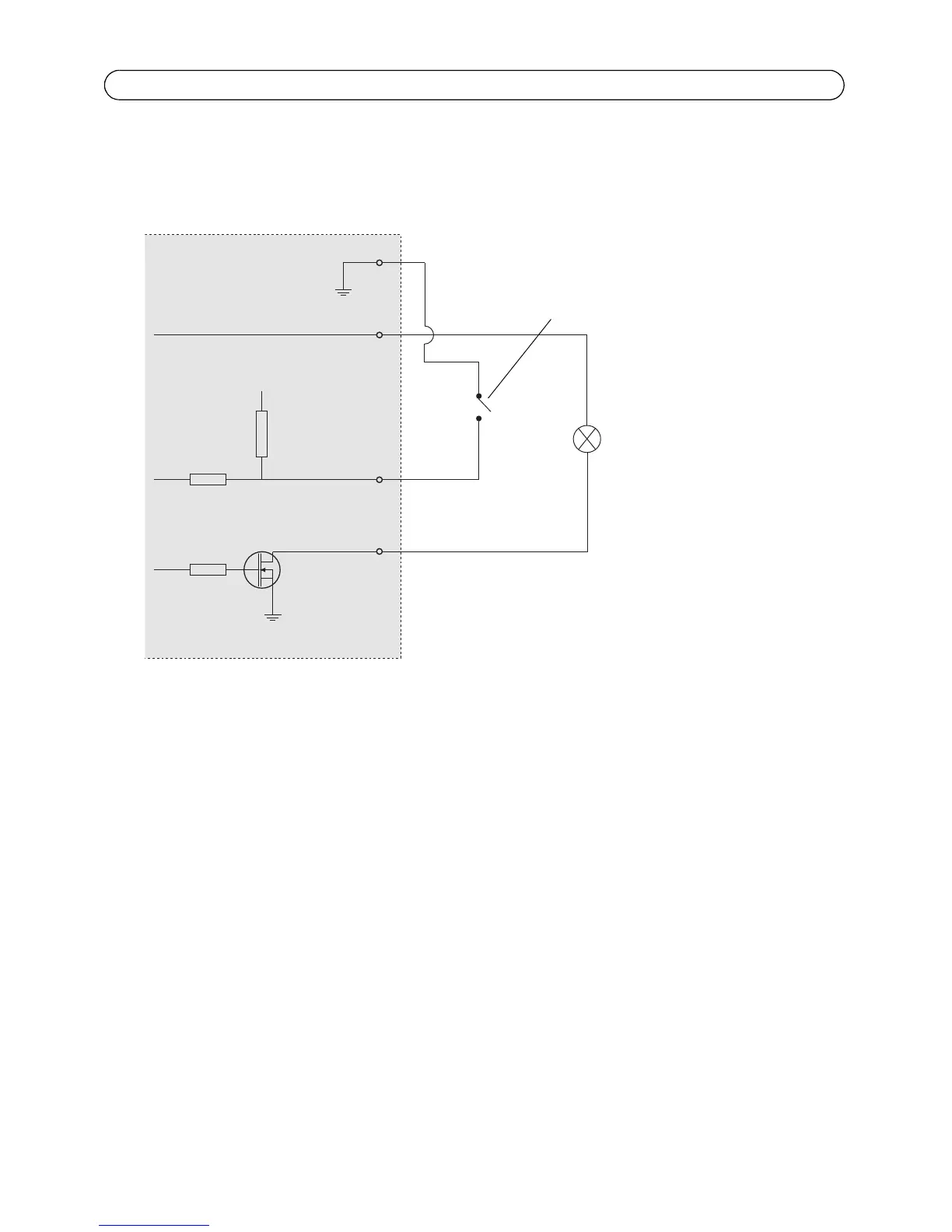

Connection diagram

The following connection diagram gives an example of how to connect an auxiliary device to the

I/O terminal connectors.

AXIS P8221

E.g. push button

3.3 V

I/O 4 configured as output

I/O 3 configured as input

3.3 V max 250 mA

Other manuals for Axis P8221

Need help?

Do you have a question about the Axis P8221 and is the answer not in the manual?

General

Relay Outputs	2
Digital Inputs	4
Enclosure	Plastic
Audio Output	Terminal block for one balanced audio output
Power over Ethernet	Yes
Connectors	Terminal block
Power	PoE (IEEE 802.3af)
Protocols	HTTP, HTTPS, SSL/TLS, IPv4, IPv6, Bonjour, UPnP, QoS, SNMP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, DNS
Network Interface	10/100 Mbit/s Ethernet
Output channels	2
Input type	Digital, audio
Maximum load voltage per output	30 V DC
Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Dimensions (alternative)	4.3 x 2.9 x 1.4 in
Weight (alternative)	0.3 lb
