Axis Q1604 Installation Guide
4
of 1
of 1 rating
106 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
P
a
g
e
6
A
X
I
S
Q
1
6
0
2
/
Q
1
6
0
4
N
e
t
w
o
r
k
C
a
m
e
r
a
I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e

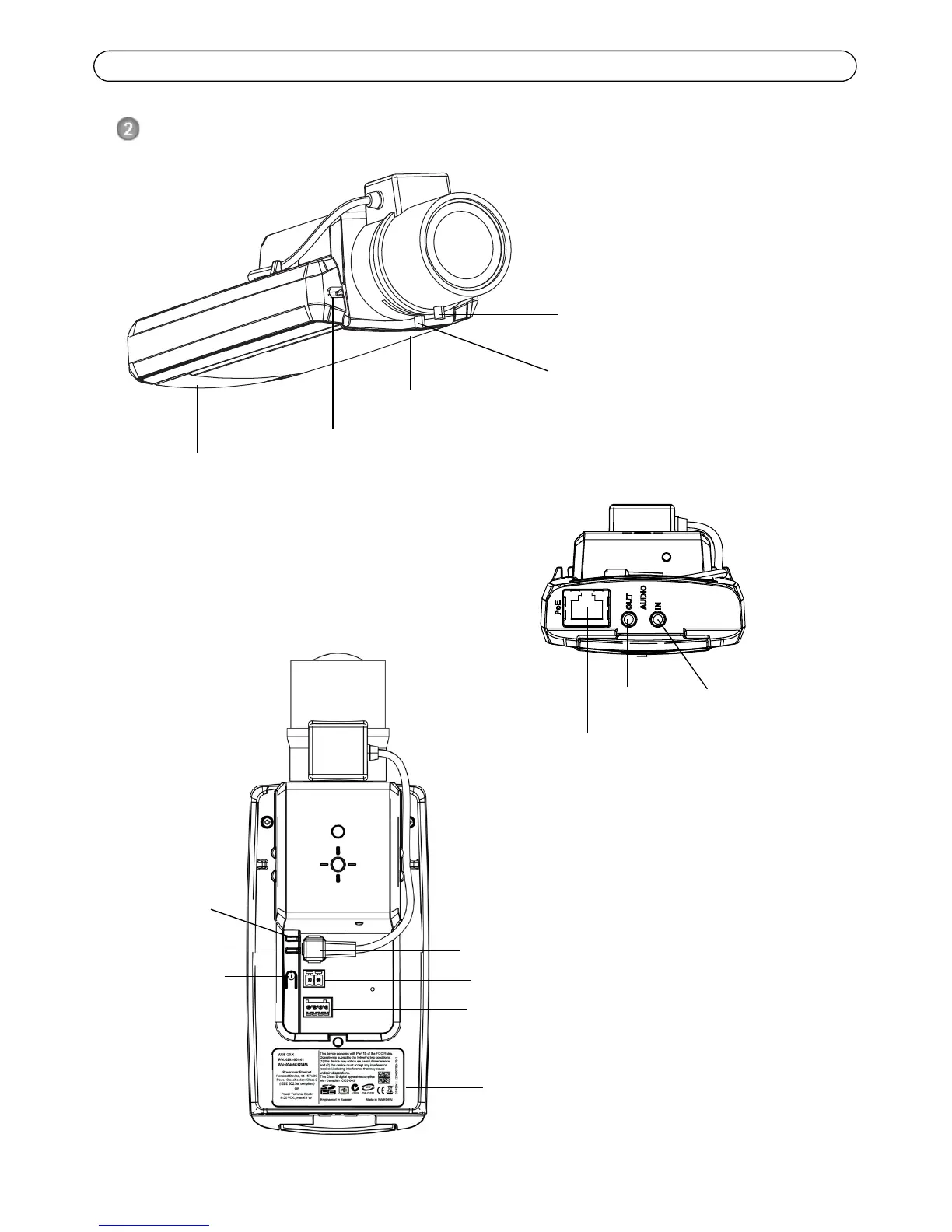

Hardware overview
Network connector (PoE)
Focus puller
Status LED
Power LED
Network LED
Product number (P/N) &
Serial number (S/N)
Top view
Rear view
Control button
I/O terminal connector
Power connector
Audio in
Audio out
SD memory card slot
Zoom puller
Internal microphone
Iris connect
or
5
7
Table of Contents
Electromagnetic Compatibility (EMC)
2
Equipment Modifications
2
About this Document
2
Legal Considerations
2
Battery Replacement
3
Installation Steps
5
Package Contents
5
Installation Guide
5
Hardware Overview
6
Rear View
6
Top View
6
Install the Hardware
7
Cold Start-Up Delay Switch
7
Assign an IP Address
8
AXIS IP Utility - Single Camera/Small Installation
9
AXIS Camera Management - Multiple Cameras/Large Installations
10
Automatic Discovery
10
Set the Password
11
Adjust Zoom and Focus
13
Focus Assistant
14
Unit Connectors
17
Led Indicators
19
Resetting to the Factory Default Settings
19
Accessing the Camera from the Internet
20
Further Information
20
Mesures de Sécurité
22
Remplacement des Piles
22
Procédure D'installation
23
Contenu de L'emballage
23
Description du Matériel
24
Vue Arrière
24
Vue de Dessus
24
Installation du Matériel
25
Commutateur de Report de Démarrage À Froid
25
Attribution D'une Adresse IP
26
AXIS Camera Management : Plusieurs Caméras / Grandes Installations
28
Détection Automatique
28
Configuration du Mot de Passe
30
Réglage du Zoom Et de la Mise Au Point
33
Assistant de Mise Au Point
34
Autres Méthodes de Définition de L'adresse IP
36
AXIS Video Hosting System (AVHS)
36
Connecteurs de L'appareil
38
Voyants Lumineux
40
Rétablissement des Paramètres D'usine Par Défaut
40
Accès À la Caméra Sur Internet
41
Informations Complémentaires
41
Installation der Hardware
47
Schalter für Kaltstartverzögerung
47
Zuweisen einer IP-Adresse
48
AXIS IP Utility - Einzelne Kamera/Kleine Installation
49
AXIS Camera Management - Mehrere Kameras/Große Installationen
50
Automatische Erkennung
50
Festlegen des Kennworts
52
Zoom und Bildschärfe Einstellen
55
Andere Methoden zum Festlegen der IP-Adresse
58
AXIS Video Hosting System (AVHS)
58
LED-Anzeigen
62
Wiederherstellen der Werkseitigen Standardeinstellungen
62
Zugriff auf die Kamera über das Internet
63
Weitere Informationen
63
Sostituzione Della Batteria
64
Informazioni Generali Hardware
66
Vista Posteriore
66
Vista Dall'alto
66
Installare L'hardware
67
Assegnazione DI un Indirizzo IP
68
AXIS IP Utility: Telecamera Singola/Piccole Installazioni
69
AXIS Camera Management: Più Telecamere/Grandi Installazioni
70
Impostazione Della Password
72
Regolazione Dello Zoom E Della Messa a Fuoco
75
Altri Metodi DI Assegnazione Dell'indirizzo IP
78
AXIS Video Hosting System (AVHS)
78
Indicatori LED
82
Ripristino Delle Impostazioni Predefinite
82
Accesso Alla Telecamera da Internet
83
Ulteriori Informazioni
83
Medidas Preventivas
84
Sustitución de la Batería
84
Pasos para la Instalación
85
Contenido del Paquete
85
Presentación del Hardware
86
Vista Posterior
86
Vista Superior
86
Instalación del Hardware
87
Asigne una Dirección IP
88
AXIS IP Utility: para Cámaras Individuales O Instalaciones Pequeñas
89
AXIS Camera Management: para Varias Cámaras O Instalaciones Grandes
90
Detección Automática
90
Configure la Contraseña
92
Ajuste el Zoom y el Enfoque
95
Asistente de Enfoque
96
Otros Métodos para Configurar la Dirección IP
98
Conectores de la Unidad
100
Indicadores LED
102
Restablecimiento de Los Valores Iniciales
102
Acceso a la Cámara desde Internet
103
Más Información
103
