Axis Q60 Series Repainting Instructions

AXISQ60PTZNetworkCameraSeries
Repainttheproduct

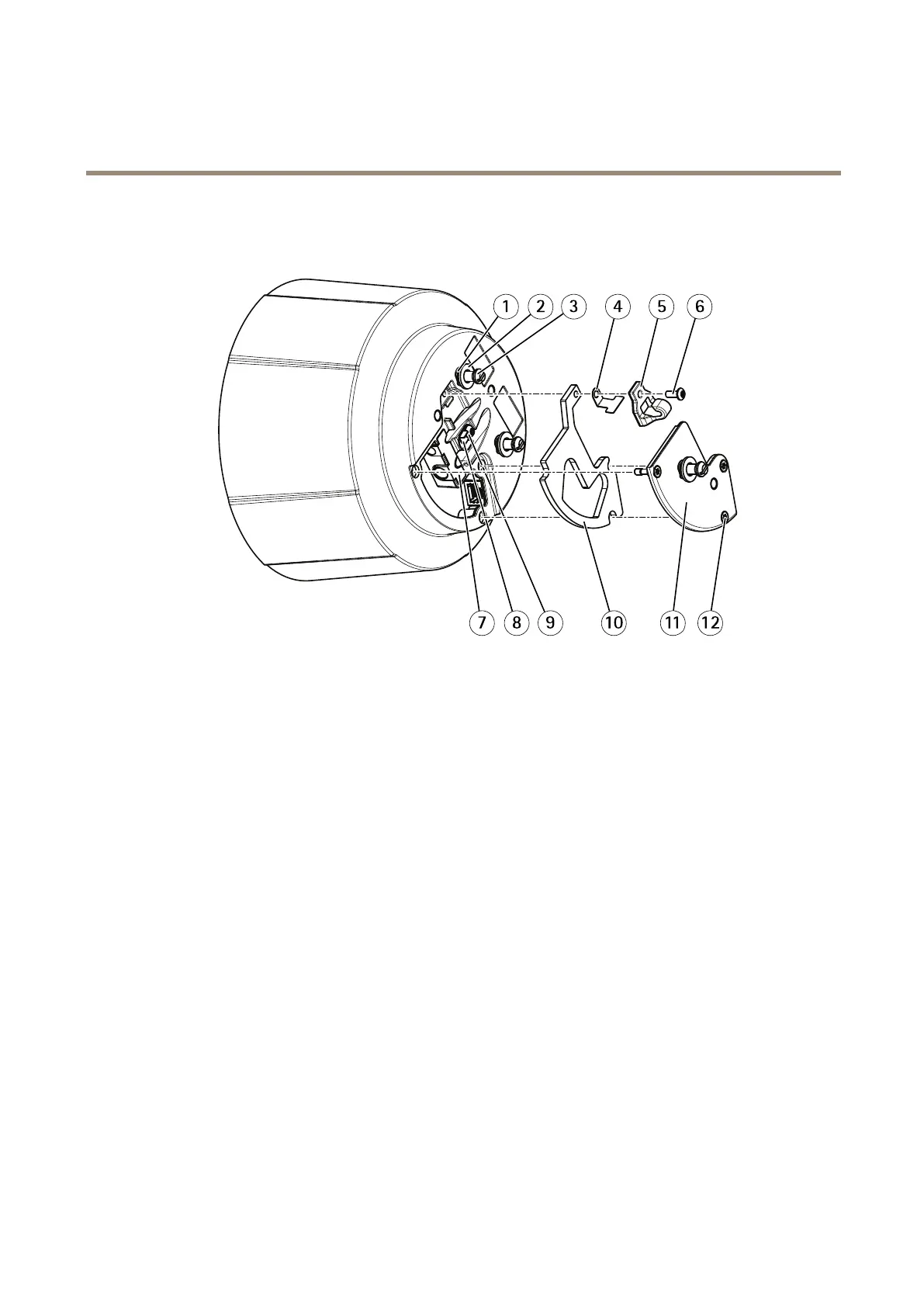

2.Loosenthethreescrewsthatholdthecameraassembly.
3.Liftupthecameraassemblyandremovetheconnectorfromthepowercircuitboard.
1
Wavespring
2
Washer
3
Bayonetscrew
4
Spring
5
Safetyhook
6
Screw
7
Cablegasket
8
Cableholder
9
Screw
10
Gasket
11
Lidassembly
12
Antilossscrew
4.Removethetwobayonetscrewswithwashersandwavesprings.
5.Removethescrew,thesafetyhook,andthespring.
6.Removethescrewandthetwocableholders.
7.Loosenthethreeantilossscrewsandremovethelidassemblyandthegasket.
8.Removethecablegasket.
4
