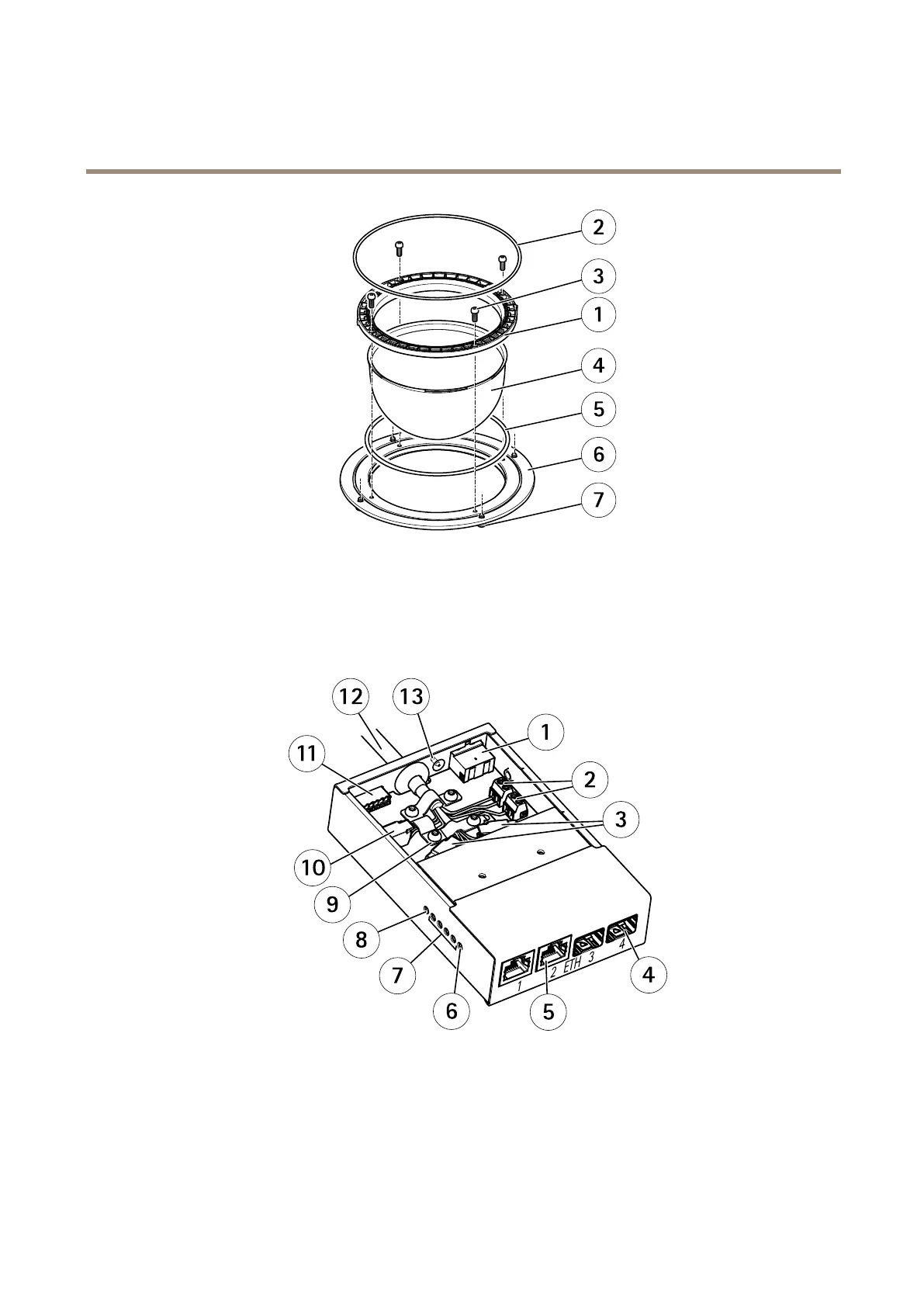

AXISQ6045-SMkIIPTZDomeNetworkCamera
Hardwareoverview
1
Domeattachmentring
2
O-ring
3
DomebracketscrewT20(4x)
4
Dome
5
O-ring
6
Domering
7
DomeringscrewT25(4x)
1
Powerconnector(DCinput)
2
Powerconnector(DCoutput)
3
Networkconnector(internal)
4
NetworkconnectorSFP(external)(2x)
5
NetworkconnectorRJ45(external)(2x)
6
CameranetworkLEDindicator
7
NetworkLEDindicator(4x)
8
