AXISQ6114-EPTZDomeNetworkCamera
HardwareOverview
HardwareOverview
NO NO
NO
TICE TICE
TICE
Makesurethedomeisattachedinoperationmode,otherwisefocusmaybeaffected.

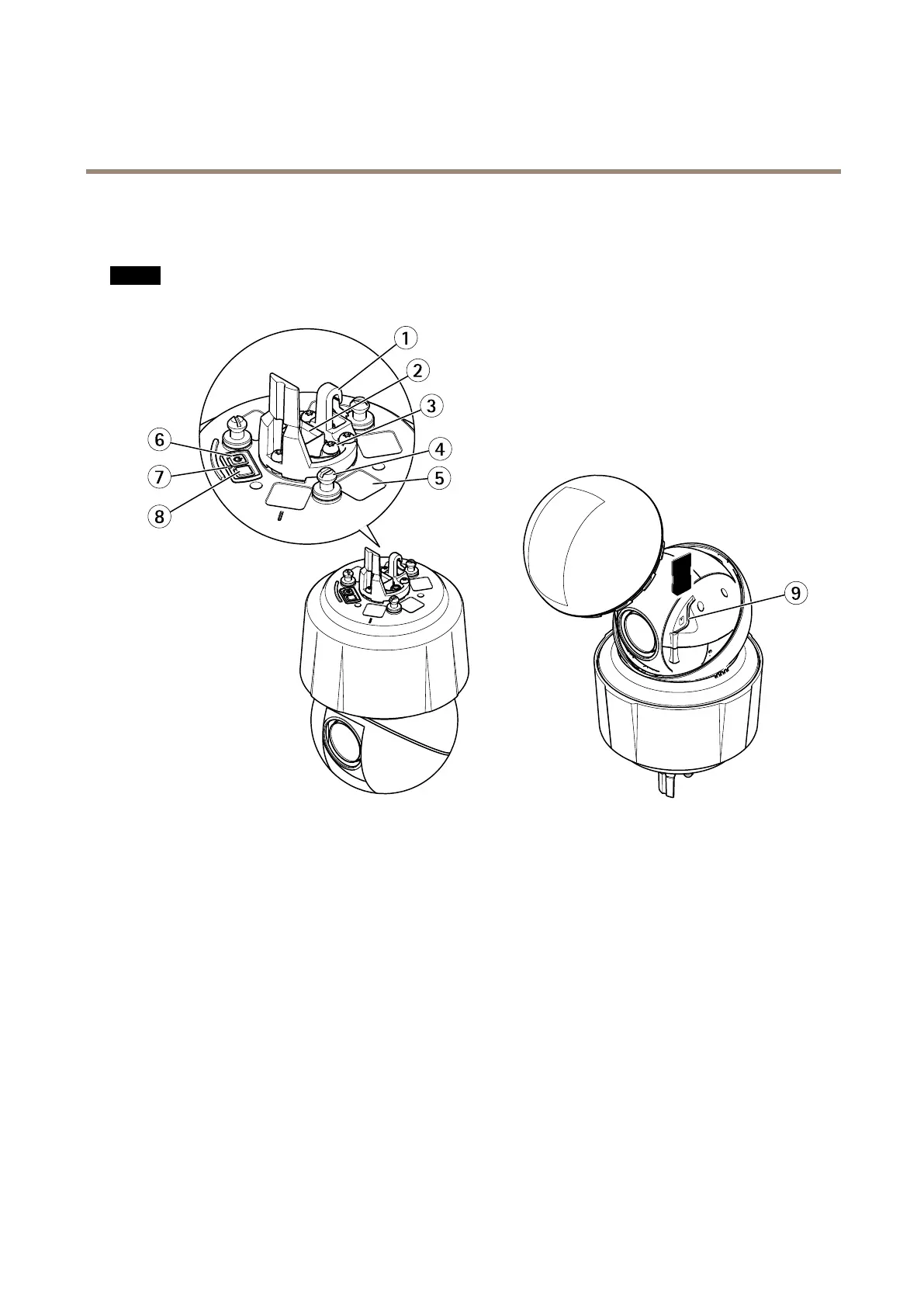

1
Hookforsafetywire
2
Networkconnector(HighPoE)
3
Groundscrew
4
Unitholder(3x)
5
Partnumber(P/N)&Serialnumber(S/N)
6
Powerbutton
7
StatusLEDindicator
8
Controlbutton
9
SDcardslot
ConnectorsandButtons
Fortechnicalspecications,seepage59.
NetworkConnector
RJ45Push-pullConnector(IP66)withHighPoweroverEthernet(HighPoE).
