AXISQ7401VideoEncoder
HardwareOverview

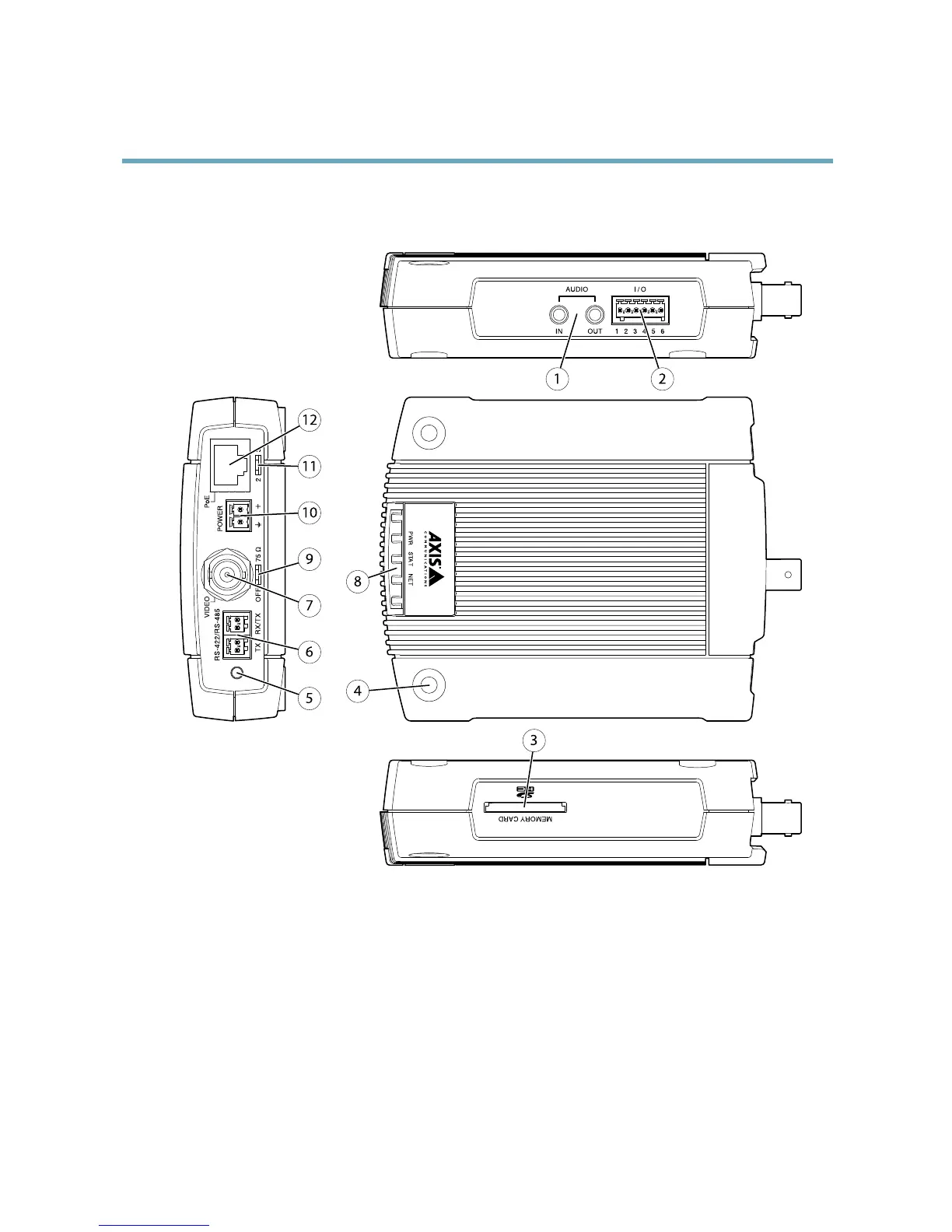

HardwareOverview
1 2
3
4
5
6
7
8
9
10
11
12
1.
Audioin/out
2.
I/Oconnector
3.
SDcardslot
4.
Mountinghole
5.
Controlbutton
6.
RS-485/RS-422connector
7.
BNCconnector
8.
LEDindicatorsforpower,status,network
9.
75Ohmterminationswitch
10.
Powerconnector
11.
PoEswitchclass2and3
12.
Networkconnector(PoE)
