AXIS
Q87
Bispectral
PTZ
Network
Camera
Series

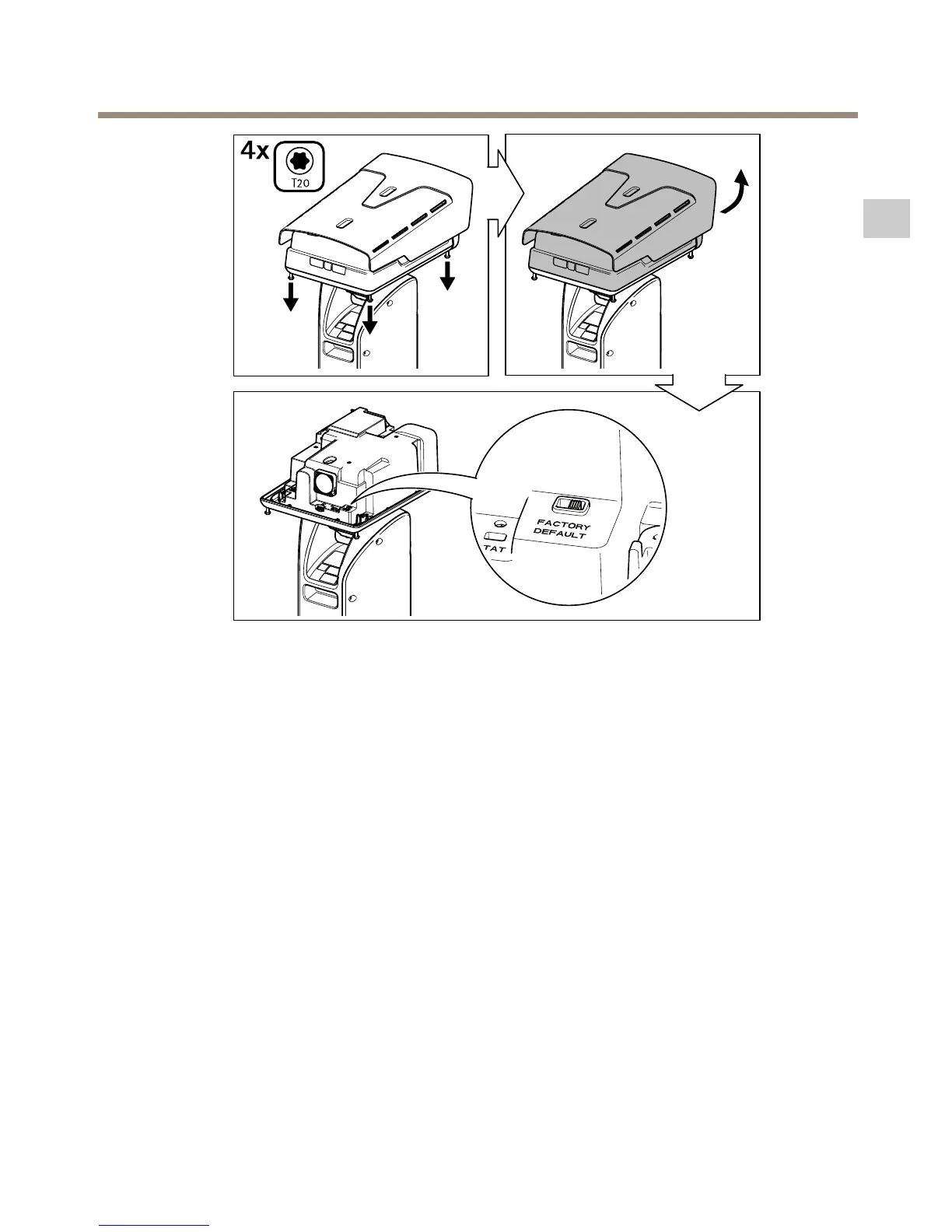

1.
Disconnect
power
from
the
product.
2.
Loosen
the
four
top
cover
screws
and
remove
the
top
cover
.
3.
Change
the
position
of
the
Factory
default
switch.
4.
Replace
the
top
cover
and
tighten
the
screws
(torque
2.0
Nm).
5.
Reconnect
power
to
the
product.
Y
ou
can
also
reset
parameters
to
factory
default
through
the
product’s
webpages.
Go
to
Settings
>
System
>
Maintenance
and
click
Default
.
25
EN
24
26
Table of Contents
Installation Guide
1
Safety Information
7
Hazard Levels
7
Other Message Levels
7
Safety Instructions
8
Package Contents
10
Hardware Overview
11
How to Install the Product
13
Mount the Base Unit
13
Route the Cables
15
Install the Network Link
21
Connect the Cables
22
How to Adjust the Weathershield
23
How to Access the Product
23
Reset to Factory Default Settings
24
Further Information
26
Optional Accessories
26
Warranty Information
26
Specifications
27
SD Card Slot
27
Network Connector
27
Power Connector
29
Cable Thickness
30
Operating Conditions
30
Power Consumption
30
