Setting Up the Saw
20
Fig 43
Hex screw
2) Reposition the fence up against the blade, check the
magnifying lens indicator lines up with ‘0’ on the fence rail scale.
If the scale is out of alignment, see fig 44 loosen the fixing bolts
beneath the fence rail (3) and tap the fence rail
until the indicator is in line, tighten the rail, see fig 45-46.

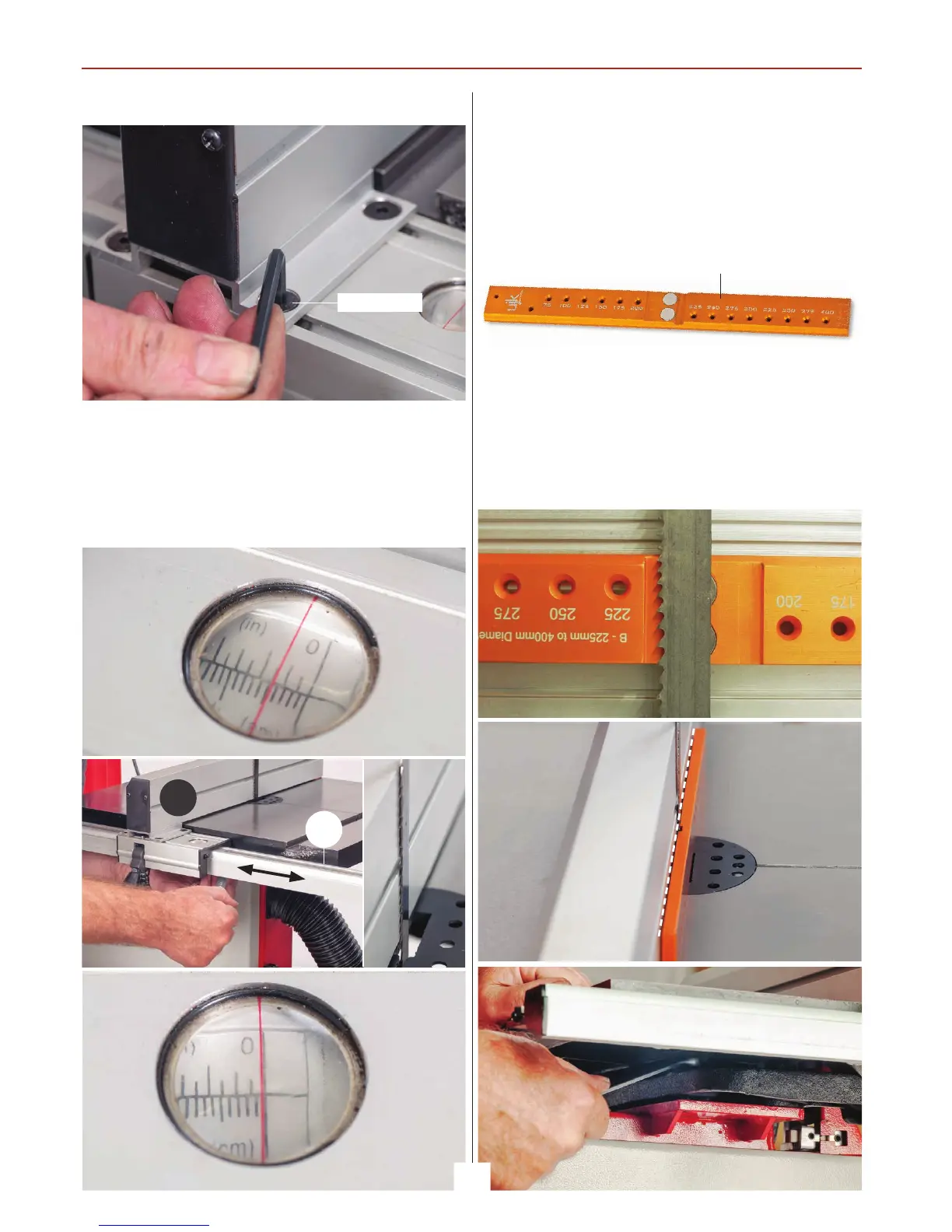

Fig 44-45-46
3
4
3) To make sure the fence is perfectly square to the blade we
recommend using our unique bandsaw blade aligning tool,
called the Bandsaw Buddy, see our website for details. The
Bandsaw Buddy allows you to check the alignment of the
bandsaw blade to the face of the fence. Most other checks only
require the use of a combination or engineer’s square. Truing
the fence to the blade is tricky. The Bandsaw Buddy has two
rare earth magnets which hold it firmly on the blade, see fig 47.
Fig 47
Fig 48-49-50
Code 101807
4) Place the Bandsaw Buddy on the blade as shown in fig 48.
Move the fence up close to the alignment tool, lock in place
check the fence face is aligned with the alignment tool, see
fig 49. If adjustment is required loosen the four securing nuts
beneath the table, adjust the table until correct, see fig 50.
Secure the table place.
