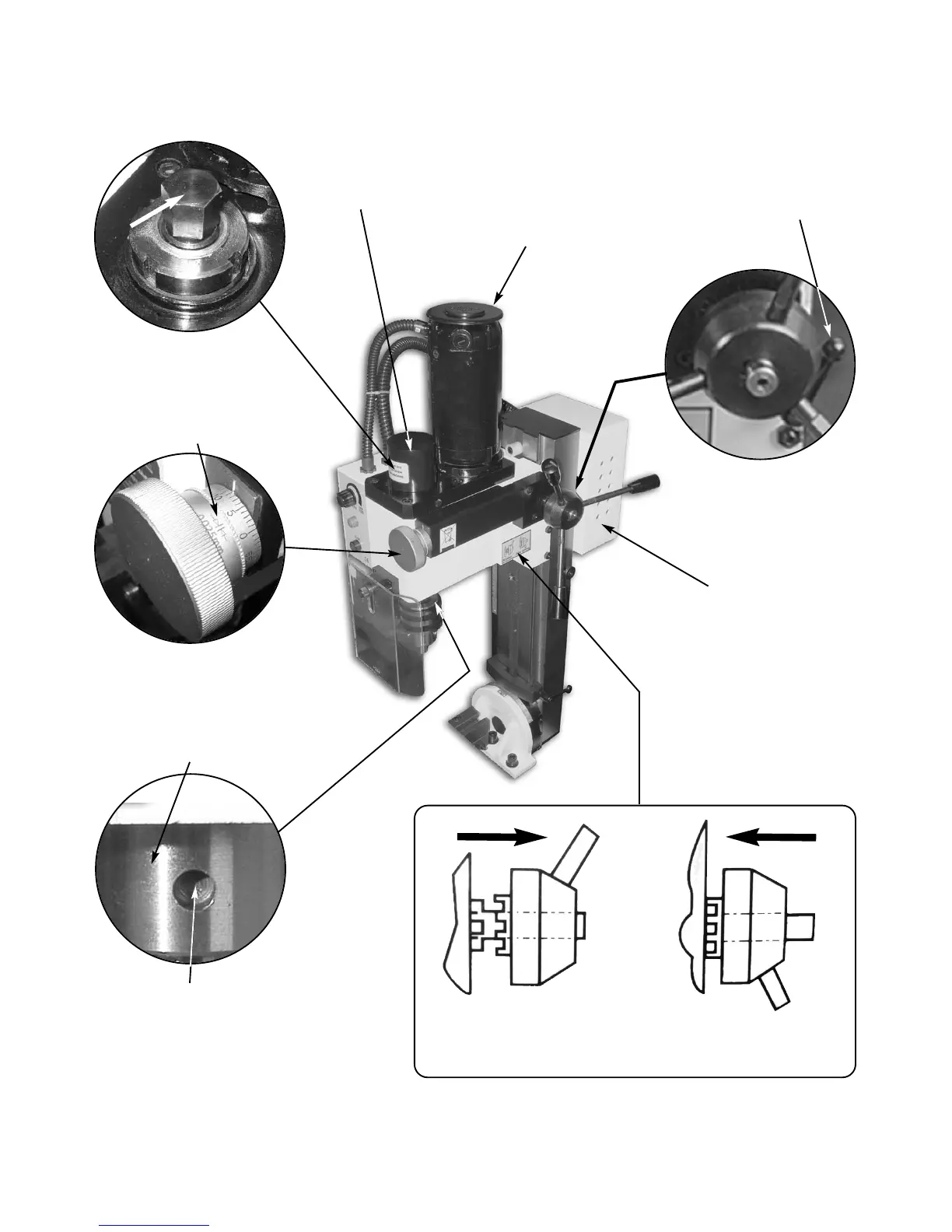

MACHINE ILLUSTRATION OF THE MILL
Draw bar cover
Circuit control box
Motor
Head clamp
Top of draw bar
Fine feed thimble
Fine feed control
Quill hold pocket
To engage the fine feed control push the tri-lever assembly
in until it meshes with the bevel gear. Pulling the tri-lever
back will disen gage the fine feed control.
Spindle
NORMAL
FINE FEED
