ASSEMBLY
12

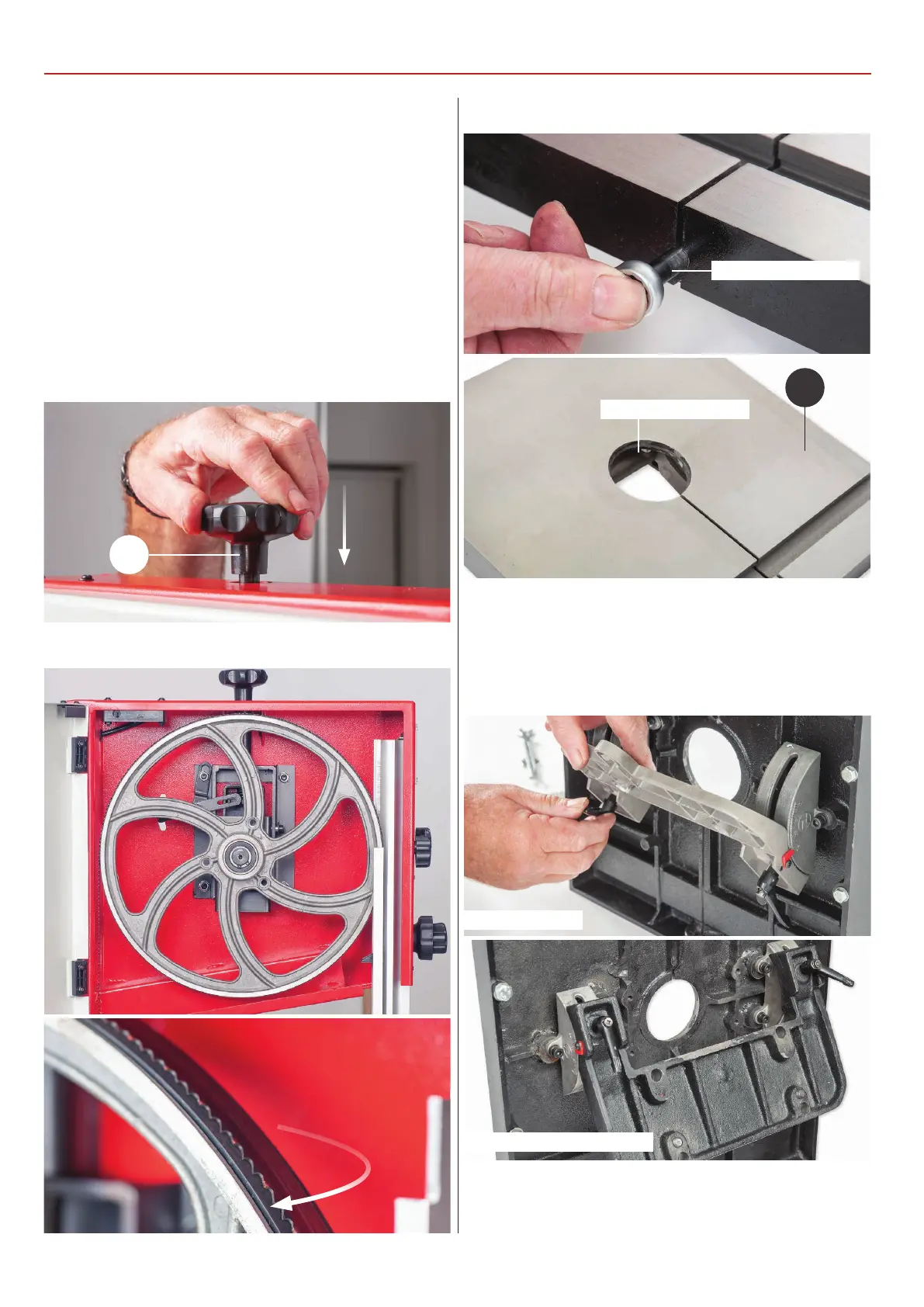

Mounting the Table
Locate the blade tensioning knob (6) and insert it down over
the control shaft ,on top of the bandsaw housing, see fig 25.
1) The saw table can be fitted without removing the blade.
However, if you would feel more comfortable not having to
manoeuvre the table around the blade, remove the blade by
opening the top and bottom covers, release the tension on
the blade by backing off the tensioning wheel, see fig 26-27.
NOTE: You will need to refer back to pages 8-11 for
tracking and setting the blade guides.
Fig 25
6
Fig 26-27
2) Locate the cast iron table (2), remove the table stabilising
bolt and the table insert, see fig 28-29. Angle the tilt quadrant
assemblies base by loosening the two lift and shift handles
beneath the table in readiness for mounting, see fig 30-31.
Fig 28-29
Table stabilising bolt
Table insert removed
Fig 30-31
3) Remove the bolts, washers/spring washers from the
bandsaws mounting plate and place safely aside, see fig 32-33.
Lift the table (2), slide the blade through the table’s slot and
2
Model AW2305B, AC2606B
Model AW1950B
