Solenoid valve controller HE 5721
13
Solenoid valve controller
4 Solenoid valve controller

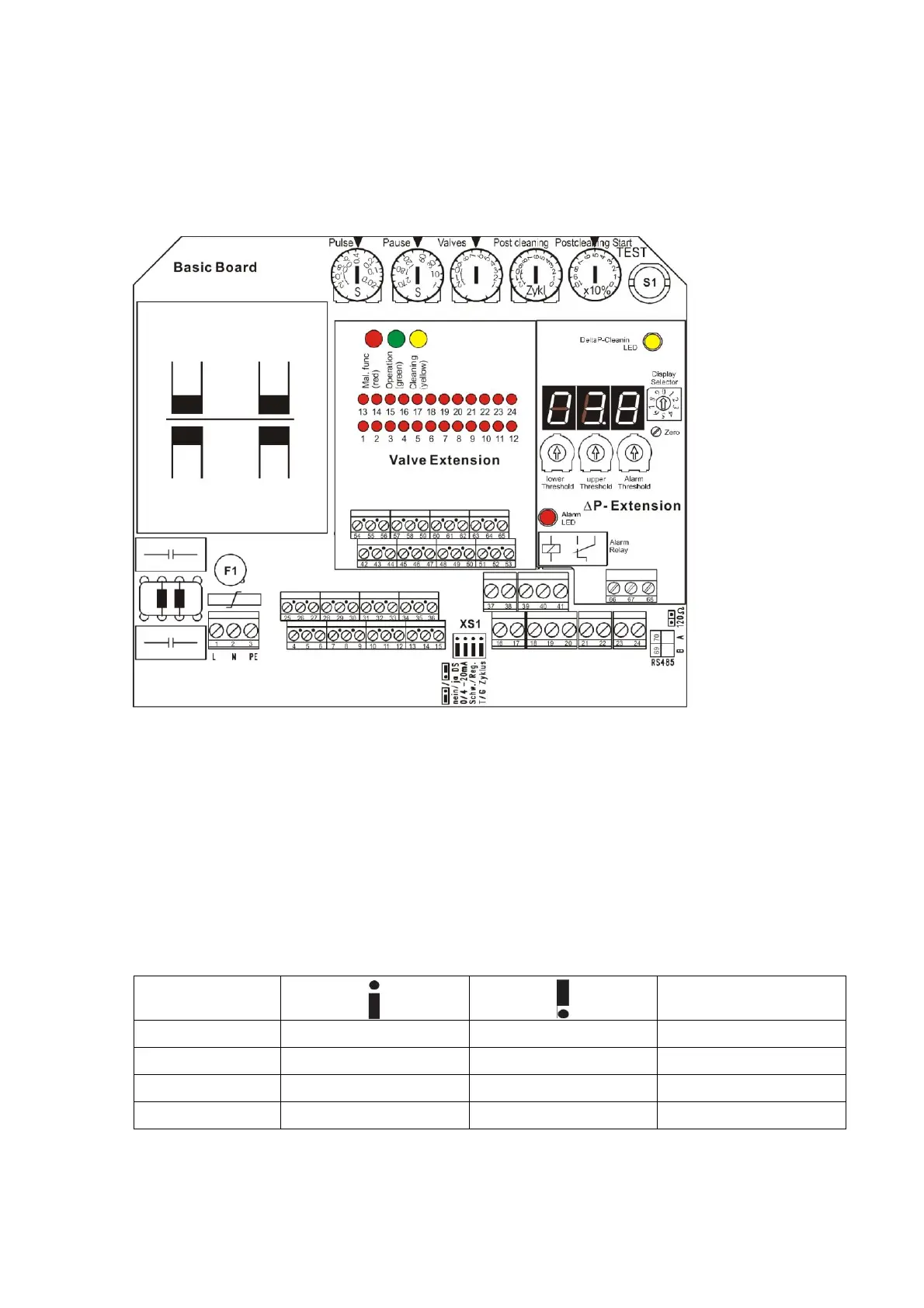

4.1 Operating and display elements
 Potentiometer: The time setting potentiometers have a logarithmical scale division.
Pulse time: 0.02 ... 1.2 s
Pause time: 1... 270 s
Number of valves: 1...12 valves,
12 + 1...12 valves if the valve extension board is used.
See the adjusting aids for integer parameters.
Post-cleaning start: 0... 100% of the measuring range ot the p-value.

Jumper XS1:
Legend
Pressure switch
No
yes
nein/ja DS
Analog input
0…20 mA
4-20 mA
0 / 4-20 mA
Type of cleaning
Threshold
Pause control
Schw./ Reg.
Cleaning cycle
Partial cycle
Total cycle
T / G Zyklus
Note: Changes of the jumper configuration become effective after a restart of the
device!
