Solenoid valve controller HE 5721

∆p-Extension (Option)

5.2 Outputs



Relay: Contact rating: 250 V AC / 5 A

1 Change-over-contact for



P-alarm

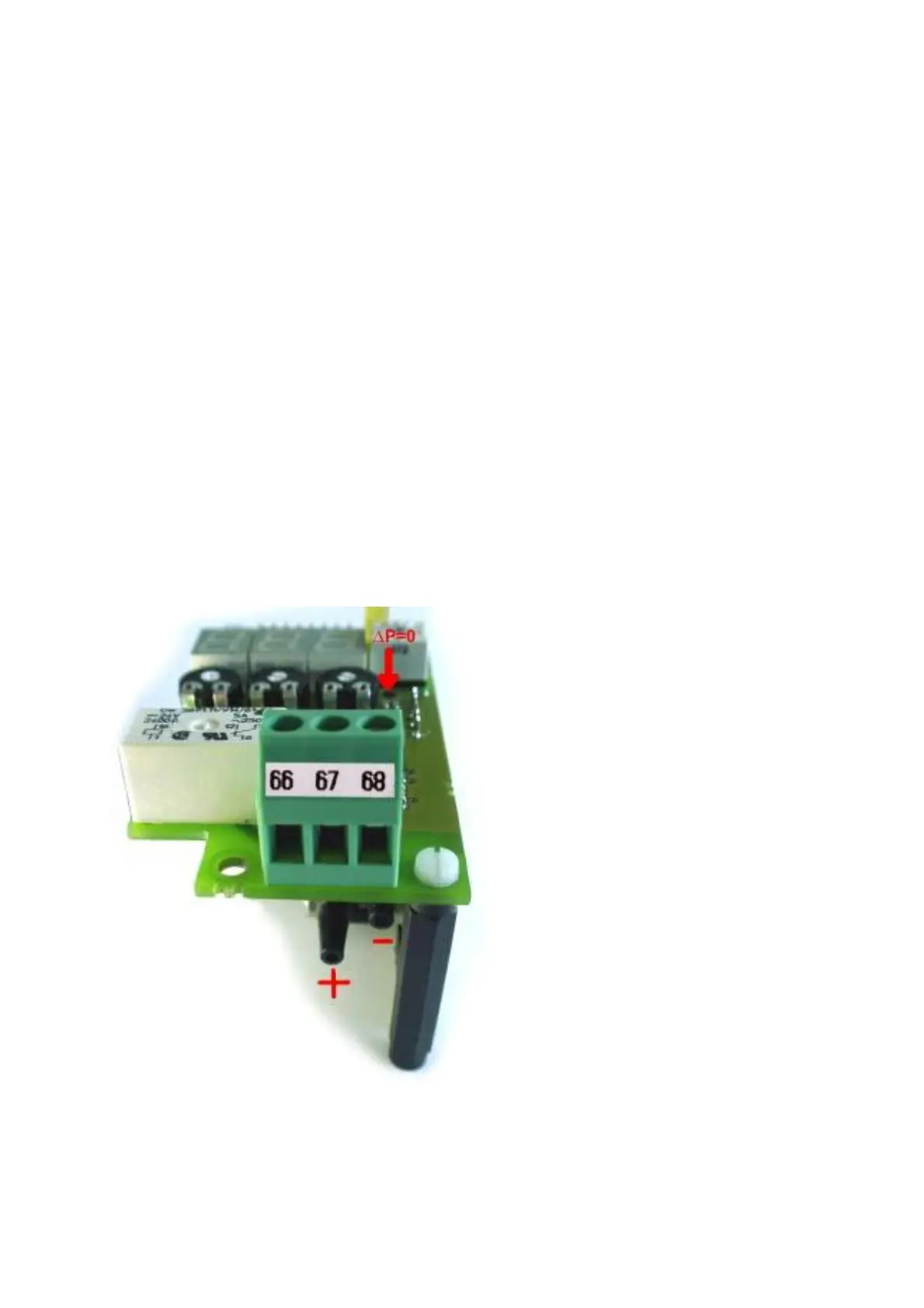

Terminal 66 = NC- contact

Terminal 67 = NO- contact

Terminal 68 = Change-over-contact

5.3

∆

p-Adjustment

In case of a zero drift, the display can be set to zero with the 0-point potentiometer (below the

board). Adjustment should be carried out only when no differential pressure is present, i. e. if no

measuring hoses are connected. For a better accuracy of the adjustment, check the current output

0(4) to 20 mA at terminals 23+ and 24-.

Adjustment should be carried out at operational temperature as the sensor can present a

temperature drift of up to ± 1 mbar.

Pressure-

sensor
