Azbil FL7M Series User Manual

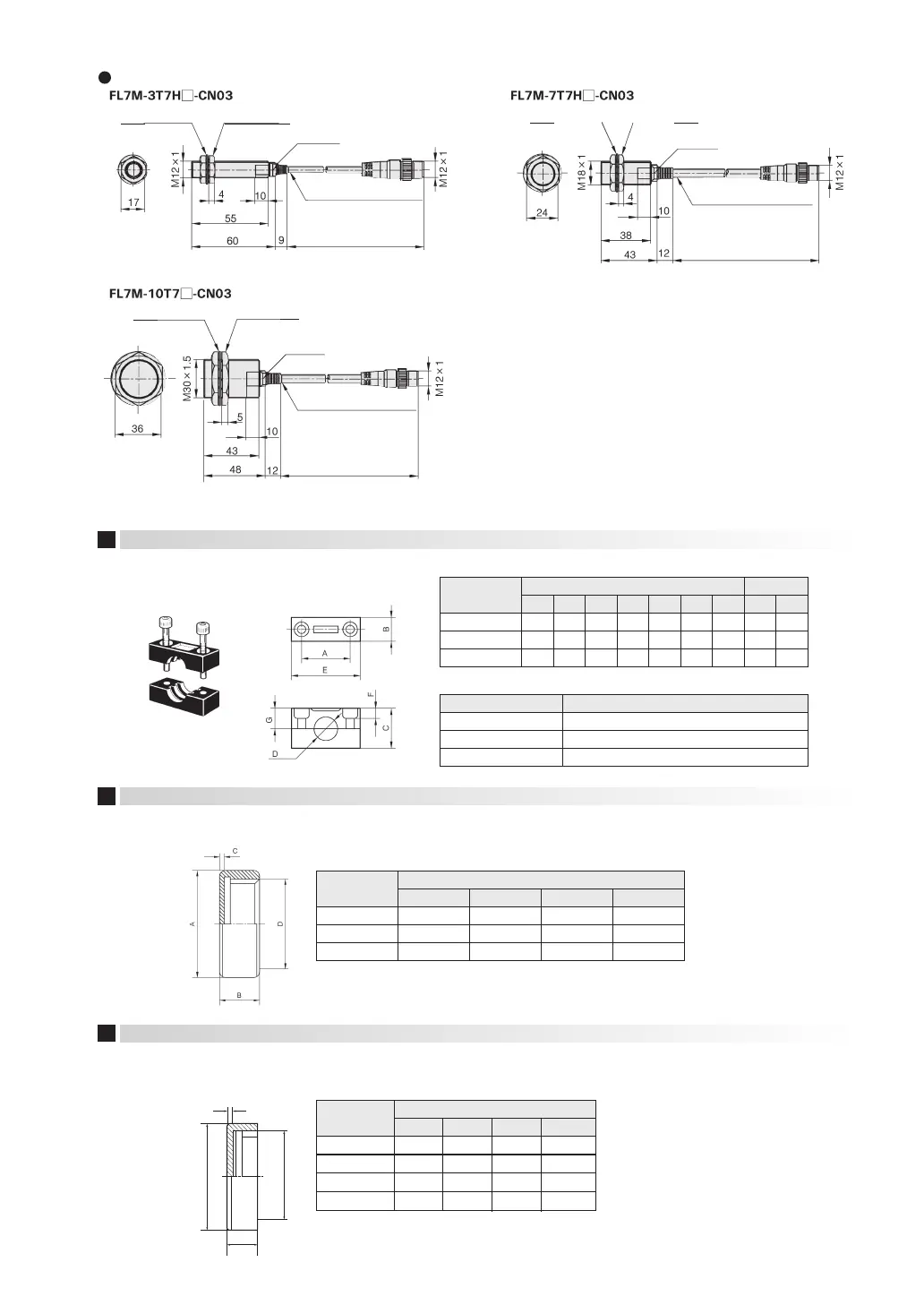

Mounting brackets are made of polyacetal resin.
Two screws and two washers are provided for each bracket.
Protective covers made of polyacetal resin are available for shielded
models. Select a model according to the switch's external dimensions.
Allowable tightening torque of bracket screws
MOUNTING BRACKET
(sold separately)
PROTECTIVE COVER
(sold separately)
Catalog listing
Dimensions (mm) Screw size
FL-PA112
FL-PA118
FL-PA130
FL-PA112
FL-PA118
FL-PA130
A
25
30/32
40/45
B
12
15
15
C
20
30
50
D
12dia.
18dia.
30dia.
E
36
45
60
F
6
7.5
10
G
9.5
14.5
24.5
Dia.
M4
M5
M5
Neck
25
35
55
Catalog listing
Dimensions (mm)
FL-PA12
FL-PA18
FL-PA30
A
14dia.
21dia.
33dia.
C
0.5
0.5
1.5
D
M12x1
M18x1
M30x1.5
Catalog listing
Max. torque (N
·
m)
0.98
1.5
1.5
(unit: mm)
Preleaded connector type
Toothed washer Hexagonal nut
Indicator
lamp
Vinyl-insulated cable (PVC)
300 min.
Toothed washer Hexagonal nut
Indicator
lamp
Vinyl-insulated cable (PVC)
300 min.
Toothed washer Hexagonal nut
Indicator
lamp
Vinyl-insulated cable (PVC)
300 min.
B
5
6
8
FL-PA118 and FL-PA130 screw holes are oblong.
Vinyl-insulated cable (oil-resistant: 0.3 mm
2
, 60/0.08 dia., 2-core)
dia. 4. Cap color: orange.
Vinyl-insulated cable (oil-resistant: 0.5 mm
2
, 45/0.12 dia., 2-core)
dia. 6. Cap color: orange.
Vinyl-insulated cable (oil-resistant: 0.5 mm
2
, 45/0.12 dia., 2-core)
dia. 6. Cap color: orange.
SPATTER-GUARDED PROTECTIVE COVER
(sold separately)
Catalog listing
Dimensions (mm)
FL-PA08W
FL-PA12W
FL-PA18W
FL-PA30W
10dia.
15dia.
22dia.
34dia.
5
5
6
8
0.5
0.7
0.7
1.5
M8x1
M12x1
M18x1
M30x1.5
C
B
A D
Spatter-guarded protective covers made of fluorine resin and designed
especially for shielded switches are available. Select a model according
to the switch's external dimensions.
A B C D
5
