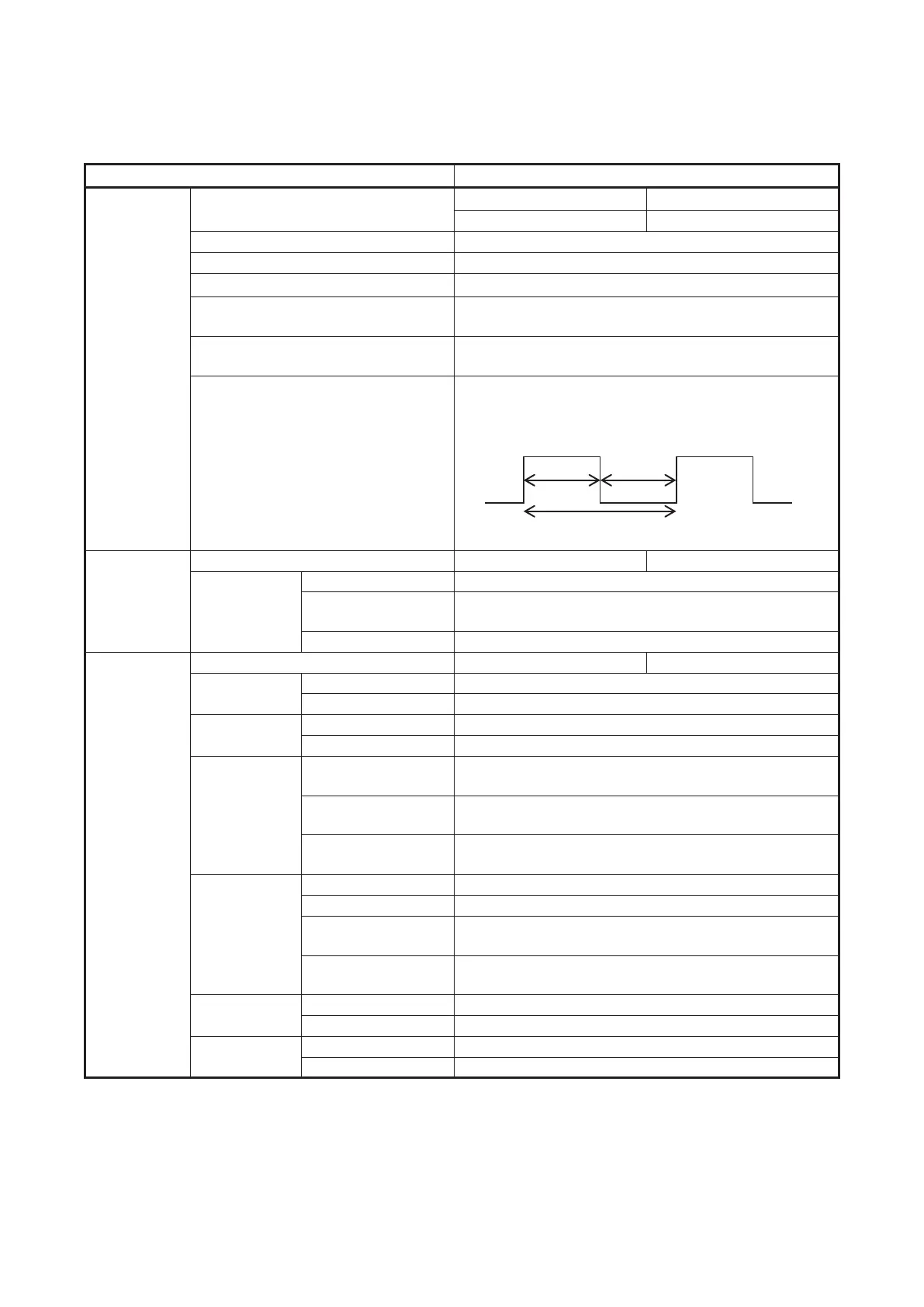

z Input/output specications
Item Specication
Digital input Number of inputs Model RJ -1101W16 00 16
Model RJ-1102W1600 8
Voltage 24 V DC typ.
Current 5 mA DC typ.
Connected device output type Dry contact or open collector
Dry contact Allowable ON contact resistance 100 Ω max.
Allowable OFF contact resistance 100 kΩ min.
Open collector Allowable ON residual voltage 3 V max.
Allowable OFF leakage current 500 μA max.
Pulse integration 10 Hz max.
Note: Digital input pulse integration requires a pulse width
and a pulse interval that satisfy the conditions shown
in the following gure.
Digital output Number of outputs Model RJ-1102W1600 8
Relay output Output type Relay N.O. (normally open) contact
Contact 24 V AC, 0.5 A max. (Max. inductive load: cosϕ = 0.4)
24 V DC, 0.5 A max.
Min. applicable load 5 V DC, 10 mA
Universal I/O Number of I/Os Model RJ-1103W0400 4
Voltage input* Input voltage range 0–10 V DC, 2–10 V DC, 0–5 V DC, 1–5 V DC
Input impedance 250 kΩ typ.
Current input* Input current range 4–20 mA DC
Input impedance 100 Ω typ.
Temperature
input
Input signal RTD (Pt100)
RTD (Pt1000)
Measuring range
(Pt100)
0–50 °C, 0–100 °C, 0–200 °C, -20–80 °C, -20–30 °C,
-50–100 °C, -100–50 °C
Measuring range
(Pt1000)
0–50 °C, 0–100 °C, -20–80 °C, -20–30 °C, -50–100 °C
Digital input Voltage/current 3.76 V DC typ., 1 mA DC typ.
Connectible load Dry contact or open collector
Dry contact Allowable ON contact resistance 100 Ω max.
Allowable OFF contact resistance 100 kΩ min.
Open collector Allowable ON residual voltage 1 V max.
Allowable OFF leakage current 100 μA max.
Voltage output Output voltage range 0–10 V DC, 2–10 V DC, 0–5 V DC, 1–5 V DC
Min. load resistance 10 kΩ min.
Current output Output current range 4–20 mA DC
Max. load resistance 500 Ω max.
* The number of inputs can be up to 2 for a terminal if an isolator is used.
Refer to the "Notes for wiring" in the "Wiring" section.
30 ms min.
30 ms min.
100 ms min.
