AB-7258
11
Mounting plate of Thermoplate
2 pan-head machine screws (M4 x 8)
of Thermoplate
Main unit of Thermoplate
(sold separately)
2 pan-head machine screws (M3 x 5)
of Thermoplate
Outlet box cover (JIS C8340
with 83.5 mm mounting dimension,
commercially available)
dapte
(sold separately)
2 flat-heat tapping screws (M2.6 x 8)
of the adapte
r
Base of Neostat
2 pan-head machine screws
(M4 x 6) of the adapte
r
Main unit screw (M3)
preassembled with the main unit
Main unit of Neostat
Cover of Neostat

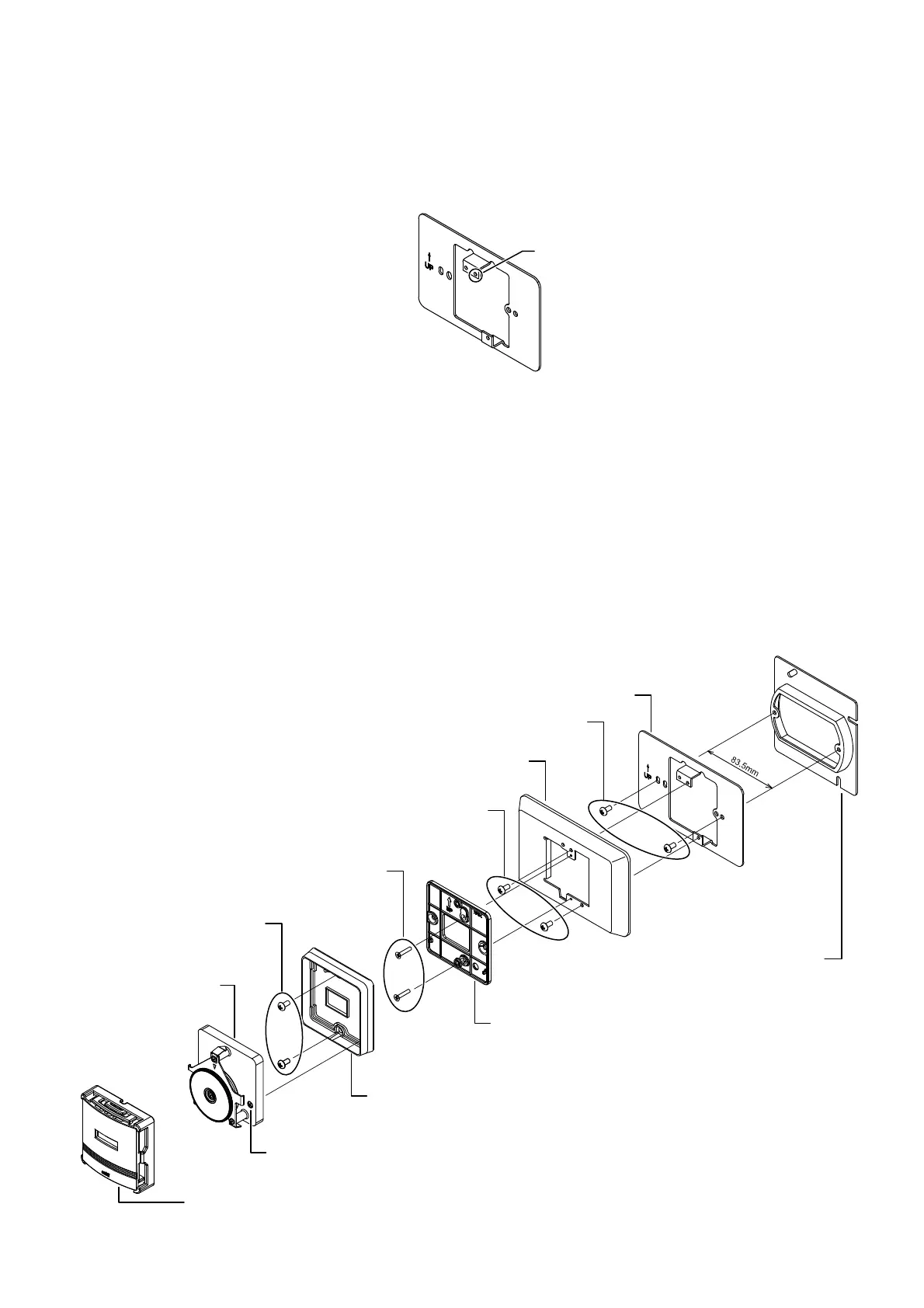

Installation steps: Neostat on Thermoplate with the adapter
1) Attach the mounting plate of Thermoplate to the outlet box cover (JIS C8340:1999 Boxes and box covers for rigid metal
conduits (mounting dimension: 83.5 mm)) on the mounting surface with two pan-head machine screws (M4 x 8) supplied
with Thermoplate.
2) Attach the main unit of Thermoplate to its mounting plate with two pan-head machine screws (M3 x 5) supplied with
Thermoplate.
Note: Do not use the other hole for upper screw-mount.
Figure 7. Mounting plate of Thermoplate
3) Attach the adapter to Thermplate so that the arrow (indicated with "UP") points upwards, using two flat-head tapping screws
(M2.6 x 8) supplied with Thermoplate.
4) Remove the cover from Neostat. (See the Cover removal section.)
5) Unscrew the Neostat main unit screw. Then, hold and lift the guide to remove the main unit from the base.
Do not hold the setting dial to remove the main unit.
6) Attach the Neostat base to the adapter so that the arrow (indicated with "UP") points upwards, using two pan-head machine
screws (M4 x 6) supplied with the adapter. (Tightening torque: 78.5 Nꞏcm)
Note: Do not use pan-heat machine screw (M4 x 10) supplied with Neostat.
7) Wire Neostat. (See the Wiring section.)
8) Attach the Neostat main unit to the base, using the main unit screw (M3) preassembled with the Neostat main unit.
(Tightening torque: 39.2 N cm)
9) Attach the Neostat cover to the main unit. (See the Cover removal section.)
Figure 8. Installation: Neostat on Thermoplate
Use this hole for upper screw-mount.
