EDGEWINDER OWNER’S MANUAL PAGE 26
05-2017
TECHNICAL AND CONSUMER INFORMATION
BATTERY CONNECTIONS FOR ELECTRIC STARTER
Use a 12-volt battery with an ampere-hour rating of at least 18 Ah. Be careful not to connect the
battery in reverse polarity, as this will short circuit the battery charging system. Always connect the
positive (+) battery cable to the battery terminal before connecting the negative (–) battery cable, so
your tools cannot cause a short circuit if they touch a grounded part while tightening the positive (+)
battery cable end.
A battery can explode if you do not follow the correct procedure, seriously
injuring yourself and anyone nearby. Keep all sparks, open flames, and smoking materials away from
the battery.

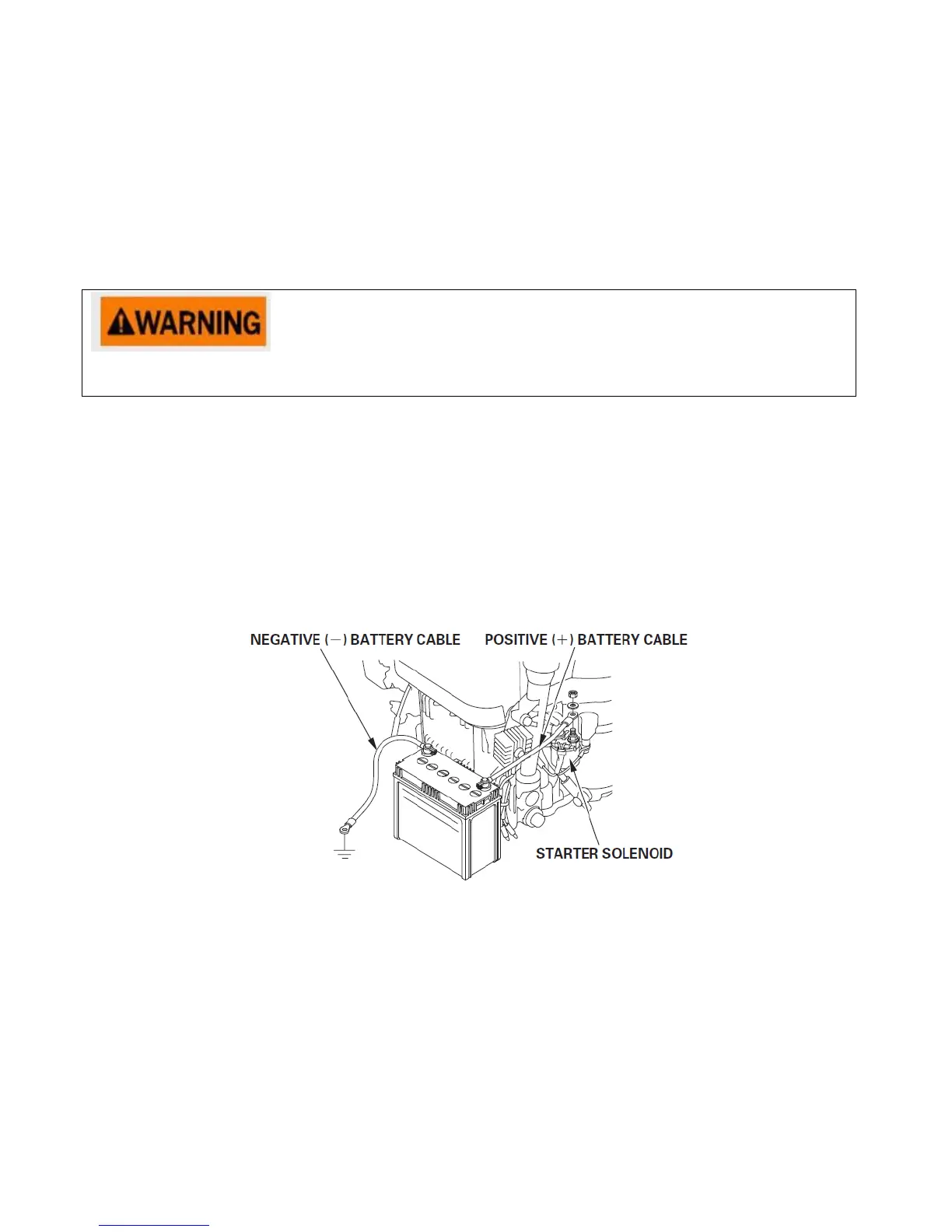

1.) Connect the battery positive (+) cable to the starter solenoid terminal as shown.
2.) Connect the battery negative (–) cable to an engine mounting bolt, frame bolt, or other good
engine ground connection.
3.) Connect the battery positive (+) cable to the battery positive (+) terminal as shown.
4.) Connect the battery negative (–) cable to the battery negative (–) terminal as shown.
5.) Coat the terminals and cable ends with grease.
