User Manual
Page 34 of 88

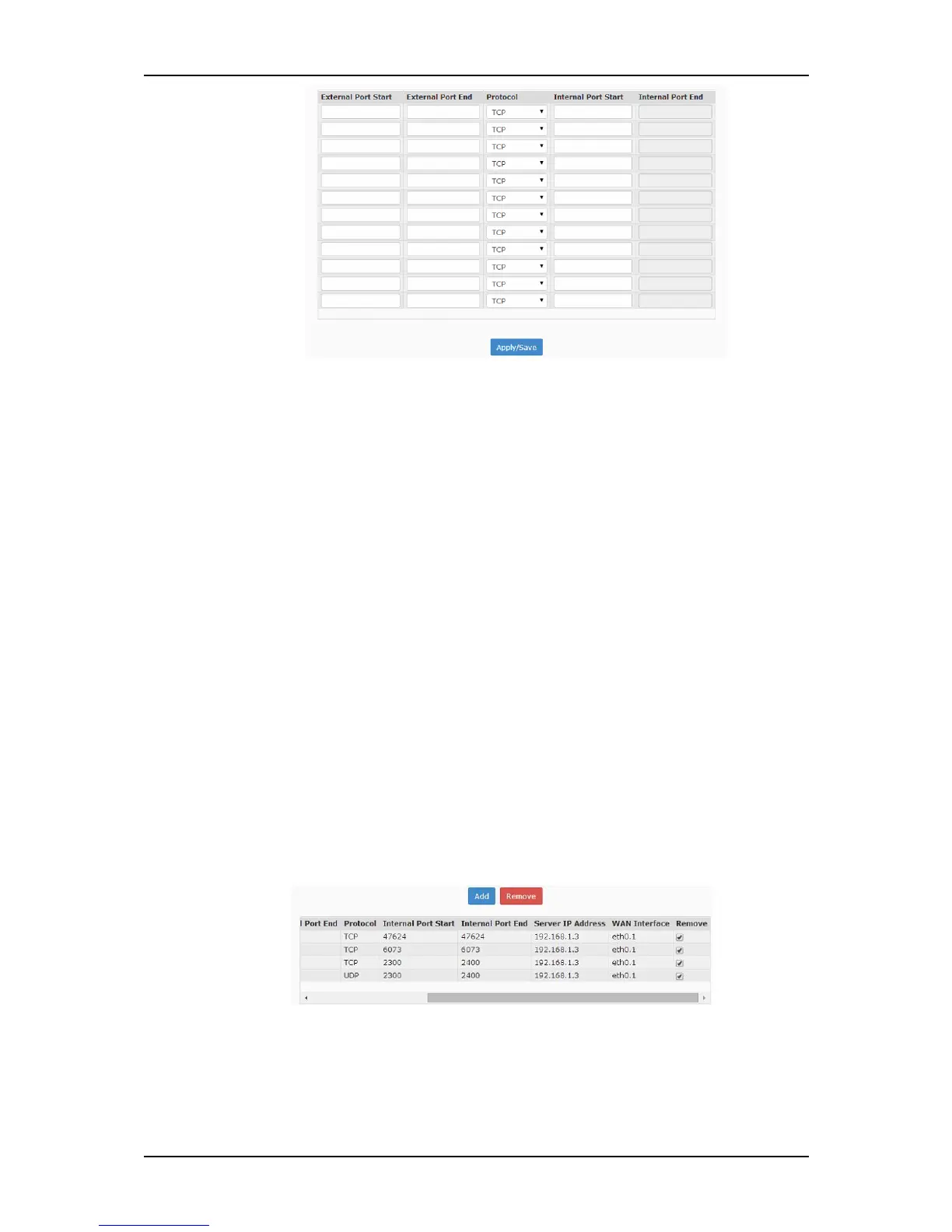

2. Determine the interface that would be used.
3. You can select an service on the Select a Service drop down list (if
the application needed is present).
4. If the application needed is not present on the dropdown list, you
may have to select Custom Server. Enter the preferred application
name on the Custom Server field.
5. Enter the External Port Start and External Port End values and
determine the Protocol to be implemented.
NOTE: The External Port Start/End field would immediately be used
as the Internal Port Start/End field. You may also have to search for
your application’s corresponding port ranges.
6. Click Save/Apply button to apply changes.
To remove a port forwarded service:
1. Tick the checkbox of the corresponding service that you wish to
remove.
2. Click Remove to remove the port forwarded service.
